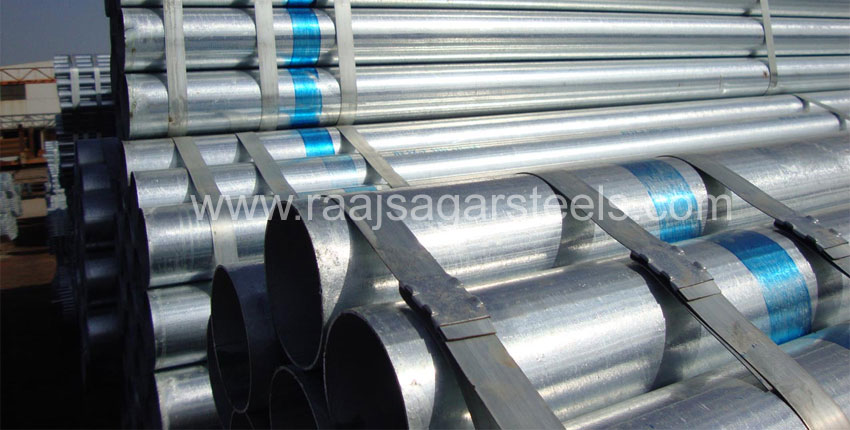

Stainless Steel 316 Tube
Raajsagar Steels Export SS Tube to More Than 50 Countries - large selection of 316/316L Stainless Steel Tube/316 Welded & Seamless Tubing Suppliers India316 stainless steel perforated tube / round tube / 316 ss seamless tube / rectangular tube tubing wall thickness / 16 ss tube sizes / 316 ss tube specification dimensions properties, tube 25mm, welded tube heavy wall tubing, 316 stainless steel tubing weight and working pressure
ASTM A269 TP316 Stainless Steel Tube Supplier
Stainless Steel Tubing or Tubular Stock Products
ASTM A269 TP316 Stainless Steel Tube Supplier
Stainless steel tubing is our specialty at Raajsagar Steels. We maintain one of the nation's largest and most diversified inventories of stainless steel tubing, including round, square and rectangular models. Our ornamental tubing is available in a variety of sizes and can be cut and polished to your specifications. We also stock welded & seamless pressure tubing. Raajsagar Steels offers a wide range of stainless steel tubing products including type 304 and type 316 stainless steel.
316 Stainless Steel Characteristics
Type 316 stainless steel tubing is similar to 304, but with the addition of molybdenum, which improves the alloys corrosion resistance. The austenitic structure allows excellent toughness, even down to extremely low temperatures. These grades have excellent weldability, with or without the addition of filler metal. 316 / 316L stainless tube is available as round, square or rectangular shapes. It is available as welded and seamless. It contains additional molybdenum and nickel than 304 stainless, which increases corrosion resistance of the metal. Decreased weldability is exhibited in 316L alloys due to increased carbon in the alloy. It is used for tube in more aggressive environments than 304 tube.
APPLICATIONS
316 / 316L tubing is used mainly as seamless for pressure operations in extremely corrosive environments, such as acid processing and waste treatment equipment and salt water marine applications. Welded tube is used for structural applications such as handrails, machine supports for processing equipment and architectural supports.
316 / 316L STAINLESS STEEL PIPE
These grades of austenitic stainless steels are similar to 304 and 304L, but with the addition of molybdenum. The addition of molybdenum improves the alloys corrosion resistance, particularly with higher resistance to pitting and crevice corrosion in chloride environments. The austenitic structure allows excellent toughness, even down to cryogenic temperatures. These grades have excellent weld-ability, with or without the addition of filler metal.
Stock Size Range and Specifications:
Seamless product
NPS:1/8” through 24” Schedules:5, 10S, 10, 30, 40S, 40, 80, 80SSpecifications: ASTM A312, ASME SA312
Welded product
NPS:1/8” through 8” Schedules:10, 40, 80, 160, XXHSpecifications: ASTM A312, ASME SA312
Who we are?
- 316 Stainless Steel Welded Tube Manufacturer in India
- SS 316 Seamless Tube Supplier in India
- Cold Drawn Stainless Steel 316 Tube Exporter in India
- 316 Stainless Steel Coiled Tubing Distributor
- Stainless Steel 316 Heat Exchanger Tubes Traders in India
- SS 316 Hydraulic Tubing Stockist in India
- Stainless Steel 316 Heater Tube Stockholder in India
- 316 Stainless Steel Instrumentation Tubes Wholesaler in india
- Stainless Steel 316 Polished Tubes Importer in India
- 316 Stainless Steel Exhaust Tubing Manufacturer in India
316 Stainless Steel Tubes Specification :
| Specifications | : | ASTM A/ASME SA269 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/8″NB TO 30″NB IN |
| Seamless 316 Tubes | : | 1/2" NB - 24" NB |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Specialized in | : | Large Diameter Size |
| Length | : | Single Random, Double Random & Cut Length. |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| End | : | Plain End, Beveled End, Treaded |
ASTM A269 TP316 SS Tubes Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 316 | S31600 | 1.4401 / 1.4436 | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | SUS 316 | 316S31 / 316S33 | - |
UNS S31600 SS Tube Chemical Composition
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
|---|---|---|---|---|---|---|---|---|---|---|
| SS 316 | min. | - | 10.0 | - | - | - | - | - | 16.0 | 2.00 |
| max. | 18.0 | 14.0 | 0.75 | 0.10 | 0.03 | 2.00 | 0.045 | 18.0 | 3.00 | |
SS WERKSTOFF NR. 1.4436 Tube Mechanical Properties
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316 | 515 | 40 | 205 | 95 | 217 |
Types Of Stainless Steel 316 Tube
| ASTM A269 TP316 Tube | ASTM A269 TP316 Seamless Tube | ASTM A269 TP316 Welded Tube |
| ASTM A269 TP316 Protection Tube | ASTM A269 TP316 Cold Drawn Seamless Tube | ASTM A269 TP316 Extruded Seamless Tube |
| ASTM A269 TP316 Round Tube | ASTM A269 TP316 Square Tube | ASTM A269 TP316 Rectangular Tube |
Types of SS 316 Tube
 |  |  |  |
| Stainless Steel 316 Square Tube | Stainless Steel 316 Cold Drawn Tube | Stainless Steel 316 Hot Rolled Tube | Stainless Steel 316 Round Tube |
 |  |  |  |
| Stainless Steel 316 Boiler Tube | Stainless Steel 316 Coiled Tube | Stainless Steel 316 Rectangular Tube | Stainless Steel 316 Spiral Tube |
 |  |  |  |
| Stainless Steel 316 Precision Tube | Stainless Steel 316 Capillary Tube | Stainless Steel 316 Hot finished Tube | Stainless Steel 316 Heat Exchanger Tube |
Ready Stock Available:Top 10 Manufacturers of ASTM A269 Stainless Steel Tube
ASTM A269 316 Stainless Steel Tube Price List
316 Seamless Stainless Steel
US $1-5 / Kilogram (FOB Price)
20 years Factory experience 316 Stainless Steel Welded Tube Diameter 20x0.5 Price List
US $4-4.5 / Kilogram (FOB Price)
supplier prime quality 304 316 high precision stainless steel pipes / tubes Cost
US $1650-5000 / Metric Ton (FOB Price)
