Raaj Sagar Steel is an Indian steel company, supplying quality steel to businesses in Mumbai India and across Gulf Countries, Middle East, Europe. We have a number of distribution centres across the state, which stock a range of quality steel supplies including steel tube & pipe, fasteners, round bar products, steel roofing products and steel tubing products.
The specification covers seamless and straight-seam welded ferritic/austenitic steel pipe for general corrosive service, with particular emphasis on resistance to stress corrosion cracking. The pipe shall be made by the seamless or an automatic welding process, with no addition of filler metal in the welding operation. Heat analysis shall be made to determine the percentages of the elements specified. Tension tests, hardening tests, flattening tests, hydrostatic tests and nondestructive electric tests shall be made to conform to the specified requirements.
Dimension : ASTM, ASME and API
ASTM Specification : ASTM A790 / ASME SA790, ASTM A789 / ASME SA A789

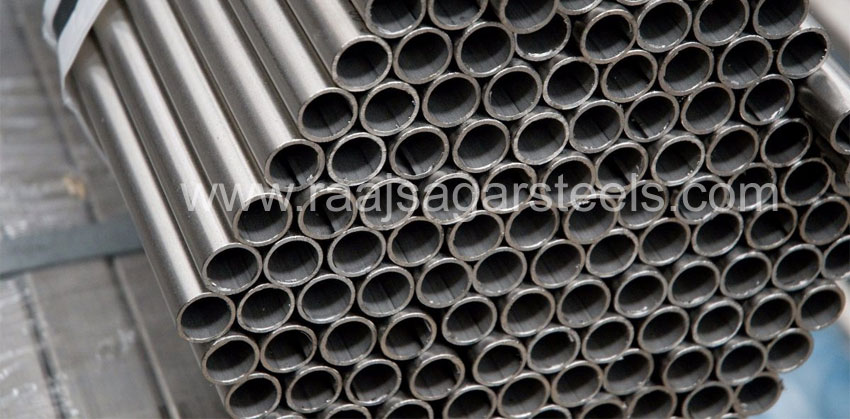

ASTM A790 Super Duplex Steel UNS S32750 Pipe Size : 1/2"NB TO 12 "NB IN
UNS S32750 Seamless Pipe & Tube Size : 1/2” NB - 8” NB
UNS S32750 Welded Pipe & Tube Size : 6” NB - 24” NB
Size Range for UNS S32750 Tubing: OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)
Outer Diameter : 6.0-630mm
Thickness : 0.5-45mm
Schedule : SCH20, SCH30, SCH40, STD, SCH80
Type : Seamless / ERW / Welded / Fabricated / CDW
Form : Round Pipe/Tube, Square Pipe/Tube, Rectangular Pipe/Tube, Coiled Tube, “U” Shape, Pan Cake Coils, Hydraulic Tube
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Threaded
Material: UNS S31803 1.4462 X2CrNiMoN22-5-3,UNS S ASTM A790 UNS S31803 Duplex Seamless Pipe ASTM A790 UNS S31803 Duplex Seamless Pipe 32101,UNS S32304,S32205,S32750,S32760 ASTM A790 UNS S31803 Duplex Seamless Pipe
Specialized Duplex Products:
Seamless Duplex Pipes / Tubes: ASTM A 789 / 790, ASME SA 789 / 790
Welded Duplex Pipes / Tubes: ASTM A 789 / 790, ASME SA 789 / 790
Duplex Pipe Fittings & Flanges: ASTM A 815, ASME SA 815
| STANDARD | WERKSTOFF NR. | UNS | EN Name |
|---|---|---|---|
| Super Duplex 2507 | 1.4410 | S32750 / S32760 / S32950 | X 2 CrNiMoN 25-7-4 |
C | Si | Mn | P | S | Cr | Mo | Ni | N | Other |
|---|---|---|---|---|---|---|---|---|---|
| 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 | Cu:0.50 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
| Sr. No. | Product Description | Outside Diamter, OD (in mm) | Wall Thickness, WT (in mm) |
|---|---|---|---|
| 1 | Astm A789 Uns S32750 Round Pipe | 6mm – 630mm | 0.5mm-30mm |
| 2 | ASTM A790 Super Duplex UNS S32750 Square Pipe | 12.7mm* 12.7mm to 300mm* 300mm | 0.5mm-30mm |
| 3 | Super Duplex Stainless Steel Rectangular Pipe | 10*20mm to 100*200mm | 0.5mm-30mm |
| 4 | ASTM A790 Colour Coated Pipe | 6mm to 630mm | 0.5mm-30mm |
| 5 | UNS S32750 Ornamental Tubes | 12.7mm to 76.2mm | 0.5mm-2.0mm |
| 6 | Astm A790 Material Electropolished Pipe | 12.7mm to 250mm | 0.5mm-30mm |
| 7 | Astm A790/A790m Slot Round Pipe | 12.7mm to 76.2mm | 0.5mm-2.0mm |
| 8 | A790 UNS S32750 Triangle Tube | 16mm to 85mm | 0.5mm-3.0mm |
| 9 | Astm A790 Super Duplex Hexagonal Tube | 13mm to 85mm | 0.5mm-2.0mm |
| 10 | Astm A790 S32750 Handrail Tube | – | 0.5mm-2.0mm |
| 11 | Astm A790 Gr Uns S32750 U Shaped Tube | 20mm to 200mm | 0.5mm-2.0mm |
| 12 | Super Duplex Thin-Wall Stainless Steel Tube | 22mm*0.7mm to 108mm*2.0mm | 0.5mm-2.0mm |
| 13 | Super Duplex Inner/Outside Polished Stainless Steel Tube, Pipes | 12.5mm to 203.2mm | 1.0mm – 5mm |
| 14 | Astm A790 Material Capillary Tube | 0.28mm to 10mm | 0.08mm – 1.2mm |
| 15 | Super Duplex Stainless Steel Seamless Tube | 6mm to 430mm | 0.8mm – 30mm |
| NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|
1/8" Astm A790 Pipe | |||||
1/4" Super Duplex Pipe | |||||
3/8" UNS S32750 Pipe | |||||
1/2" S32750 Pipe | |||||
3/4" Astm A790 Material Pipe | |||||
1" Astm A790 Super Duplex Pipe | |||||
1 1/4" Astm A790 S32750 Pipe | |||||
1 1/2" Duplex UNS S32750 Pipe | |||||
2" Tubo Astm A790 Pipe | |||||
2 1/2" Astm A790 Gr Uns S32750 Pipe | |||||
3" Astm A790 Duplex Pipe | |||||
4" Duplex UNS S32750 Pipe | |||||
5" Astm A790 Uns S32750 Pipe | |||||
6" Astm A790 Material UNS S32750 Pipe |
| S32750 Pipe Suppliers | S32750 Seamless Pipe |
| Astm A790 Uns S31803 Seamless Pipe |
Astm A790 Uns S32750 Welded Pipes |
| Astm A790 Material Welded Pipes | Astm A790 Duplex 2205 Heat Exchanger Pipe |
| Astm A790 Uns S32760 Pipe | Astm A790 Duplex Seamless Pipe |
| Astm A790/A790m Heat Exchanger Pipe | Astm A790 Filler Wire |
| Astm A789 A790 Seamless Pipe | Astm A790 Gr S31803 Pipe |
| Astm A790 Uns S31803 Welded Pipes | Astm A790 S32205 Seamless Pipe |
| Astm A790 Super Duplex | Astm A790 S31803 Welded Pipes |
| Astm A790 Uns S32750 Pipe | Norma Astm A790 Heat Exchanger Pipe |
| Astm A790 S32750 Heat Exchanger Pipe | Astm A790 Uns S31803 Seamless |
| Astm A790 Uns S32205 Pipe | Astm A790 Gr Uns S32750 Welded Pipes |
| Astm A790-16 Welded Pipes | Tubo Astm A790 Seamless Pipe |
| Astm A789 Vs A790 Seamless Pipe |
Astm A790 Heat Exchanger Pipe |
| Trade Name | UNS | Super Duplex Industry Specifications | Chemical Composition | Min.Tensile (KSI) | Min.Yield (KSI) | Elongation % |
|---|---|---|---|---|---|---|
| SAF 2507® | UNS S32750 | ASTM A182 F53, A240, A276, A479, A789, A790, A815, A928, A988 SAE J405 | C 0.030 max Cr 24.0-26.0 Cu 0.5 max Mn 1.20 max Mo 3.0-5.0 N 0.24-0.32 Ni 6.0-8.0 P 0.035 max S 0.020 max Si 0.8 max | 116 | 80 | 15 |
| UNS S32760 | ASTM A182 F55, A240, A276, A314, A473, A479, A789, A790, A815, A928, A988 SAE J405 | C 0.03 max Cr 24.0-26.0 Cu 0.5-1.0 Mn 1.0 max Mo 3.0-4.0 N 0.2-0.3 Ni 6.0-8.0 P 0.03 max S 0.01 max Si 1.0 max W 0.5-1.0 | 109 | 80 | 25 |
