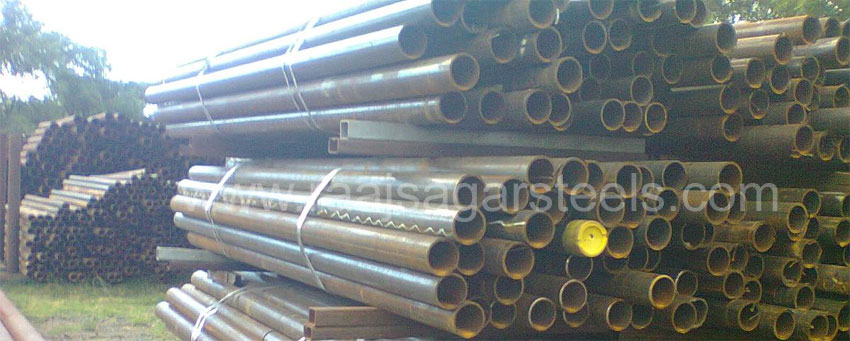

ASTM A790 Super Duplex Steel Uns S32760 Pipe
ASTM A790 Duplex Steel UNS S32760 Pipe Suppliers & DIN 1.4410 Welded Pipes Exporter in India
ASTM A789/A790 DUPLEX PIPE SUPPLIER IN INDIA, DUPLEX TUBES EXPORTER, DUPLEX ERW PIPE/TUBE
ASTM A790 DUPLEX STAINLESS STEEL SEAMLESS PIPES SUPPLIERS, DUPLEX 2205 TUBING EXPORTER, DUPLEX ERW PIPES MANUFACTURER
ASTM A790 Super Duplex Steel UNS S32760 Pipe Supplier
WNR 1.4462, UNS S31803 / S32205 PIPES SUPPLIER, 2205 DUPLEX SEAMLESS PIPES, 2205 DUPLEX TUBES SUPPLIER
We are one of the biggest Duplex Steel Pipe distributor in India. Contact us! imported bonded. quality assurance. good after-sales service. fast delivery. Highlights: Providing Safe And Reliable Products, Providing Professional Solution, Fast Response, Highly Experienced Team Available.
Buy affordable, best and durable ASTM A790 Duplex Steel Uns S32760 Pipe Manufacturer Suppliers in india, Super Duplex Seamless & Welded Pipe Suppliers Largest Market in Mumbai.
Price $2000-3000/Ton.
Ready Stock Available:Top 10 Manufacturers of Duplex Steel Pipe
Seamless Duplex Pipes / Tubes: ASTM A 789 / 790, ASME SA 789 / 790
Welded Duplex Pipes / Tubes: ASTM A 789 / 790, ASME SA 789 / 790
Duplex Pipe Fittings & Flanges: ASTM A 815, ASME SA 815
SEAMLESS AND WELDED DUPLEX PIPE/SEAMLESS SUPER DUPLEX PIPE
SIZES:1/2"NB - 8"NB (Seamless Duplex/Super Duplex)
SIZES:6"NB - 24 "NB (Welded Duplex)
Duplex Grade. Seamless Ferritic/Austenitic Stainless Steel Pipe to ASTM A790 UNS S31803 (Duplex) UNS S32760 (Super Duplex) and ASTM A928 UNS S31803 (Welded Duplex). Cold/Hot finished, solution annealed & descaled in random lengths 5-7.5 metres. Conforming to NACE Standard MR-0175 (Latest Revision)
Duplex 2205 Product Range
| Alloy | UNS Designation | Werkstoff NR. | Specifications* | EN Name |
|---|---|---|---|---|
| 2205 | S31803/S32205 | 1.4462 | A/SA789, A/SA790 | X 2 CrNiMoN 25-7-4 |
Pipe:- A790 Uns S31803, A790 S31803 Pipe, A790 S32205 Pipe, A790 Seamless Pipe, Astm A790 Pipe, A790 Duplex Pipe, A790 Pipe Material, A790 Uns S31803 Pipe
Duplex 2205 Product Information
| Products | OD | Wall | Lengths and/or coils | Grades | OD | Wall | Lengths |
|---|---|---|---|---|---|---|---|
| Welded Austenitic Steel Boiler, Super Heater, Heat-Exchangers & Condenser Tubes
Specifications: ASTM-A789 and ASME-SA789 |
3/16" (4.76 mm) to 4" (101.6 mm)
Metric sizes available |
0.020" (0.51 mm) to 0.220" (5.59 mm) | Random or cut lengths up to 68' (20.7 m)
Coils to 1-1/2" OD |
Duplex 2205 | <1-1/2" (38.1 mm) ±0.005" (0.13 mm)
1-1/2" (38.1 mm) to 3" (76.2 mm) ±0.010" (0.25 mm)
3-1/2" (88.9 mm) to 4" (101.6 mm) ±0.015" (0.38 mm) |
±10% | Randoms up to +2" (50.8 mm) Cuts +1/8" (3 mm) -0"
Coils to 80,000' (24,384 m) |
Physical Properties of Duplex 2205 Alloys in the Annealed Condition at -20°F to +100°F
| Tensile Strength | Yield Strength | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Alloy | UNS Designation | Spec. | psi | MPa | ksi | psi | MPa | ksi | Elongation in 2 in. (min.) % | Grain Size Req. | Max. Hardness | Modulus of Elasticity (x106 psi) | Mean Coefficient of Thermal Expansion (IN./IN./°F x 10-6) | Thermal Conductivity (BTU-in/ ft2-h-°F) |
| Duplex 2205 | S32205 | A789, A790 | 95,000 | 655 | 95 | 70,000 | 485 | 70 | 30 | — | 28 Rc, 30* Rc |
27.5 | 7.6 | 180 |
| Duplex 2205 | S31803 | A789, A790 | 90,000 | 620 | 90 | 65,000 | 450 | 65 | 30 | — | 28 Rc, 30* Rc |
27.5 | 7.6 | 180 |
*OD over 1.0" TS>87, YS>58, no hardness requirement 1.0" OD and under
Composition of Duplex 2205 tubing and pipe
| Grade | Duplex 2205 |
|---|---|
| UNS Designation | S31803/S32205* |
| Carbon (C) Max. | 0.030 |
| Manganese (Mn) Max. | 2.00 |
| Phosphorous (P) Max. | 0.030 |
| Sulphur (S) Max. | 0.020 |
| Silicon (Si) Max. | 1.00 |
| Chromium (Cr) | 22.0 – 23.0 |
| Nickel (Ni) | 4.5 – 6.5 |
| Molybdenum (Mo) | 3.0 – 3.5 |
| Nitrogen (N) | 0.14 – 0.20 |
| Iron (Fe) | Bal. |
| Copper (Cu) | — |
| Other Elements | N/A |
* S32205 is the more restrictive chemistry and is shown
