    Fasteners External Retaining Rings Series 2100 – 5100 Dimensions, Weight Chart & Material Specification & Tolerances / Fasteners External Retaining Rings Series 2100 – 5100 / Fasteners External Retaining Rings Series 2100 – 5100

    Fasteners External Retaining Rings Series 2100 – 5100 Dimensions, Weight Chart & Material Specification & Tolerances

    External Retaining Rings Series 2100 – 5100 Specifications



    All measurements in millimeters (mm)

    Ring n° d1 s d3 a b c d5 d2 m n Fn Fr g Frg Nabl lbs* Tool
    25 0.25 0.025 + .002 .225 + .002 0.08 + .003 0.035 + .003 0.025 + .003 0.041 + .010 0.023 + .0015 0.029 + .003 0.03 175 599 0.011 470 80000 0.211 A0 A01
    -.002 -.004 -.003 -.003 -.003 -.002 -.0015 -.000
    27 0.276 0.025 + .002 .250 + .002 0.081 + .003 0.035 + .003 0.024 + .003 0.041 + .010 0.255 + .0020 0.029 + .003 0.031 195 660 0.001 470 76000 0.22 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    28 0.281 0.025 + .002 .256 + .002 0.08 + .003 0.038 + .003 0.025 + .003 0.041 + .010 0.261 + .0020 0.029 + .003 0.03 200 670 0.012 470 74000 0.264 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    31 0.312 0.025 + .002 .281 + .002 0.087 + .003 0.04 + .003 0.026 + .003 0.041 + .010 0.29 + .0020 0.029 + .003 0.033 240 751 0.012 470 70000 0.284 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    34 0.344 0.025 + .002 .309 + .002 0.087 + .003 0.042 + .003 0.027 + .003 0.041 + .010 0.321 + .0020 0.029 + .003 0.033 265 812 0.013 470 64000 0.308 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    35 0.354 0.025 + .002 .320 + .002 0.087 + .003 0.046 + .003 0.029 + .003 0.041 + .010 0.33 + .0020 0.029 + .003 0.036 300 832 0.014 470 62000 0.352 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    37 0.375 0.025 + .002 .338 + .002 0.088 + .003 0.05 + .003 0.031 + .003 0.041 + .010 0.352 + .0020 0.029 + .003 0.036 320 883 0.016 470 60000 0.372 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    39 0.394 0.025 + .002 .354 + .002 0.087 + .003 0.052 + .003 0.031 + .003 0.041 + .010 0.369 + .0020 0.029 + .003 0.037 335 954 0.016 470 56500 0.396 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    40 0.406 0.025 + .002 .366 + .002 0.087 + .003 0.054 + .003 0.033 + .003 0.041 + .010 0.382 + .0020 0.029 + .003 0.036 350 964 0.017 470 55000 0.418 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    43 0.438 0.025 + .002 .395 + .002 0.088 + .003 0.055 + .003 0.033 + .003 0.041 + .010 0.412 + .0020 0.029 + .003 0.039 400 1035 0.018 470 50000 0.453 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    46 0.469 0.025 + .002 .428 + .002 0.088 + .003 0.06 + .003 0.035 + .003 0.041 + .010 0.443 + .0020 0.029 + .003 0.039 450 1117 0.018 470 42000 0.572 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    50 0.5 0.035 + .002 .461 + .002 0.108 + .003 0.065 + .004 0.04 + .004 0.047 + .010 0.468 + .0020 0.039 + .003 0.048 550 1675 0.02 910 40000 0.902 A0 A01
    -.002 -.005 -.003 -.004 -.004 -.002 -.0020 -.000
    55 0.551 0.035 + .002 .509 + .005 0.108 + .003 0.053 + .004 0.036 + .004 0.047 + .010 0.519 + .0020 0.039 + .003 0.048 600 1800 0.017 910 36000 0.814 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0020 -.000
    56 0.562 0.035 + .002 .521 + .005 0.108 + .003 0.072 + .004 0.041 + .004 0.047 + .010 0.53 + .0020 0.039 + .003 0.048 650 1878 0.023 910 35000 1.1 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0020 -.000
    59 0.594 0.035 + .002 .550 + .005 0.109 + .003 0.076 + .004 0.043 + .004 0.047 + .010 0.559 + .0030 0.039 + .003 0.052 750 1979 0.024 910 32000 1.188 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    62 0.625 0.035 + .002 .579 + .005 0.11 + .003 0.08 + .004 0.045 + .004 0.047 + .010 0.588 + .0030 0.039 + .003 0.055 800 2091 0.025 910 30000 1.311 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    66 0.669 0.035 + .002 .621 + .005 0.11 + .003 0.082 + .004 0.043 + .004 0.047 + .010 0.629 + .0030 0.039 + .003 0.06 950 2233 0.024 910 29000 1.408 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    66 0.672 0.035 + .002 .621 + .005 0.11 + .003 0.082 + .004 0.043 + .004 0.047 + .010 0.631 + .0030 0.039 + .003 0.06 950 2233 0.024 910 29000 1.408 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    68 0.688 0.042 + .002 .635 + .005 0.136 + .004 0.084 + .005 0.048 + .005 0.052 + .010 0.646 + .0030 0.046 + .003 0.063 1000 3451 0.025 1340 28000 1.76 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    75 0.75 0.042 + .002 .693 + .005 0.136 + .004 0.092 + .005 0.051 + .005 0.052 + .010 0.704 + .0030 0.046 + .003 0.069 1200 3756 0.028 1340 26500 2.112 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    78 0.781 0.042 + .002 .722 + .005 0.136 + .004 0.094 + .005 0.052 + .005 0.052 + .010 0.733 + .0030 0.046 + .003 0.072 1300 3959 0.028 1340 25500 2.156 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    81 0.812 0.042 + .002 .751 + .005 0.136 + .004 0.096 + .005 0.054 + .005 0.052 + .010 0.762 + .0030 0.046 + .003 0.075 1450 4060 0.028 1340 24500 2.354 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    84 0.844 0.042 + .002 .780 + .005 0.137 + .004 0.1 + .005 0.057 + .005 0.052 + .010 0.791 + .0030 0.046 + .003 0.078 1500 4200 0.028 1340 24000 2.596 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    87 0.875 0.042 + .002 .810 + .005 0.137 + .004 0.104 + .005 0.057 + .005 0.052 + .010 0.821 + .0030 0.046 + .003 0.081 1650 4365 0.031 1340 23000 2.772 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    93 0.938 0.042 + .002 .867 + .005 0.166 + .004 0.11 + .005 0.063 + .005 0.078 + .015 0.882 + .0030 0.046 + .003 0.084 1850 4720 0.033 1340 21500 3.168 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    98 0.984 0.042 + .002 .910 + .005 0.167 + .004 0.114 + .005 0.064 + .005 0.078 + .015 0.926 + .0030 0.046 + .003 0.087 2000 4923 0.034 1340 20500 3.388 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    100 1 0.042 + .002 .925 + .005 0.167 + .004 0.116 + .005 0.065 + .005 0.078 + .015 0.94 + .0030 0.046 + .003 0.09 2100 5024 0.034 1340 20000 3.483 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    102 1.023 0.042 + .002 .946 + .005 0.168 + .004 0.118 + .005 0.066 + .005 0.078 + .015 0.961 + .0030 0.046 + .003 0.093 2250 5126 0.035 1340 19500 3.74 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    106 1.062 0.05 + .002 .982 + .010 0.181 + .004 0.122 + .006 0.069 + .006 0.078 + .015 0.998 + .004 0.056 + .004 0.096 2400 6293 0.036 1950 19000 4.884 A1 A11
    -.002 -.015 -.004 -.006 -.006 -.002 -.004 -.000
    112 1.125 0.05 + .002 1.041 + .010 0.181 + .006 0.181 + .006 0.085 + .006 0.087 + .000 1.059 + .004 0.056 + .004 0.099 2600 6699 0.037 1950 18800 6.138 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.008 -.004 -.000
    118 1.188 0.05 + .002 1.098 + .010 0.181 + .006 0.181 + .006 0.085 + .006 0.087 + .000 1.118 + .004 0.056 + .004 0.105 2950 7105 0.039 1950 18000 7.344 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.008 -.004 -.000
    125 1.25 0.05 + .002 1.156 + .010 0.181 + .006 0.181 + .006 0.087 + .006 0.108 + .000 1.176 + .004 0.056 + .004 0.111 3250 7460 0.041 1950 17000 7.834 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    131 1.312 0.05 + .002 1.214 + .010 0.181 + .006 0.181 + .006 0.094 + .006 0.108 + .000 1.232 + .004 0.056 + .004 0.12 3700 7866 0.041 1950 16500 7.546 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    137 1.375 0.05 + .002 1.272 + .010 0.181 + .006 0.181 + .006 0.1 + .006 0.108 + .000 1.291 + .004 0.056 + .004 0.126 4100 8222 0.043 1950 16000 8.257 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    143 1.438 0.05 + .002 1.333 + .010 0.201 + .006 0.201 + .006 0.096 + .008 0.108 + .000 1.35 + .004 0.056 + .004 0.132 4500 8628 0.045 1950 15000 8.282 A2 A21
    -.002 -.015 -.006 -.006 -.008 -.010 -.004 -.000
    150 1.5 0.05 + .002 1.387 + .010 0.201 + .006 0.201 + .006 0.096 + .008 0.108 + .000 1.406 + .004 0.056 + .004 0.141 5000 8932 0.047 1950 14800 8.536 A2 A21
    -.002 -.015 -.006 -.006 -.008 -.010 -.004 -.000
    156 1.562 0.062 + .003 1.446 + .013 0.213 + .006 0.213 + .006 0.098 + .008 0.108 + .000 1.468 + .005 0.068 + .004 0.141 5200 11571 0.049 3000 14000 13.706 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    162 1.625 0.062 + .003 1.503 + .013 0.213 + .006 0.213 + .006 0.098 + .008 0.108 + .000 1.529 + .005 0.068 + .004 0.144 5500 12028 0.052 3000 13200 15.62 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    168 1.688 0.062 + .003 1.560 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.589 + .005 0.068 + .004 0.148 5850 12535 0.054 3000 13000 14.89 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    175 1.75 0.062 + .003 1.618 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.65 + .005 0.068 + .004 0.15 6200 12992 0.054 3000 12200 17.512 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    177 1.772 0.062 + .003 1.637 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.669 + .005 0.068 + .004 0.154 6400 13144 0.055 3000 11700 17.512 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    181 1.812 0.062 + .003 1.675 + .013 0.213 + .006 0.213 + .006 0.102 + .008 0.108 + .000 1.708 + .005 0.068 + .004 0.156 6650 13449 0.055 3000 11500 16.544 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    187 1.875 0.062 + .003 1.735 + .013 0.213 + .006 0.213 + .006 0.102 + .008 0.108 + .000 1.769 + .005 0.068 + .004 0.159 7000 13906 0.056 3000 11000 18.238 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    196 1.969 0.062 + .003 1.819 + .013 0.213 + .006 0.213 + .006 0.11 + .008 0.108 + .000 1.857 + .005 0.068 + .004 0.168 7800 14565 0.056 3000 10500 19.316 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    200 2 0.062 + .003 1.850 + .013 0.213 + .006 0.213 + .006 0.11 + .008 0.108 + .000 1.886 + .005 0.068 + .004 0.171 8050 14819 0.057 3000 10000 17.996 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    206 2.062 0.078 + .003 1.906 + .015 0.209 + .006 0.209 + .006 0.11 + .010 0.108 + .000 1.946 + .006 0.086 + .005 0.174 8450 19234 0.059 5000 9600 22.11 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    212 2.125 0.078 + .003 1.964 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.003 + .006 0.086 + .005 0.183 9150 19793 0.059 5000 9500 23.98 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    215 2.156 0.078 + .003 1.993 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.032 + .006 0.086 + .005 0.186 9450 20097 0.058 5000 9400 24.024 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    225 2.25 0.078 + .003 2.081 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.12 + .006 0.086 + .005 0.195 10350 21011 0.06 5000 9200 24.882 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    231 2.312 0.078 + .003 2.139 + .015 0.209 + .006 0.209 + .006 0.114 + .010 0.108 + .000 2.178 + .006 0.086 + .005 0.201 10950 21518 0.06 5000 9000 25.476 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    237 2.375 0.078 + .003 2.197 + .015 0.209 + .006 0.209 + .006 0.114 + .010 0.108 + .000 2.239 + .006 0.086 + .005 0.204 11400 22127 0.06 5000 8800 26.576 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    243 2.438 0.078 + .003 2.255 + .015 0.209 + .006 0.209 + .006 0.118 + .010 0.108 + .000 2.299 + .006 0.086 + .005 0.207 11900 22736 0.061 5000 8600 28.028 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    250 2.5 0.078 + .003 2.313 + .015 0.209 + .006 0.209 + .006 0.118 + .010 0.108 + .000 2.36 + .006 0.086 + .005 0.21 12350 23345 0.062 5000 8400 28.446 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    255 2.559 0.078 + .003 2.377 + .020 0.248 + .008 0.248 + .008 0.132 + .012 0.128 + .000 2.419 + .006 0.086 + .005 0.21 12650 23853 0.065 5000 8200 33.66 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    262 2.625 0.078 + .003 2.428 + .020 0.248 + .008 0.248 + .008 0.134 + .012 0.128 + .000 2.481 + .006 0.086 + .005 0.216 13350 24462 0.066 5000 8000 35.882 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    268 2.688 0.078 + .003 2.485 + .020 0.248 + .008 0.248 + .008 0.134 + .012 0.128 + .000 2.541 + .006 0.086 + .005 0.219 13850 25071 0.067 5000 7900 35.64 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    275 2.75 0.093 + .003 2.543 + .020 0.26 + .008 0.26 + .008 0.136 + .012 0.128 + .000 2.602 + .006 0.103 + .005 0.222 14400 30551 0.067 7350 7600 44.792 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    287 2.875 0.093 + .003 2.659 + .020 0.26 + .008 0.26 + .008 0.136 + .012 0.128 + .000 2.721 + .006 0.103 + .005 0.231 15650 31973 0.069 7350 7300 45.21 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    293 2.938 0.093 + .003 2.717 + .020 0.26 + .008 0.26 + .008 0.138 + .012 0.128 + .000 2.779 + .006 0.103 + .005 0.237 16400 32683 0.07 7350 7200 53.46 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    300 3 0.093 + .003 2.775 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.838 + .006 0.103 + .005 0.243 17200 33394 0.07 7350 6700 48.4 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    306 3.062 0.093 + .003 2.832 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.898 + .006 0.103 + .005 0.246 17750 34003 0.064 7350 6600 50.314 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    312 3.125 0.093 + .003 2.892 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.957 + .006 0.103 + .005 0.252 18550 34815 0.072 7350 6600 51.37 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    315 3.156 0.093 + .003 2.920 + .020 0.26 + .008 0.26 + .008 0.142 + .012 0.128 + .000 2.986 + .006 0.103 + .005 0.255 18950 35119 0.072 7350 6500 51.502 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    325 3.25 0.093 + .003 3.006 + .020 0.26 + .008 0.26 + .008 0.144 + .012 0.128 + .000 3.076 + .006 0.103 + .005 0.261 20000 36134 0.074 7350 6400 53.79 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    334 3.346 0.093 + .003 3.092 + .020 0.295 + .008 0.295 + .008 0.161 + .012 0.15 + .000 3.166 + .006 0.103 + .005 0.27 21000 37251 0.076 7350 6000 65.502 A4 A41
    -.003 -.030 -.008 -.008 -.012 -.012 -.006 -.000
    343 3.438 0.093 + .003 3.179 + .020 0.295 + .008 0.295 + .008 0.163 + .012 0.15 + .000 3.257 + .006 0.103 + .005 0.27 21900 38266 0.077 7350 5900 63.558 A4 A41
    -.003 -.030 -.008 -.008 -.012 -.012 -.006 -.000
    350 3.5 0.109 + .003 3.237 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.316 + .006 0.12 + .005 0.276 22800 45574 0.073 10500 5900 89.276 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    354 3.543 0.109 + .003 3.277 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.357 + .006 0.12 + .005 0.279 23300 46183 0.074 10500 5800 74.536 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    362 3.625 0.109 + .003 3.352 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.435 + .006 0.12 + .005 0.285 24300 47299 0.076 10500 5700 79.838 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    368 3.688 0.109 + .003 3.410 + .020 0.315 + .012 0.315 + .012 0.169 + .012 0.15 + .000 3.493 + .006 0.12 + .005 0.291 25300 48010 0.078 10500 5600 83.578 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    375 3.75 0.109 + .003 3.468 + .020 0.315 + .012 0.315 + .012 0.171 + .012 0.15 + .000 3.552 + .006 0.12 + .005 0.297 26200 18822 0.08 10500 5500 95.568 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    387 3.875 0.109 + .003 3.584 + .020 0.315 + .012 0.315 + .012 0.175 + .012 0.15 + .000 3.673 + .006 0.12 + .005 0.303 27700 50446 0.082 10500 5100 93.61 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    393 3.938 0.109 + .003 3.642 + .020 0.315 + .012 0.315 + .012 0.175 + .012 0.15 + .000 3.734 + .006 0.12 + .005 0.306 28400 51359 0.082 10500 5200 102.41 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    400 4 0.109 + .003 3.700 + .020 0.315 + .012 0.315 + .012 0.177 + .012 0.15 + .000 3.792 + .006 0.12 + .005 0.312 29400 52171 0.081 10500 5000 95.964 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    412 4.125 0.109 + .003 3.800 + .020 0.331 + .012 0.331 + .012 0.183 + .016 0.169 + .000 3.915 + .006 0.12 + .005 0.315 29800 53200 0.081 10500 4900 102.564 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    425 4.25 0.109 + .003 3.989 + .020 0.331 + .012 0.331 + .012 0.187 + .016 0.169 + .000 4.065 + .006 0.12 + .005 0.276 27600 55419 0.088 10500 4800 102.564 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    437 4.375 0.109 + .003 4.106 + .020 0.331 + .012 0.331 + .012 0.189 + .016 0.169 + .000 4.19 + .006 0.12 + .005 0.276 28400 57043 0.088 10500 4700 112.2 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    450 4.5 0.109 + .003 4.223 + .020 0.331 + .012 0.331 + .012 0.191 + .016 0.169 + .000 4.31 + .006 0.12 + .005 0.285 30200 58667 0.061 10500 4500 110.924 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    475 4.75 0.109 + .003 4.458 + .020 0.331 + .012 0.331 + .012 0.193 + .016 0.169 + .000 4.55 + .006 0.12 + .005 0.3 33600 61915 0.069 10500 4200 115.412 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    500 5 0.109 + .003 4.692 + .020 0.331 + .012 0.331 + .012 0.195 + .016 0.169 + .000 4.79 + .006 0.12 + .005 0.315 37100 65163 0.099 10500 4000 119.416 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    525 5.25 0.125 + .004 4.927 + .020 0.378 + .012 0.378 + .012 0.201 + .016 0.169 + .000 5.03 + .007 0.139 + .006 0.33 40800 78460 0.101 13500 3900 191.4 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    550 5.5 0.125 + .004 5.162 + .020 0.378 + .012 0.378 + .012 0.203 + .016 0.169 + .000 5.265 + .007 0.139 + .006 0.351 45500 82215 0.105 13500 3700 201.718 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    575 5.75 0.125 + .004 5.396 + .020 0.378 + .012 0.378 + .012 0.211 + .016 0.169 + .000 5.5 + .007 0.139 + .006 0.366 49600 85971 0.11 13500 3500 217.404 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    600 6 0.125 + .004 5.631 + .020 0.378 + .012 0.378 + .012 0.217 + .016 0.169 + .000 5.745 + .007 0.139 + .006 0.381 53800 89625 0.086 13500 3400 228.272 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    625 6.25 0.156 + .005 5.866 + .020 0.425 + .012 0.425 + .012 0.224 + .016 0.169 + .000 5.985 + .008 0.174 + .008 0.396 58300 116522 0.089 21000 3100 301.4 A4 A41
    -.005 -.050 -.012 -.012 -.016 -.012 -.008 -.000
    650 6.5 0.156 + .005 6.100 + .020 0.531 + .012 0.488 + .016 0.291 + .016 0.169 + .000 6.225 + .008 0.174 + .008 0.411 62900 121191 0.114 21000 3000 349.624 A5 A51
    -.005 -.050 -.012 -.016 -.016 -.012 -.008 -.000
    675 6.75 0.156 + .005 6.335 + .020 0.531 + .012 0.531 + .012 0.291 + .016 0.169 + .000 6.465 + .008 0.174 + .008 0.426 67700 125860 0.12 21000 3000 384.604 A5 A51
    -.005 -.050 -.012 -.012 -.016 -.012 -.008 -.000
    700 7 0.156 + .005 6.570 + .050 0.531 + .012 0.531 + .012 0.291 + .016 0.169 + .000 6.705 + .008 0.174 + .008 0.441 72700 130529 0.125 21000 2900 392.04 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    725 7.25 0.187 + .005 6.775 + .050 0.551 + .012 0.551 + .012 0.291 + .016 0.169 + .000 6.942 + .008 0.209 + .008 0.46 78900 162096 0.128 30000 2800 517 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    750 7.5 0.187 + .005 7.009 + .050 0.551 + .012 0.551 + .012 0.291 + .016 0.169 + .000 7.18 + .008 0.209 + .008 0.48 84800 167678 0.132 30000 2700 550 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    775 7.75 0.187 + .005 7.243 + .050 0.551 + .012 0.551 + .012 0.295 + .016 0.169 + .000 7.42 + .008 0.209 + .008 0.495 90450 173261 0.136 30000 2600 571.45 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    800 8 0.187 + .005 7.478 + .050 0.551 + .012 0.551 + .012 0.295 + .016 0.169 + .000 7.66 + .008 0.209 + .008 0.51 96100 178843 0.141 30000 2500 594 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    *per 1000 pieces
    Ring n° d1 s d3 a b c d5 d2 m n Fn Fr g Frg Nabl lbs* Tool
    25 0.25 0.025 + .002 .225 + .002 0.08 + .003 0.035 + .003 0.025 + .003 0.041 + .010 0.023 + .0015 0.029 + .003 0.03 175 599 0.011 470 80000 0.211 A0 A01
    -.002 -.004 -.003 -.003 -.003 -.002 -.0015 -.000
    27 0.276 0.025 + .002 .250 + .002 0.081 + .003 0.035 + .003 0.024 + .003 0.041 + .010 0.255 + .0020 0.029 + .003 0.031 195 660 0.001 470 76000 0.22 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    28 0.281 0.025 + .002 .256 + .002 0.08 + .003 0.038 + .003 0.025 + .003 0.041 + .010 0.261 + .0020 0.029 + .003 0.03 200 670 0.012 470 74000 0.264 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    31 0.312 0.025 + .002 .281 + .002 0.087 + .003 0.04 + .003 0.026 + .003 0.041 + .010 0.29 + .0020 0.029 + .003 0.033 240 751 0.012 470 70000 0.284 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    34 0.344 0.025 + .002 .309 + .002 0.087 + .003 0.042 + .003 0.027 + .003 0.041 + .010 0.321 + .0020 0.029 + .003 0.033 265 812 0.013 470 64000 0.308 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    35 0.354 0.025 + .002 .320 + .002 0.087 + .003 0.046 + .003 0.029 + .003 0.041 + .010 0.33 + .0020 0.029 + .003 0.036 300 832 0.014 470 62000 0.352 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    37 0.375 0.025 + .002 .338 + .002 0.088 + .003 0.05 + .003 0.031 + .003 0.041 + .010 0.352 + .0020 0.029 + .003 0.036 320 883 0.016 470 60000 0.372 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    39 0.394 0.025 + .002 .354 + .002 0.087 + .003 0.052 + .003 0.031 + .003 0.041 + .010 0.369 + .0020 0.029 + .003 0.037 335 954 0.016 470 56500 0.396 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    40 0.406 0.025 + .002 .366 + .002 0.087 + .003 0.054 + .003 0.033 + .003 0.041 + .010 0.382 + .0020 0.029 + .003 0.036 350 964 0.017 470 55000 0.418 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    43 0.438 0.025 + .002 .395 + .002 0.088 + .003 0.055 + .003 0.033 + .003 0.041 + .010 0.412 + .0020 0.029 + .003 0.039 400 1035 0.018 470 50000 0.453 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    46 0.469 0.025 + .002 .428 + .002 0.088 + .003 0.06 + .003 0.035 + .003 0.041 + .010 0.443 + .0020 0.029 + .003 0.039 450 1117 0.018 470 42000 0.572 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    50 0.5 0.035 + .002 .461 + .002 0.108 + .003 0.065 + .004 0.04 + .004 0.047 + .010 0.468 + .0020 0.039 + .003 0.048 550 1675 0.02 910 40000 0.902 A0 A01
    -.002 -.005 -.003 -.004 -.004 -.002 -.0020 -.000
    55 0.551 0.035 + .002 .509 + .005 0.108 + .003 0.053 + .004 0.036 + .004 0.047 + .010 0.519 + .0020 0.039 + .003 0.048 600 1800 0.017 910 36000 0.814 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0020 -.000
    56 0.562 0.035 + .002 .521 + .005 0.108 + .003 0.072 + .004 0.041 + .004 0.047 + .010 0.53 + .0020 0.039 + .003 0.048 650 1878 0.023 910 35000 1.1 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0020 -.000
    59 0.594 0.035 + .002 .550 + .005 0.109 + .003 0.076 + .004 0.043 + .004 0.047 + .010 0.559 + .0030 0.039 + .003 0.052 750 1979 0.024 910 32000 1.188 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    62 0.625 0.035 + .002 .579 + .005 0.11 + .003 0.08 + .004 0.045 + .004 0.047 + .010 0.588 + .0030 0.039 + .003 0.055 800 2091 0.025 910 30000 1.311 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    66 0.669 0.035 + .002 .621 + .005 0.11 + .003 0.082 + .004 0.043 + .004 0.047 + .010 0.629 + .0030 0.039 + .003 0.06 950 2233 0.024 910 29000 1.408 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    66 0.672 0.035 + .002 .621 + .005 0.11 + .003 0.082 + .004 0.043 + .004 0.047 + .010 0.631 + .0030 0.039 + .003 0.06 950 2233 0.024 910 29000 1.408 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    68 0.688 0.042 + .002 .635 + .005 0.136 + .004 0.084 + .005 0.048 + .005 0.052 + .010 0.646 + .0030 0.046 + .003 0.063 1000 3451 0.025 1340 28000 1.76 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    75 0.75 0.042 + .002 .693 + .005 0.136 + .004 0.092 + .005 0.051 + .005 0.052 + .010 0.704 + .0030 0.046 + .003 0.069 1200 3756 0.028 1340 26500 2.112 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    78 0.781 0.042 + .002 .722 + .005 0.136 + .004 0.094 + .005 0.052 + .005 0.052 + .010 0.733 + .0030 0.046 + .003 0.072 1300 3959 0.028 1340 25500 2.156 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    81 0.812 0.042 + .002 .751 + .005 0.136 + .004 0.096 + .005 0.054 + .005 0.052 + .010 0.762 + .0030 0.046 + .003 0.075 1450 4060 0.028 1340 24500 2.354 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    84 0.844 0.042 + .002 .780 + .005 0.137 + .004 0.1 + .005 0.057 + .005 0.052 + .010 0.791 + .0030 0.046 + .003 0.078 1500 4200 0.028 1340 24000 2.596 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    87 0.875 0.042 + .002 .810 + .005 0.137 + .004 0.104 + .005 0.057 + .005 0.052 + .010 0.821 + .0030 0.046 + .003 0.081 1650 4365 0.031 1340 23000 2.772 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    93 0.938 0.042 + .002 .867 + .005 0.166 + .004 0.11 + .005 0.063 + .005 0.078 + .015 0.882 + .0030 0.046 + .003 0.084 1850 4720 0.033 1340 21500 3.168 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    98 0.984 0.042 + .002 .910 + .005 0.167 + .004 0.114 + .005 0.064 + .005 0.078 + .015 0.926 + .0030 0.046 + .003 0.087 2000 4923 0.034 1340 20500 3.388 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    100 1 0.042 + .002 .925 + .005 0.167 + .004 0.116 + .005 0.065 + .005 0.078 + .015 0.94 + .0030 0.046 + .003 0.09 2100 5024 0.034 1340 20000 3.483 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    102 1.023 0.042 + .002 .946 + .005 0.168 + .004 0.118 + .005 0.066 + .005 0.078 + .015 0.961 + .0030 0.046 + .003 0.093 2250 5126 0.035 1340 19500 3.74 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    106 1.062 0.05 + .002 .982 + .010 0.181 + .004 0.122 + .006 0.069 + .006 0.078 + .015 0.998 + .004 0.056 + .004 0.096 2400 6293 0.036 1950 19000 4.884 A1 A11
    -.002 -.015 -.004 -.006 -.006 -.002 -.004 -.000
    112 1.125 0.05 + .002 1.041 + .010 0.181 + .006 0.181 + .006 0.085 + .006 0.087 + .000 1.059 + .004 0.056 + .004 0.099 2600 6699 0.037 1950 18800 6.138 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.008 -.004 -.000
    118 1.188 0.05 + .002 1.098 + .010 0.181 + .006 0.181 + .006 0.085 + .006 0.087 + .000 1.118 + .004 0.056 + .004 0.105 2950 7105 0.039 1950 18000 7.344 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.008 -.004 -.000
    125 1.25 0.05 + .002 1.156 + .010 0.181 + .006 0.181 + .006 0.087 + .006 0.108 + .000 1.176 + .004 0.056 + .004 0.111 3250 7460 0.041 1950 17000 7.834 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    131 1.312 0.05 + .002 1.214 + .010 0.181 + .006 0.181 + .006 0.094 + .006 0.108 + .000 1.232 + .004 0.056 + .004 0.12 3700 7866 0.041 1950 16500 7.546 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    137 1.375 0.05 + .002 1.272 + .010 0.181 + .006 0.181 + .006 0.1 + .006 0.108 + .000 1.291 + .004 0.056 + .004 0.126 4100 8222 0.043 1950 16000 8.257 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    143 1.438 0.05 + .002 1.333 + .010 0.201 + .006 0.201 + .006 0.096 + .008 0.108 + .000 1.35 + .004 0.056 + .004 0.132 4500 8628 0.045 1950 15000 8.282 A2 A21
    -.002 -.015 -.006 -.006 -.008 -.010 -.004 -.000
    150 1.5 0.05 + .002 1.387 + .010 0.201 + .006 0.201 + .006 0.096 + .008 0.108 + .000 1.406 + .004 0.056 + .004 0.141 5000 8932 0.047 1950 14800 8.536 A2 A21
    -.002 -.015 -.006 -.006 -.008 -.010 -.004 -.000
    156 1.562 0.062 + .003 1.446 + .013 0.213 + .006 0.213 + .006 0.098 + .008 0.108 + .000 1.468 + .005 0.068 + .004 0.141 5200 11571 0.049 3000 14000 13.706 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    162 1.625 0.062 + .003 1.503 + .013 0.213 + .006 0.213 + .006 0.098 + .008 0.108 + .000 1.529 + .005 0.068 + .004 0.144 5500 12028 0.052 3000 13200 15.62 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    168 1.688 0.062 + .003 1.560 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.589 + .005 0.068 + .004 0.148 5850 12535 0.054 3000 13000 14.89 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    175 1.75 0.062 + .003 1.618 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.65 + .005 0.068 + .004 0.15 6200 12992 0.054 3000 12200 17.512 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    177 1.772 0.062 + .003 1.637 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.669 + .005 0.068 + .004 0.154 6400 13144 0.055 3000 11700 17.512 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    181 1.812 0.062 + .003 1.675 + .013 0.213 + .006 0.213 + .006 0.102 + .008 0.108 + .000 1.708 + .005 0.068 + .004 0.156 6650 13449 0.055 3000 11500 16.544 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    187 1.875 0.062 + .003 1.735 + .013 0.213 + .006 0.213 + .006 0.102 + .008 0.108 + .000 1.769 + .005 0.068 + .004 0.159 7000 13906 0.056 3000 11000 18.238 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    196 1.969 0.062 + .003 1.819 + .013 0.213 + .006 0.213 + .006 0.11 + .008 0.108 + .000 1.857 + .005 0.068 + .004 0.168 7800 14565 0.056 3000 10500 19.316 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    200 2 0.062 + .003 1.850 + .013 0.213 + .006 0.213 + .006 0.11 + .008 0.108 + .000 1.886 + .005 0.068 + .004 0.171 8050 14819 0.057 3000 10000 17.996 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    206 2.062 0.078 + .003 1.906 + .015 0.209 + .006 0.209 + .006 0.11 + .010 0.108 + .000 1.946 + .006 0.086 + .005 0.174 8450 19234 0.059 5000 9600 22.11 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    212 2.125 0.078 + .003 1.964 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.003 + .006 0.086 + .005 0.183 9150 19793 0.059 5000 9500 23.98 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    215 2.156 0.078 + .003 1.993 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.032 + .006 0.086 + .005 0.186 9450 20097 0.058 5000 9400 24.024 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    225 2.25 0.078 + .003 2.081 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.12 + .006 0.086 + .005 0.195 10350 21011 0.06 5000 9200 24.882 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    231 2.312 0.078 + .003 2.139 + .015 0.209 + .006 0.209 + .006 0.114 + .010 0.108 + .000 2.178 + .006 0.086 + .005 0.201 10950 21518 0.06 5000 9000 25.476 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    237 2.375 0.078 + .003 2.197 + .015 0.209 + .006 0.209 + .006 0.114 + .010 0.108 + .000 2.239 + .006 0.086 + .005 0.204 11400 22127 0.06 5000 8800 26.576 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    243 2.438 0.078 + .003 2.255 + .015 0.209 + .006 0.209 + .006 0.118 + .010 0.108 + .000 2.299 + .006 0.086 + .005 0.207 11900 22736 0.061 5000 8600 28.028 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    250 2.5 0.078 + .003 2.313 + .015 0.209 + .006 0.209 + .006 0.118 + .010 0.108 + .000 2.36 + .006 0.086 + .005 0.21 12350 23345 0.062 5000 8400 28.446 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    255 2.559 0.078 + .003 2.377 + .020 0.248 + .008 0.248 + .008 0.132 + .012 0.128 + .000 2.419 + .006 0.086 + .005 0.21 12650 23853 0.065 5000 8200 33.66 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    262 2.625 0.078 + .003 2.428 + .020 0.248 + .008 0.248 + .008 0.134 + .012 0.128 + .000 2.481 + .006 0.086 + .005 0.216 13350 24462 0.066 5000 8000 35.882 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    268 2.688 0.078 + .003 2.485 + .020 0.248 + .008 0.248 + .008 0.134 + .012 0.128 + .000 2.541 + .006 0.086 + .005 0.219 13850 25071 0.067 5000 7900 35.64 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    275 2.75 0.093 + .003 2.543 + .020 0.26 + .008 0.26 + .008 0.136 + .012 0.128 + .000 2.602 + .006 0.103 + .005 0.222 14400 30551 0.067 7350 7600 44.792 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    287 2.875 0.093 + .003 2.659 + .020 0.26 + .008 0.26 + .008 0.136 + .012 0.128 + .000 2.721 + .006 0.103 + .005 0.231 15650 31973 0.069 7350 7300 45.21 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    293 2.938 0.093 + .003 2.717 + .020 0.26 + .008 0.26 + .008 0.138 + .012 0.128 + .000 2.779 + .006 0.103 + .005 0.237 16400 32683 0.07 7350 7200 53.46 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    300 3 0.093 + .003 2.775 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.838 + .006 0.103 + .005 0.243 17200 33394 0.07 7350 6700 48.4 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    306 3.062 0.093 + .003 2.832 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.898 + .006 0.103 + .005 0.246 17750 34003 0.064 7350 6600 50.314 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    312 3.125 0.093 + .003 2.892 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.957 + .006 0.103 + .005 0.252 18550 34815 0.072 7350 6600 51.37 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    315 3.156 0.093 + .003 2.920 + .020 0.26 + .008 0.26 + .008 0.142 + .012 0.128 + .000 2.986 + .006 0.103 + .005 0.255 18950 35119 0.072 7350 6500 51.502 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    325 3.25 0.093 + .003 3.006 + .020 0.26 + .008 0.26 + .008 0.144 + .012 0.128 + .000 3.076 + .006 0.103 + .005 0.261 20000 36134 0.074 7350 6400 53.79 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    334 3.346 0.093 + .003 3.092 + .020 0.295 + .008 0.295 + .008 0.161 + .012 0.15 + .000 3.166 + .006 0.103 + .005 0.27 21000 37251 0.076 7350 6000 65.502 A4 A41
    -.003 -.030 -.008 -.008 -.012 -.012 -.006 -.000
    343 3.438 0.093 + .003 3.179 + .020 0.295 + .008 0.295 + .008 0.163 + .012 0.15 + .000 3.257 + .006 0.103 + .005 0.27 21900 38266 0.077 7350 5900 63.558 A4 A41
    -.003 -.030 -.008 -.008 -.012 -.012 -.006 -.000
    350 3.5 0.109 + .003 3.237 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.316 + .006 0.12 + .005 0.276 22800 45574 0.073 10500 5900 89.276 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    354 3.543 0.109 + .003 3.277 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.357 + .006 0.12 + .005 0.279 23300 46183 0.074 10500 5800 74.536 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    362 3.625 0.109 + .003 3.352 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.435 + .006 0.12 + .005 0.285 24300 47299 0.076 10500 5700 79.838 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    368 3.688 0.109 + .003 3.410 + .020 0.315 + .012 0.315 + .012 0.169 + .012 0.15 + .000 3.493 + .006 0.12 + .005 0.291 25300 48010 0.078 10500 5600 83.578 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    375 3.75 0.109 + .003 3.468 + .020 0.315 + .012 0.315 + .012 0.171 + .012 0.15 + .000 3.552 + .006 0.12 + .005 0.297 26200 18822 0.08 10500 5500 95.568 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    387 3.875 0.109 + .003 3.584 + .020 0.315 + .012 0.315 + .012 0.175 + .012 0.15 + .000 3.673 + .006 0.12 + .005 0.303 27700 50446 0.082 10500 5100 93.61 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    393 3.938 0.109 + .003 3.642 + .020 0.315 + .012 0.315 + .012 0.175 + .012 0.15 + .000 3.734 + .006 0.12 + .005 0.306 28400 51359 0.082 10500 5200 102.41 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    400 4 0.109 + .003 3.700 + .020 0.315 + .012 0.315 + .012 0.177 + .012 0.15 + .000 3.792 + .006 0.12 + .005 0.312 29400 52171 0.081 10500 5000 95.964 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    412 4.125 0.109 + .003 3.800 + .020 0.331 + .012 0.331 + .012 0.183 + .016 0.169 + .000 3.915 + .006 0.12 + .005 0.315 29800 53200 0.081 10500 4900 102.564 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    425 4.25 0.109 + .003 3.989 + .020 0.331 + .012 0.331 + .012 0.187 + .016 0.169 + .000 4.065 + .006 0.12 + .005 0.276 27600 55419 0.088 10500 4800 102.564 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    437 4.375 0.109 + .003 4.106 + .020 0.331 + .012 0.331 + .012 0.189 + .016 0.169 + .000 4.19 + .006 0.12 + .005 0.276 28400 57043 0.088 10500 4700 112.2 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    450 4.5 0.109 + .003 4.223 + .020 0.331 + .012 0.331 + .012 0.191 + .016 0.169 + .000 4.31 + .006 0.12 + .005 0.285 30200 58667 0.061 10500 4500 110.924 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    475 4.75 0.109 + .003 4.458 + .020 0.331 + .012 0.331 + .012 0.193 + .016 0.169 + .000 4.55 + .006 0.12 + .005 0.3 33600 61915 0.069 10500 4200 115.412 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    500 5 0.109 + .003 4.692 + .020 0.331 + .012 0.331 + .012 0.195 + .016 0.169 + .000 4.79 + .006 0.12 + .005 0.315 37100 65163 0.099 10500 4000 119.416 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    525 5.25 0.125 + .004 4.927 + .020 0.378 + .012 0.378 + .012 0.201 + .016 0.169 + .000 5.03 + .007 0.139 + .006 0.33 40800 78460 0.101 13500 3900 191.4 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    550 5.5 0.125 + .004 5.162 + .020 0.378 + .012 0.378 + .012 0.203 + .016 0.169 + .000 5.265 + .007 0.139 + .006 0.351 45500 82215 0.105 13500 3700 201.718 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    575 5.75 0.125 + .004 5.396 + .020 0.378 + .012 0.378 + .012 0.211 + .016 0.169 + .000 5.5 + .007 0.139 + .006 0.366 49600 85971 0.11 13500 3500 217.404 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    600 6 0.125 + .004 5.631 + .020 0.378 + .012 0.378 + .012 0.217 + .016 0.169 + .000 5.745 + .007 0.139 + .006 0.381 53800 89625 0.086 13500 3400 228.272 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    625 6.25 0.156 + .005 5.866 + .020 0.425 + .012 0.425 + .012 0.224 + .016 0.169 + .000 5.985 + .008 0.174 + .008 0.396 58300 116522 0.089 21000 3100 301.4 A4 A41
    -.005 -.050 -.012 -.012 -.016 -.012 -.008 -.000
    650 6.5 0.156 + .005 6.100 + .020 0.531 + .012 0.488 + .016 0.291 + .016 0.169 + .000 6.225 + .008 0.174 + .008 0.411 62900 121191 0.114 21000 3000 349.624 A5 A51
    -.005 -.050 -.012 -.016 -.016 -.012 -.008 -.000
    675 6.75 0.156 + .005 6.335 + .020 0.531 + .012 0.531 + .012 0.291 + .016 0.169 + .000 6.465 + .008 0.174 + .008 0.426 67700 125860 0.12 21000 3000 384.604 A5 A51
    -.005 -.050 -.012 -.012 -.016 -.012 -.008 -.000
    700 7 0.156 + .005 6.570 + .050 0.531 + .012 0.531 + .012 0.291 + .016 0.169 + .000 6.705 + .008 0.174 + .008 0.441 72700 130529 0.125 21000 2900 392.04 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    725 7.25 0.187 + .005 6.775 + .050 0.551 + .012 0.551 + .012 0.291 + .016 0.169 + .000 6.942 + .008 0.209 + .008 0.46 78900 162096 0.128 30000 2800 517 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    750 7.5 0.187 + .005 7.009 + .050 0.551 + .012 0.551 + .012 0.291 + .016 0.169 + .000 7.18 + .008 0.209 + .008 0.48 84800 167678 0.132 30000 2700 550 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    775 7.75 0.187 + .005 7.243 + .050 0.551 + .012 0.551 + .012 0.295 + .016 0.169 + .000 7.42 + .008 0.209 + .008 0.495 90450 173261 0.136 30000 2600 571.45 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    800 8 0.187 + .005 7.478 + .050 0.551 + .012 0.551 + .012 0.295 + .016 0.169 + .000 7.66 + .008 0.209 + .008 0.51 96100 178843 0.141 30000 2500 594 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    *per 1000 pieces
    Ring n° d1 s d3 a b c d5 d2 m n Fn Fr g Frg Nabl lbs* Tool
    25 0.25 0.025 + .002 .225 + .002 0.08 + .003 0.035 + .003 0.025 + .003 0.041 + .010 0.023 + .0015 0.029 + .003 0.03 175 599 0.011 470 80000 0.211 A0 A01
    -.002 -.004 -.003 -.003 -.003 -.002 -.0015 -.000
    27 0.276 0.025 + .002 .250 + .002 0.081 + .003 0.035 + .003 0.024 + .003 0.041 + .010 0.255 + .0020 0.029 + .003 0.031 195 660 0.001 470 76000 0.22 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    28 0.281 0.025 + .002 .256 + .002 0.08 + .003 0.038 + .003 0.025 + .003 0.041 + .010 0.261 + .0020 0.029 + .003 0.03 200 670 0.012 470 74000 0.264 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    31 0.312 0.025 + .002 .281 + .002 0.087 + .003 0.04 + .003 0.026 + .003 0.041 + .010 0.29 + .0020 0.029 + .003 0.033 240 751 0.012 470 70000 0.284 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    34 0.344 0.025 + .002 .309 + .002 0.087 + .003 0.042 + .003 0.027 + .003 0.041 + .010 0.321 + .0020 0.029 + .003 0.033 265 812 0.013 470 64000 0.308 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    35 0.354 0.025 + .002 .320 + .002 0.087 + .003 0.046 + .003 0.029 + .003 0.041 + .010 0.33 + .0020 0.029 + .003 0.036 300 832 0.014 470 62000 0.352 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    37 0.375 0.025 + .002 .338 + .002 0.088 + .003 0.05 + .003 0.031 + .003 0.041 + .010 0.352 + .0020 0.029 + .003 0.036 320 883 0.016 470 60000 0.372 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    39 0.394 0.025 + .002 .354 + .002 0.087 + .003 0.052 + .003 0.031 + .003 0.041 + .010 0.369 + .0020 0.029 + .003 0.037 335 954 0.016 470 56500 0.396 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    40 0.406 0.025 + .002 .366 + .002 0.087 + .003 0.054 + .003 0.033 + .003 0.041 + .010 0.382 + .0020 0.029 + .003 0.036 350 964 0.017 470 55000 0.418 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    43 0.438 0.025 + .002 .395 + .002 0.088 + .003 0.055 + .003 0.033 + .003 0.041 + .010 0.412 + .0020 0.029 + .003 0.039 400 1035 0.018 470 50000 0.453 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    46 0.469 0.025 + .002 .428 + .002 0.088 + .003 0.06 + .003 0.035 + .003 0.041 + .010 0.443 + .0020 0.029 + .003 0.039 450 1117 0.018 470 42000 0.572 A0 A01
    -.002 -.005 -.003 -.003 -.003 -.002 -.0020 -.000
    50 0.5 0.035 + .002 .461 + .002 0.108 + .003 0.065 + .004 0.04 + .004 0.047 + .010 0.468 + .0020 0.039 + .003 0.048 550 1675 0.02 910 40000 0.902 A0 A01
    -.002 -.005 -.003 -.004 -.004 -.002 -.0020 -.000
    55 0.551 0.035 + .002 .509 + .005 0.108 + .003 0.053 + .004 0.036 + .004 0.047 + .010 0.519 + .0020 0.039 + .003 0.048 600 1800 0.017 910 36000 0.814 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0020 -.000
    56 0.562 0.035 + .002 .521 + .005 0.108 + .003 0.072 + .004 0.041 + .004 0.047 + .010 0.53 + .0020 0.039 + .003 0.048 650 1878 0.023 910 35000 1.1 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0020 -.000
    59 0.594 0.035 + .002 .550 + .005 0.109 + .003 0.076 + .004 0.043 + .004 0.047 + .010 0.559 + .0030 0.039 + .003 0.052 750 1979 0.024 910 32000 1.188 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    62 0.625 0.035 + .002 .579 + .005 0.11 + .003 0.08 + .004 0.045 + .004 0.047 + .010 0.588 + .0030 0.039 + .003 0.055 800 2091 0.025 910 30000 1.311 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    66 0.669 0.035 + .002 .621 + .005 0.11 + .003 0.082 + .004 0.043 + .004 0.047 + .010 0.629 + .0030 0.039 + .003 0.06 950 2233 0.024 910 29000 1.408 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    66 0.672 0.035 + .002 .621 + .005 0.11 + .003 0.082 + .004 0.043 + .004 0.047 + .010 0.631 + .0030 0.039 + .003 0.06 950 2233 0.024 910 29000 1.408 A0 A01
    -.002 -.010 -.003 -.004 -.004 -.002 -.0030 -.000
    68 0.688 0.042 + .002 .635 + .005 0.136 + .004 0.084 + .005 0.048 + .005 0.052 + .010 0.646 + .0030 0.046 + .003 0.063 1000 3451 0.025 1340 28000 1.76 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    75 0.75 0.042 + .002 .693 + .005 0.136 + .004 0.092 + .005 0.051 + .005 0.052 + .010 0.704 + .0030 0.046 + .003 0.069 1200 3756 0.028 1340 26500 2.112 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    78 0.781 0.042 + .002 .722 + .005 0.136 + .004 0.094 + .005 0.052 + .005 0.052 + .010 0.733 + .0030 0.046 + .003 0.072 1300 3959 0.028 1340 25500 2.156 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    81 0.812 0.042 + .002 .751 + .005 0.136 + .004 0.096 + .005 0.054 + .005 0.052 + .010 0.762 + .0030 0.046 + .003 0.075 1450 4060 0.028 1340 24500 2.354 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    84 0.844 0.042 + .002 .780 + .005 0.137 + .004 0.1 + .005 0.057 + .005 0.052 + .010 0.791 + .0030 0.046 + .003 0.078 1500 4200 0.028 1340 24000 2.596 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    87 0.875 0.042 + .002 .810 + .005 0.137 + .004 0.104 + .005 0.057 + .005 0.052 + .010 0.821 + .0030 0.046 + .003 0.081 1650 4365 0.031 1340 23000 2.772 A0 A01
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    93 0.938 0.042 + .002 .867 + .005 0.166 + .004 0.11 + .005 0.063 + .005 0.078 + .015 0.882 + .0030 0.046 + .003 0.084 1850 4720 0.033 1340 21500 3.168 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    98 0.984 0.042 + .002 .910 + .005 0.167 + .004 0.114 + .005 0.064 + .005 0.078 + .015 0.926 + .0030 0.046 + .003 0.087 2000 4923 0.034 1340 20500 3.388 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    100 1 0.042 + .002 .925 + .005 0.167 + .004 0.116 + .005 0.065 + .005 0.078 + .015 0.94 + .0030 0.046 + .003 0.09 2100 5024 0.034 1340 20000 3.483 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    102 1.023 0.042 + .002 .946 + .005 0.168 + .004 0.118 + .005 0.066 + .005 0.078 + .015 0.961 + .0030 0.046 + .003 0.093 2250 5126 0.035 1340 19500 3.74 A1 A11
    -.002 -.010 -.004 -.005 -.005 -.002 -.0030 -.000
    106 1.062 0.05 + .002 .982 + .010 0.181 + .004 0.122 + .006 0.069 + .006 0.078 + .015 0.998 + .004 0.056 + .004 0.096 2400 6293 0.036 1950 19000 4.884 A1 A11
    -.002 -.015 -.004 -.006 -.006 -.002 -.004 -.000
    112 1.125 0.05 + .002 1.041 + .010 0.181 + .006 0.181 + .006 0.085 + .006 0.087 + .000 1.059 + .004 0.056 + .004 0.099 2600 6699 0.037 1950 18800 6.138 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.008 -.004 -.000
    118 1.188 0.05 + .002 1.098 + .010 0.181 + .006 0.181 + .006 0.085 + .006 0.087 + .000 1.118 + .004 0.056 + .004 0.105 2950 7105 0.039 1950 18000 7.344 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.008 -.004 -.000
    125 1.25 0.05 + .002 1.156 + .010 0.181 + .006 0.181 + .006 0.087 + .006 0.108 + .000 1.176 + .004 0.056 + .004 0.111 3250 7460 0.041 1950 17000 7.834 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    131 1.312 0.05 + .002 1.214 + .010 0.181 + .006 0.181 + .006 0.094 + .006 0.108 + .000 1.232 + .004 0.056 + .004 0.12 3700 7866 0.041 1950 16500 7.546 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    137 1.375 0.05 + .002 1.272 + .010 0.181 + .006 0.181 + .006 0.1 + .006 0.108 + .000 1.291 + .004 0.056 + .004 0.126 4100 8222 0.043 1950 16000 8.257 A2 A21
    -.002 -.015 -.006 -.006 -.006 -.010 -.004 -.000
    143 1.438 0.05 + .002 1.333 + .010 0.201 + .006 0.201 + .006 0.096 + .008 0.108 + .000 1.35 + .004 0.056 + .004 0.132 4500 8628 0.045 1950 15000 8.282 A2 A21
    -.002 -.015 -.006 -.006 -.008 -.010 -.004 -.000
    150 1.5 0.05 + .002 1.387 + .010 0.201 + .006 0.201 + .006 0.096 + .008 0.108 + .000 1.406 + .004 0.056 + .004 0.141 5000 8932 0.047 1950 14800 8.536 A2 A21
    -.002 -.015 -.006 -.006 -.008 -.010 -.004 -.000
    156 1.562 0.062 + .003 1.446 + .013 0.213 + .006 0.213 + .006 0.098 + .008 0.108 + .000 1.468 + .005 0.068 + .004 0.141 5200 11571 0.049 3000 14000 13.706 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    162 1.625 0.062 + .003 1.503 + .013 0.213 + .006 0.213 + .006 0.098 + .008 0.108 + .000 1.529 + .005 0.068 + .004 0.144 5500 12028 0.052 3000 13200 15.62 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    168 1.688 0.062 + .003 1.560 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.589 + .005 0.068 + .004 0.148 5850 12535 0.054 3000 13000 14.89 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    175 1.75 0.062 + .003 1.618 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.65 + .005 0.068 + .004 0.15 6200 12992 0.054 3000 12200 17.512 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    177 1.772 0.062 + .003 1.637 + .013 0.213 + .006 0.213 + .006 0.1 + .008 0.108 + .000 1.669 + .005 0.068 + .004 0.154 6400 13144 0.055 3000 11700 17.512 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    181 1.812 0.062 + .003 1.675 + .013 0.213 + .006 0.213 + .006 0.102 + .008 0.108 + .000 1.708 + .005 0.068 + .004 0.156 6650 13449 0.055 3000 11500 16.544 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    187 1.875 0.062 + .003 1.735 + .013 0.213 + .006 0.213 + .006 0.102 + .008 0.108 + .000 1.769 + .005 0.068 + .004 0.159 7000 13906 0.056 3000 11000 18.238 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    196 1.969 0.062 + .003 1.819 + .013 0.213 + .006 0.213 + .006 0.11 + .008 0.108 + .000 1.857 + .005 0.068 + .004 0.168 7800 14565 0.056 3000 10500 19.316 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    200 2 0.062 + .003 1.850 + .013 0.213 + .006 0.213 + .006 0.11 + .008 0.108 + .000 1.886 + .005 0.068 + .004 0.171 8050 14819 0.057 3000 10000 17.996 A3 A31
    -.003 -.020 -.006 -.006 -.008 -.010 -.005 -.000
    206 2.062 0.078 + .003 1.906 + .015 0.209 + .006 0.209 + .006 0.11 + .010 0.108 + .000 1.946 + .006 0.086 + .005 0.174 8450 19234 0.059 5000 9600 22.11 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    212 2.125 0.078 + .003 1.964 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.003 + .006 0.086 + .005 0.183 9150 19793 0.059 5000 9500 23.98 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    215 2.156 0.078 + .003 1.993 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.032 + .006 0.086 + .005 0.186 9450 20097 0.058 5000 9400 24.024 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    225 2.25 0.078 + .003 2.081 + .015 0.209 + .006 0.209 + .006 0.112 + .010 0.108 + .000 2.12 + .006 0.086 + .005 0.195 10350 21011 0.06 5000 9200 24.882 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    231 2.312 0.078 + .003 2.139 + .015 0.209 + .006 0.209 + .006 0.114 + .010 0.108 + .000 2.178 + .006 0.086 + .005 0.201 10950 21518 0.06 5000 9000 25.476 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    237 2.375 0.078 + .003 2.197 + .015 0.209 + .006 0.209 + .006 0.114 + .010 0.108 + .000 2.239 + .006 0.086 + .005 0.204 11400 22127 0.06 5000 8800 26.576 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    243 2.438 0.078 + .003 2.255 + .015 0.209 + .006 0.209 + .006 0.118 + .010 0.108 + .000 2.299 + .006 0.086 + .005 0.207 11900 22736 0.061 5000 8600 28.028 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    250 2.5 0.078 + .003 2.313 + .015 0.209 + .006 0.209 + .006 0.118 + .010 0.108 + .000 2.36 + .006 0.086 + .005 0.21 12350 23345 0.062 5000 8400 28.446 A3 A31
    -.003 -.025 -.006 -.006 -.010 -.010 -.006 -.000
    255 2.559 0.078 + .003 2.377 + .020 0.248 + .008 0.248 + .008 0.132 + .012 0.128 + .000 2.419 + .006 0.086 + .005 0.21 12650 23853 0.065 5000 8200 33.66 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    262 2.625 0.078 + .003 2.428 + .020 0.248 + .008 0.248 + .008 0.134 + .012 0.128 + .000 2.481 + .006 0.086 + .005 0.216 13350 24462 0.066 5000 8000 35.882 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    268 2.688 0.078 + .003 2.485 + .020 0.248 + .008 0.248 + .008 0.134 + .012 0.128 + .000 2.541 + .006 0.086 + .005 0.219 13850 25071 0.067 5000 7900 35.64 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    275 2.75 0.093 + .003 2.543 + .020 0.26 + .008 0.26 + .008 0.136 + .012 0.128 + .000 2.602 + .006 0.103 + .005 0.222 14400 30551 0.067 7350 7600 44.792 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    287 2.875 0.093 + .003 2.659 + .020 0.26 + .008 0.26 + .008 0.136 + .012 0.128 + .000 2.721 + .006 0.103 + .005 0.231 15650 31973 0.069 7350 7300 45.21 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    293 2.938 0.093 + .003 2.717 + .020 0.26 + .008 0.26 + .008 0.138 + .012 0.128 + .000 2.779 + .006 0.103 + .005 0.237 16400 32683 0.07 7350 7200 53.46 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    300 3 0.093 + .003 2.775 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.838 + .006 0.103 + .005 0.243 17200 33394 0.07 7350 6700 48.4 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    306 3.062 0.093 + .003 2.832 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.898 + .006 0.103 + .005 0.246 17750 34003 0.064 7350 6600 50.314 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    312 3.125 0.093 + .003 2.892 + .020 0.26 + .008 0.26 + .008 0.14 + .012 0.128 + .000 2.957 + .006 0.103 + .005 0.252 18550 34815 0.072 7350 6600 51.37 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    315 3.156 0.093 + .003 2.920 + .020 0.26 + .008 0.26 + .008 0.142 + .012 0.128 + .000 2.986 + .006 0.103 + .005 0.255 18950 35119 0.072 7350 6500 51.502 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    325 3.25 0.093 + .003 3.006 + .020 0.26 + .008 0.26 + .008 0.144 + .012 0.128 + .000 3.076 + .006 0.103 + .005 0.261 20000 36134 0.074 7350 6400 53.79 A3 A31
    -.003 -.030 -.008 -.008 -.012 -.010 -.006 -.000
    334 3.346 0.093 + .003 3.092 + .020 0.295 + .008 0.295 + .008 0.161 + .012 0.15 + .000 3.166 + .006 0.103 + .005 0.27 21000 37251 0.076 7350 6000 65.502 A4 A41
    -.003 -.030 -.008 -.008 -.012 -.012 -.006 -.000
    343 3.438 0.093 + .003 3.179 + .020 0.295 + .008 0.295 + .008 0.163 + .012 0.15 + .000 3.257 + .006 0.103 + .005 0.27 21900 38266 0.077 7350 5900 63.558 A4 A41
    -.003 -.030 -.008 -.008 -.012 -.012 -.006 -.000
    350 3.5 0.109 + .003 3.237 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.316 + .006 0.12 + .005 0.276 22800 45574 0.073 10500 5900 89.276 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    354 3.543 0.109 + .003 3.277 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.357 + .006 0.12 + .005 0.279 23300 46183 0.074 10500 5800 74.536 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    362 3.625 0.109 + .003 3.352 + .020 0.315 + .012 0.315 + .012 0.165 + .012 0.15 + .000 3.435 + .006 0.12 + .005 0.285 24300 47299 0.076 10500 5700 79.838 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    368 3.688 0.109 + .003 3.410 + .020 0.315 + .012 0.315 + .012 0.169 + .012 0.15 + .000 3.493 + .006 0.12 + .005 0.291 25300 48010 0.078 10500 5600 83.578 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    375 3.75 0.109 + .003 3.468 + .020 0.315 + .012 0.315 + .012 0.171 + .012 0.15 + .000 3.552 + .006 0.12 + .005 0.297 26200 18822 0.08 10500 5500 95.568 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    387 3.875 0.109 + .003 3.584 + .020 0.315 + .012 0.315 + .012 0.175 + .012 0.15 + .000 3.673 + .006 0.12 + .005 0.303 27700 50446 0.082 10500 5100 93.61 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    393 3.938 0.109 + .003 3.642 + .020 0.315 + .012 0.315 + .012 0.175 + .012 0.15 + .000 3.734 + .006 0.12 + .005 0.306 28400 51359 0.082 10500 5200 102.41 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    400 4 0.109 + .003 3.700 + .020 0.315 + .012 0.315 + .012 0.177 + .012 0.15 + .000 3.792 + .006 0.12 + .005 0.312 29400 52171 0.081 10500 5000 95.964 A4 A41
    -.003 -.030 -.012 -.012 -.012 -.012 -.006 -.000
    412 4.125 0.109 + .003 3.800 + .020 0.331 + .012 0.331 + .012 0.183 + .016 0.169 + .000 3.915 + .006 0.12 + .005 0.315 29800 53200 0.081 10500 4900 102.564 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    425 4.25 0.109 + .003 3.989 + .020 0.331 + .012 0.331 + .012 0.187 + .016 0.169 + .000 4.065 + .006 0.12 + .005 0.276 27600 55419 0.088 10500 4800 102.564 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    437 4.375 0.109 + .003 4.106 + .020 0.331 + .012 0.331 + .012 0.189 + .016 0.169 + .000 4.19 + .006 0.12 + .005 0.276 28400 57043 0.088 10500 4700 112.2 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    450 4.5 0.109 + .003 4.223 + .020 0.331 + .012 0.331 + .012 0.191 + .016 0.169 + .000 4.31 + .006 0.12 + .005 0.285 30200 58667 0.061 10500 4500 110.924 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    475 4.75 0.109 + .003 4.458 + .020 0.331 + .012 0.331 + .012 0.193 + .016 0.169 + .000 4.55 + .006 0.12 + .005 0.3 33600 61915 0.069 10500 4200 115.412 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    500 5 0.109 + .003 4.692 + .020 0.331 + .012 0.331 + .012 0.195 + .016 0.169 + .000 4.79 + .006 0.12 + .005 0.315 37100 65163 0.099 10500 4000 119.416 A4 A41
    -.003 -.030 -.012 -.012 -.016 -.012 -.006 -.000
    525 5.25 0.125 + .004 4.927 + .020 0.378 + .012 0.378 + .012 0.201 + .016 0.169 + .000 5.03 + .007 0.139 + .006 0.33 40800 78460 0.101 13500 3900 191.4 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    550 5.5 0.125 + .004 5.162 + .020 0.378 + .012 0.378 + .012 0.203 + .016 0.169 + .000 5.265 + .007 0.139 + .006 0.351 45500 82215 0.105 13500 3700 201.718 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    575 5.75 0.125 + .004 5.396 + .020 0.378 + .012 0.378 + .012 0.211 + .016 0.169 + .000 5.5 + .007 0.139 + .006 0.366 49600 85971 0.11 13500 3500 217.404 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    600 6 0.125 + .004 5.631 + .020 0.378 + .012 0.378 + .012 0.217 + .016 0.169 + .000 5.745 + .007 0.139 + .006 0.381 53800 89625 0.086 13500 3400 228.272 A4 A41
    -.004 -.040 -.012 -.012 -.016 -.012 -.007 -.000
    625 6.25 0.156 + .005 5.866 + .020 0.425 + .012 0.425 + .012 0.224 + .016 0.169 + .000 5.985 + .008 0.174 + .008 0.396 58300 116522 0.089 21000 3100 301.4 A4 A41
    -.005 -.050 -.012 -.012 -.016 -.012 -.008 -.000
    650 6.5 0.156 + .005 6.100 + .020 0.531 + .012 0.488 + .016 0.291 + .016 0.169 + .000 6.225 + .008 0.174 + .008 0.411 62900 121191 0.114 21000 3000 349.624 A5 A51
    -.005 -.050 -.012 -.016 -.016 -.012 -.008 -.000
    675 6.75 0.156 + .005 6.335 + .020 0.531 + .012 0.531 + .012 0.291 + .016 0.169 + .000 6.465 + .008 0.174 + .008 0.426 67700 125860 0.12 21000 3000 384.604 A5 A51
    -.005 -.050 -.012 -.012 -.016 -.012 -.008 -.000
    700 7 0.156 + .005 6.570 + .050 0.531 + .012 0.531 + .012 0.291 + .016 0.169 + .000 6.705 + .008 0.174 + .008 0.441 72700 130529 0.125 21000 2900 392.04 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    725 7.25 0.187 + .005 6.775 + .050 0.551 + .012 0.551 + .012 0.291 + .016 0.169 + .000 6.942 + .008 0.209 + .008 0.46 78900 162096 0.128 30000 2800 517 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    750 7.5 0.187 + .005 7.009 + .050 0.551 + .012 0.551 + .012 0.291 + .016 0.169 + .000 7.18 + .008 0.209 + .008 0.48 84800 167678 0.132 30000 2700 550 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    775 7.75 0.187 + .005 7.243 + .050 0.551 + .012 0.551 + .012 0.295 + .016 0.169 + .000 7.42 + .008 0.209 + .008 0.495 90450 173261 0.136 30000 2600 571.45 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    800 8 0.187 + .005 7.478 + .050 0.551 + .012 0.551 + .012 0.295 + .016 0.169 + .000 7.66 + .008 0.209 + .008 0.51 96100 178843 0.141 30000 2500 594 A5 A51
    -.005 -.130 -.012 -.012 -.016 -.012 -.008 -.000
    *per 1000 pieces

    *All information is strictly informative

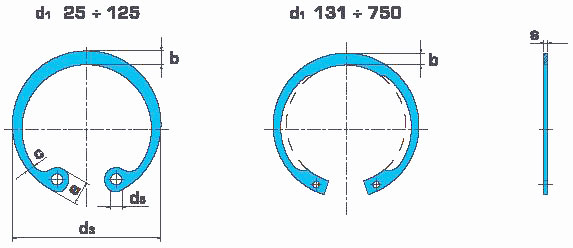

    Internal Retaining Ring Series 2000 – 5000 Specifications Dimensions, Weight Chart & Material Specification & TolerancesInternal Retaining Ring Series 2000 – 5000 Specifications / Internal Retaining Ring Series 2000 – 5000 Specifications / Internal Retaining Ring Series 2000 – 5000 Specifications Manufacturer & Suppliers Mumbai, India

    Internal Retaining Ring Series 2000 – 5000 Specifications



    All measurements in millimeters (mm)

    Ring n° d1 s d3 a b c d5 d2 m n Fn Fr g Frg lbs* Tool
    25 0.25 0.015 + .002 .280 + .010 0.065 + .003 0.025 + .002 0.015 + .002 0.031 + .010 0.268 + .001 0.02 + .002 0.027 190 426 0.0085 190 0.053 – –
    – .002 – .005 – .003 – .002 – .002 – .002 -.001 -.000
    31 0.312 0.015 + .002 .346 + .010 0.091 + .004 0.043 + .002 0.026 + .002 0.047 + .000 0.33 + .001 0.02 + .002 0.027 240 538 0.013 190 0.132 J0 J01
    – .002 – .005 – .004 – .002 – .002 – .006 -.001 -.000
    37 0.375 0.025 + .002 .415 + .010 0.082 + .003 0.04 + .003 0.028 + .003 0.041 + .010 0.397 + .002 0.029 + .003 0.033 350 1066 0.018 530 0.264 J0 J01
    – .002 – .005 – .003 – .003 – .003 – .002 -.002 -.000
    43 0.438 0.025 + .002 .482 + .010 0.098 + .003 0.049 + .003 0.029 + .003 0.041 + .010 0.461 + .002 0.029 + .003 0.036 440 1238 0.021 530 0.374 J0 J01
    – .002 – .005 – .003 – .003 – .003 – .002 -.002 -.000
    45 0.453 0.025 + .002 .498 + .010 0.098 + .003 0.05 + .003 0.03 + .003 0.047 + .010 0.477 + .002 0.029 + .003 0.036 460 1299 0.021 530 0.374 J0 J01
    – .002 – .005 – .003 – .003 – .003 – .002 -.002 -.000
    50 0.5 0.035 + .002 .548 + .010 0.114 + .003 0.053 + .004 0.035 + .004 0.047 + .010 0.53 + .002 0.039 + .003 0.045 510 2010 0.021 1100 0.682 J0 J01
    – .002 – .005 – .003 – .004 – .004 – .002 -.002 -.000
    51 0.512 0.035 + .002 .560 + .010 0.114 + .005 0.053 + .004 0.035 + .004 0.047 + .010 0.542 + .002 0.039 + .003 0.045 520 2060 0.021 1100 0.682 J0 J01
    – .002 – .005 – .005 – .004 – .004 – .002 -.002 -.000
    56 0.562 0.035 + .002 .620 + .010 0.132 + .005 0.053 + .004 0.035 + .004 0.047 + .010 0.596 + .002 0.039 + .003 0.051 710 2253 0.021 1100 0.79 J0 J01
    – .002 – .005 – .005 – .004 – .004 – .002 -.002 -.000
    62 0.625 0.035 + .002 .694 + .010 0.132 + .005 0.06 + .004 0.035 + .004 0.062 + .010 0.665 + .002 0.039 + .003 0.06 1050 2507 0.021 1100 1.03 J1 J11
    – .002 – .005 – .005 – .004 – .004 – .002 -.002 -.000
    68 0.688 0.035 + .002 .763 + .010 0.132 + .005 0.063 + .004 0.036 + .004 0.062 + .010 0.732 + .002 0.039 + .003 0.066 1280 2741 0.021 1100 1.034 J1 J11
    – .002 – .005 – .005 – .004 – .004 – .002 -.002 -.000
    75 0.75 0.035 + .002 .831 + .010 0.142 + .005 0.07 + .004 0.04 + .004 0.062 + .010 0.796 + .002 0.039 + .003 0.069 1460 3045 0.028 1100 1.296 J1 J11
    – .002 – .005 – .005 – .004 – .004 – .002 -.002 -.000
    77 0.777 0.042 + .002 .859 + .010 0.146 + .005 0.074 + .005 0.044 + .005 0.062 + .010 0.825 + .003 0.046 + .003 0.072 1580 7618 0.028 1650 1.65 J1 J11
    – .002 – .005 – .005 – .005 – .005 – .002 -.003 -.000
    81 0.812 0.042 + .002 .901 + .015 0.155 + .005 0.077 + .005 0.044 + .005 0.062 + .010 0.862 + .003 0.046 + .003 0.075 1710 4872 0.028 1650 1.771 J1 J11
    – .002 – .010 – .005 – .005 – .005 – .002 -.003 -.000
    86 0.866 0.042 + .002 .961 + .015 0.155 + .005 0.081 + .005 0.045 + .005 0.062 + .010 0.92 + .003 0.046 + .003 0.081 1980 5177 0.028 1650 1.98 J1 J11
    – .002 – .010 – .005 – .005 – .005 – .002 -.003 -.000
    87 0.875 0.042 + .002 .971 + .015 0.155 + .005 0.084 + .005 0.045 + .005 0.062 .+ .010 0.931 + .003 0.046 + .003 0.084 2080 5227 0.028 1650 1.991 J1 J11
    – .002 – .010 – .005 – .005 – .005 – .002 -.003 -.000
    90 0.901 0.042 + .002 1.000 + .015 0.155 + .005 0.087 + .005 0.047 + .005 0.062 + .010 0.959 + .003 0.046 + .003 0.087 2200 5430 0.03 1650 2.156 J1 J11
    – .002 – .010 – .005 – .005 – .005 – .002 -.003 -.000
    93 0.938 0.042 + .002 1.041 + .015 0.155 + .005 0.091 + .005 0.05 + .005 0.062 + .010 1 + .003 0.046 + .003 0.093 2450 5684 0.03 1650 2.354 J1 J11
    – .002 – .010 – .005 – .005 – .005 – .002 -.003 -.000
    100 1 0.042 + .002 1.111 + .015 0.155 + .005 0.104 + .005 0.052 + .005 0.062 + .010 1.066 + .003 0.046 + .003 0.099 2800 6039 0.034 1650 2.706 J1 J11
    – .002 – .010 – .005 – .005 – .005 – .002 -.003 -.000
    102 1.023 0.042 + .002 1.136 + .015 0.155 + .005 0.106 + .005 0.054 + .005 0.062 + .010 1.091 + .003 0.046 + .003 0.102 3000 6141 0.034 1650 2.838 J1 J11
    – .002 – .010 – .005 – .005 – .005 – .002 -.003 -.000
    106 1.062 0.05 + .002 1.180 + .025 0.18 + .005 0.11 + .006 0.055 + .006 0.078 + .015 1.13 + .004 0.056 + .004 0.102 3050 7562 0.035 2400 3.696 J2 J21
    – .002 – .020 – .005 – .006 – .006 – .002 -.004 -.000
    112 1.125 0.05 + .002 1.249 + .025 0.18 + .005 0.116 + .006 0.057 + .006 0.078 + .015 1.197 + .004 0.056 + .004 0.108 3400 8019 0.036 2400 4.07 J2 J21
    – .002 – .020 – .005 – .006 – .006 – .002 -.004 -.000
    118 1.181 0.05 + .002 1.319 + .025 0.18 + .005 0.12 + .006 0.058 + .006 0.078 + .015 1.255 + .004 0.056 + .004 0.111 3700 8526 0.036 2400 4.367 J2 J21
    – .002 – .020 – .005 – .006 – .006 – .002 -.004 -.000
    118 1.188 0.05 + .002 1.319 + .025 0.18 + .005 0.12 + .006 0.058 + .006 0.078 + .015 1.262 + .004 0.056 + .004 0.111 3700 8526 0.036 2400 4.367 J2 J21
    – .002 – .020 – .005 – .006 – .006 – .002 -.004 -.000
    125 1.25 0.05 + .002 1.388 + .025 0.18 + .005 0.124 + .006 0.062 + .006 0.078 + .015 1.33 + .004 0.056 + .004 0.12 4250 8932 0.038 2400 4.774 J2 J21
    – .002 – .020 – .005 – .006 – .006 – .002 -.004 -.000
    125 1.259 0.05 + .002 1.388 + .025 0.18 + .005 0.124 + .006 0.062 + .006 0.078 + .015 1.339 + .004 0.056 + .004 0.12 4250 8932 0.038 2400 4.774 J2 J21
    – .002 – .020 – .005 – .006 – .006 – .002 -.004 -.000
    131 1.312 0.05 + .002 1.456 + .025 0.201 + .006 0.13 + .006 0.062 + .006 0.078 + .015 1.396 + .004 0.056 + .004 0.126 4700 9440 0.038 2400 5.918 J2 J21
    – .002 – .020 – .006 – .006 – .006 – .002 -.004 -.000
    137 1.375 0.05 + .002 1.526 + .025 0.201 + .006 0.13 + .006 0.063 + .006 0.078 + .015 1.461 + .004 0.056 + .004 0.129 5050 9846 0.038 2400 5.837 J2 J21
    – .002 – .020 – .006 – .006 – .006 – .002 -.004 -.000
    137 1.378 0.05 + .002 1.526 + .025 0.201 + .006 0.13 + .006 0.063 + .006 0.078 + .015 1.464 + .004 0.056 + .004 0.129 5050 9846 0.038 2400 5.837 J2 J21
    – .002 – .020 – .006 – .006 – .006 – .002 -.004 -.000
    143 1.438 0.05 + .002 1.596 + .025 0.201 + .006 0.133 + .006 0.065 + .006 0.078 + .015 1.528 + .004 0.056 + .004 0.135 5500 10353 0.038 2400 6.664 J2 J21
    – .002 – .020 – .006 – .006 – .006 – .002 -.004 -.000
    145 1.456 0.05 + .002 1.616 + .025 0.201 + .006 0.133 + .006 0.065 + .006 0.078 + .015 1.548 + .004 0.056 + .004 0.138 5700 10455 0.038 2400 6.93 J2 J21
    – .002 – .020 – .006 – .006 – .006 – .002 -.004 -.000
    150 1.5 0.05 + .002 1.660 + .025 0.201 + .006 0.133 + .006 0.066 + .006 0.078 + .015 1.594 + .004 0.056 + .004 0.141 6000 10708 0.038 2400 6.417 J2 J21
    – .002 – .020 – .006 – .006 – .006 – .002 -.004 -.000
    156 1.562 0.062 + .003 1.734 + .035 0.213 + .006 0.157 + .007 0.078 + .007 0.078 + .015 1.658 + .005 0.068 + .004 0.144 6350 13906 0.05 3900 9.372 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    156 1.575 0.062 + .003 1.734 + .035 0.213 + .006 0.157 + .007 0.078 + .007 0.078 + .015 1.671 + .005 0.068 + .004 0.144 6350 13906 0.05 3900 9.372 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    162 1.625 0.062 + .003 1.804 + .035 0.213 + .006 0.164 + .007 0.082 + .007 0.078 + .015 1.725 + .005 0.068 + .004 0.15 6900 14413 0.05 3900 10.01 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    165 1.653 0.062 + .003 1.835 + .035 0.213 + .006 0.167 + .007 0.083 + .007 0.078 + .015 1.755 + .005 0.068 + .004 0.153 7200 14718 0.05 3900 10.406 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    168 1.688 0.062 + .003 1.874 + .035 0.213 + .006 0.17 + .007 0.085 + .007 0.078 + .015 1.792 + .005 0.068 + .004 0.156 7450 15022 0.05 3900 11.143 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    175 1.75 0.062 + .003 1.942 + .035 0.213 + .006 0.17 + .007 0.083 + .007 0.078 + .015 1.858 + .005 0.068 + .004 0.162 8050 15580 0.05 3900 11.658 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    181 1.812 0.062 + .003 2.012 + .035 0.213 + .006 0.17 + .007 0.084 + .007 0.093 + .015 1.922 + .005 0.068 + .004 0.165 8450 16139 0.05 3900 11.948 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    185 1.85 0.062 + .003 2.054 + .035 0.213 + .006 0.17 + .007 0.085 + .007 0.093 + .015 1.962 + .005 0.068 + .004 0.168 8750 16443 0.05 3900 12.298 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    187 1.875 0.062 + .003 2.072 + .035 0.213 + .006 0.17 + .007 0.085 + .007 0.093 + .015 1.989 + .005 0.068 + .004 0.171 9050 16697 0.05 3900 12.822 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    193 1.938 0.062 + .003 2.141 + .035 0.213 + .006 0.17 + .007 0.085 + .007 0.093 + .015 2.056 + .005 0.068 + .004 0.177 9700 17255 0.05 3900 12.89 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    200 2 0.062 + .003 2.210 + .035 0.213 + .006 0.17 + .007 0.085 + .007 0.093 + .015 2.122 + .005 0.068 + .004 0.183 10300 17763 0.05 3900 13.376 J2 J21
    – .003 – .025 – .006 – .007 – .007 – .002 -.005 -.000
    206 2.047 0.078 + .003 2.280 + .040 0.228 + .006 0.228 + .006 0.091 + .007 0.093 + .015 2.171 + .006 0.086 + .005 0.186 10850 23091 0.061 6200 19.294 J2 J21
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    206 2.062 0.078 + .003 2.280 + .040 0.228 + .006 0.228 + .006 0.091 + .007 0.093 + .015 2.186 + .006 0.086 + .005 0.186 10850 23091 0.062 6200 19.294 J2 J21
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    212 2.125 0.078 + .003 2.350 + .040 0.228 + .006 0.228 + .006 0.096 + .007 0.093 + .015 2.251 + .006 0.086 + .005 0.189 11350 23751 0.062 6200 19.25 J2 J21
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    218 2.165 0.078 + .003 2.415 + .040 0.228 + .006 0.228 + .006 0.098 + .007 0.093 + .015 2.295 + .006 0.086 + .005 0.195 12050 24461 0.062 6200 20.548 J2 J21
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    218 2.188 0.078 + .003 2.415 + .040 0.228 + .006 0.228 + .006 0.098 + .007 0.093 + .015 2.318 + .006 0.086 + .005 0.195 12050 24461 0.062 6200 20.548 J2 J21
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    225 2.25 0.078 + .003 2.490 + .040 0.228 + .006 0.228 + .006 0.099 + .007 0.093 + .015 2.382 + .006 0.086 + .005 0.198 12600 25223 0.062 6200 20.35 J2 J21
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    231 2.312 0.078 + .003 2.560 + .040 0.228 + .006 0.228 + .006 0.1 + .007 0.093 + .015 2.45 + .006 0.086 + .005 0.207 13550 25832 0.062 6200 22.352 J2 J21
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    237 2.375 0.078 + .003 2.630 + .040 0.228 + .006 0.228 + .006 0.102 + .007 0.093 + .015 2.517 + .006 0.086 + .005 0.213 14300 26542 0.062 6200 23.738 J2 J21
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    244 2.44 0.078 + .003 2.702 + .040 0.228 + .006 0.228 + .006 0.103 + .007 0.11 + .015 2.584 + .006 0.086 + .005 0.216 14900 27304 0.062 6200 24.684 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    250 2.5 0.078 + .003 2.775 + .040 0.248 + .006 0.248 + .006 0.114 + .012 0.128 + .000 2.648 + .006 0.086 + .005 0.222 15650 28014 0.062 6200 30.749 J3 J31
    – .003 – .030 – .006 – .006 – .000 – .008 -.006 -.000
    250 2.531 0.078 + .003 2.775 + .040 0.248 + .006 0.248 + .006 0.114 + .012 0.128 + .000 2.681 + .006 0.086 + .005 0.225 15650 28014 0.062 6200 30.749 J3 J31
    – .003 – .030 – .006 – .006 – .000 – .008 -.006 -.000
    256 2.562 0.093 + .003 2.844 + .040 0.26 + .006 0.26 + .006 0.109 + .007 0.11 + .015 2.714 + .006 0.103 + .005 0.228 16500 34206 0.07 9000 34.122 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    262 2.625 0.093 + .003 2.910 + .040 0.26 + .006 0.26 + .006 0.111 + .007 0.11 + .015 2.781 + .006 0.103 + .005 0.234 17350 35068 0.07 9000 34.454 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    268 2.677 0.093 + .003 2.980 + .040 0.26 + .006 0.26 + .006 0.113 + .007 0.11 + .015 2.837 + .006 0.103 + .005 0.24 18250 35931 0.072 9000 38.898 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    268 2.688 0.093 + .003 2.980 + .040 0.26 + .006 0.26 + .006 0.113 + .007 0.11 + .015 2.848 + .006 0.103 + .005 0.24 18250 35931 0.072 9000 38.898 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    275 2.75 0.093 + .003 3.050 + .040 0.26 + .006 0.26 + .006 0.115 + .007 0.11 + .015 2.914 + .006 0.103 + .005 0.246 19200 36642 0.074 9000 38.474 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    281 2.812 0.093 + .003 3.121 + .040 0.26 + .006 0.26 + .006 0.115 + .007 0.11 + .015 2.98 + .006 0.103 + .005 0.252 20050 37504 0.07 9000 39.734 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    281 2.835 0.093 + .003 3.121 + .040 0.26 + .006 0.26 + .006 0.115 + .007 0.11 + .015 3.006 + .006 0.103 + .005 0.255 20050 37504 0.07 9000 39.734 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    287 2.875 0.093 + .003 3.191 + .040 0.26 + .006 0.26 + .006 0.12 + .007 0.11 + .015 3.051 + .006 0.103 + .005 0.264 21500 38367 0.074 9000 42.986 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    300 2.953 0.093 + .003 3.325 + .040 0.26 + .006 0.26 + .006 0.122 + .007 0.11 + .015 3.135 + .006 0.103 + .005 0.273 23150 40093 0.074 9000 44.095 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    300 3 0.093 + .003 3.325 + .040 0.26 + .006 0.26 + .006 0.122 + .007 0.11 + .015 3.182 + .006 0.103 + .005 0.273 23150 40093 0.074 9000 44.095 J3 J31
    – .003 – .030 – .006 – .006 – .007 – .002 -.006 -.000
    306 3.062 0.109 + .003 3.418 + .055 0.315 + .008 0.315 + .008 0.126 + .008 0.125 + .015 3.248 + .006 0.12 + .005 0.279 24100 47807 0.078 12000 60.5 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    312 3.125 0.109 + .003 3.488 + .055 0.315 + .008 0.315 + .008 0.129 + .008 0.125 + .015 3.315 + .006 0.12 + .005 0.285 25200 48822 0.079 12000 64.46 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    315 3.149 0.109 + .003 3.523 + .055 0.315 + .008 0.315 + .008 0.129 + .008 0.125 + .015 3.341 + .006 0.12 + .005 0.288 25700 49329 0.08 12000 64.649 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    315 3.156 0.109 + .003 3.523 + .055 0.315 + .008 0.315 + .008 0.129 + .008 0.125 + .015 3.348 + .006 0.12 + .005 0.288 25700 49329 0.08 12000 64.649 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    325 3.25 0.109 + .003 3.623 + .055 0.315 + .008 0.315 + .008 0.135 + .008 0.125 + .015 3.446 + .006 0.12 + .005 0.294 27000 50750 0.083 12000 66.469 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    334 3.346 0.109 + .003 3.734 + .055 0.315 + .008 0.315 + .008 0.14 + .008 0.125 + .015 3.546 + .006 0.12 + .005 0.3 28300 52374 0.086 12000 67.628 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    347 3.469 0.109 + .003 3.857 + .055 0.315 + .008 0.315 + .008 0.144 + .008 0.125 + .015 3.675 + .006 0.12 + .005 0.309 30200 54201 0.086 12000 69.058 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    350 3.5 0.109 + .003 3.890 + .055 0.315 + .008 0.315 + .008 0.142 + .008 0.125 + .015 3.71 + .006 0.12 + .005 0.315 31200 54709 0.088 12000 69.953 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    354 3.543 0.109 + .003 3.936 + .055 0.315 + .008 0.315 + .008 0.142 + .008 0.125 + .015 3.755 + .006 0.12 + .005 0.318 31800 55419 0.088 12000 70.62 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    354 3.562 0.109 + .003 3.936 + .055 0.315 + .008 0.315 + .008 0.142 + .008 0.125 + .015 3.776 + .006 0.12 + .005 0.321 31800 55419 0.088 12000 70.62 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    362 3.625 0.109 + .003 4.024 + .055 0.315 + .008 0.315 + .008 0.15 + .008 0.125 + .015 3.841 + .006 0.12 + .005 0.324 33200 56739 0.093 12000 75.79 J3 J31
    – .003 – .055 – .008 – .008 – .008 – .002 -.006 -.000
    375 3.74 0.109 + .003 4.157 + .065 0.315 + .008 0.315 + .008 0.155 + .008 0.125 + .015 3.964 + .006 0.12 + .005 0.336 35600 58566 0.096 12000 78.188 J3 J31
    – .003 – .065 – .008 – .008 – .008 – .002 -.006 -.000
    375 3.75 0.109 + .003 4.157 + .065 0.315 + .008 0.315 + .008 0.155 + .008 0.125 + .015 3.974 + .006 0.12 + .005 0.336 35600 58566 0.096 12000 78.188 J3 J31
    – .003 – .065 – .008 – .008 – .008 – .002 -.006 -.000
    387 3.875 0.109 + .003 4.291 + .065 0.331 + .012 0.331 + .012 0.16 + .008 0.125 + .015 4.107 + .006 0.12 + .005 0.348 38000 60494 0.098 12000 89.408 J3 J31
    – .003 – .065 – .012 – .012 – .008 – .002 -.006 -.000
    393 3.938 0.109 + .003 4.358 + .065 0.331 + .012 0.331 + .012 0.161 + .008 0.125 + .015 4.174 + .006 0.12 + .005 0.354 39300 61611 0.099 12000 88.44 J3 J31
    – .003 – .065 – .012 – .012 – .008 – .002 -.006 -.000
    400 4 0.109 + .003 4.424 + .065 0.331 + .012 0.331 + .012 0.166 + .008 0.125 + .015 4.24 + .006 0.12 + .005 0.36 40700 62626 0.102 12000 91.564 J3 J31
    – .003 – .065 – .012 – .012 – .008 – .002 -.006 -.000
    412 4.125 0.109 + .003 4.558 + .065 0.331 + .012 0.331 + .012 0.171 + .009 0.125 + .015 4.365 + .006 0.12 + .005 0.36 42000 64554 0.104 12000 95.04 J3 J31
    – .003 – .065 – .012 – .012 – .009 – .002 -.006 -.000
    425 4.25 0.109 + .003 4.691 + .065 0.331 + .012 0.331 + .012 0.18 + .009 0.125 + .015 4.49 + .006 0.12 + .005 0.36 43200 66483 0.11 12000 99.946 J3 J31
    – .003 – .065 – .012 – .012 – .009 – .002 -.006 -.000
    433 4.331 0.109 + .003 4.756 + .065 0.366 + .012 0.366 + .012 0.18 + .009 0.156 + .020 4.571 + .006 0.12 + .005 0.36 44500 67599 0.114 12000 104.698 J4 J41
    – .003 – .065 – .012 – .012 – .009 – .005 -.006 -.000
    450 4.5 0.109 + .003 4.940 + .065 0.366 + .012 0.366 + .012 0.181 + .009 0.156 + .020 4.74 + .006 0.12 + .005 0.36 45800 70340 0.117 12000 108.592 J4 J41
    – .003 – .065 – .012 – .012 – .009 – .005 -.006 -.000
    462 4.625 0.109 + .003 5.076 + .065 0.366 + .012 0.366 + .012 0.183 + .009 0.156 + .020 4.865 + .006 0.12 + .005 0.36 47000 72370 0.121 12000 121 J4 J41
    – .003 – .065 – .012 – .012 – .009 – .005 -.006 -.000
    475 4.724 0.109 + .003 5.213 + .065 0.366 + .012 0.366 + .012 0.183 + .009 0.156 + .020 4.969 + .006 0.12 + .005 0.366 49000 74298 0.123 12000 120.604 J4 J41
    – .003 – .065 – .012 – .012 – .009 – .005 -.006 -.000
    475 4.75 0.109 + .003 5.213 + .065 0.366 + .012 0.366 + .012 0.183 + .009 0.156 + .020 4.995 + .006 0.12 + .005 0.366 49000 74298 0.123 12000 120.604 J4 J41
    – .003 – .065 – .012 – .012 – .009 – .005 -.006 -.000
    500 5 0.109 + .003 5.485 + .065 0.366 + .012 0.366 + .012 0.186 + .009 0.156 + .020 5.26 + .006 0.12 + .005 0.39 55000 78155 0.126 12000 128.128 J4 J41
    – .003 – .065 – .012 – .012 – .009 – .005 -.006 -.000
    525 5.25 0.125 + .004 5.770 + .065 0.378 + .012 0.378 + .012 0.198 + .009 0.156 + .020 5.52 + .007 0.139 + .006 0.405 60000 94091 0.134 15000 162.778 J4 J41
    – .004 – .065 – .012 – .012 – .009 – .005 -.007 -.000
    537 5.375 0.125 + .004 5.910 + .065 0.378 + .012 0.378 + .012 0.198 + .009 0.156 + .020 5.65 + .007 0.139 + .006 0.405 61500 96324 0.134 15000 167.398 J4 J41
    – .004 – .065 – .012 – .012 – .009 – .005 -.007 -.000
    550 5.5 0.125 + .004 6.066 + .065 0.378 + .012 0.378 + .012 0.198 + .009 0.156 + .020 5.77 + .007 0.139 + .006 0.405 63300 98658 0.134 15000 172.37 J4 J41
    – .004 – .065 – .012 – .012 – .009 – .005 -.007 -.000
    575 5.75 0.125 + .004 6.336 + .065 0.378 + .012 0.378 + .012 0.198 + .009 0.156 + .020 6.02 + .007 0.139 + .006 0.405 65900 103124 0.134 15000 177.474 J4 J41
    – .004 – .065 – .012 – .012 – .009 – .005 -.007 -.000
    600 6 0.125 + .004 6.620 + .065 0.378 + .012 0.378 + .012 0.198 + .009 0.156 + .020 6.27 + .007 0.139 + .006 0.405 68600 107489 0.134 15000 188.276 J4 J41
    – .004 – .065 – .012 – .012 – .009 – .005 -.007 -.000
    625 6.25 0.156 + .005 6.895 + .080 0.472 + .012 0.472 + .012 0.211 + .009 0.187 + .020 6.53 + .008 0.174 + .008 0.42 741000 139766 0.142 23000 303.6 J5 J51
    – .005 – .080 – .012 – .012 – .009 – .005 -.008 -.000
    650 6.5 0.156 + .005 7.170 + .080 0.472 + .012 0.472 + .012 0.219 + .009 0.187 + .020 6.79 + .008 0.174 + .008 0.435 79900 145450 0.145 23000 319 J5 J51
    – .005 – .080 – .012 – .012 – .009 – .005 -.008 -.000
    662 6.625 0.156 + .005 7.308 + .080 0.531 + .012 0.531 + .012 0.221 + .009 0.187 + .020 6.925 + .008 0.174 + .008 0.45 84200 148190 0.146 23000 340.56 J5 J51
    – .005 – .080 – .012 – .012 – .009 – .005 -.008 -.000
    675 6.75 0.156 + .005 7.445 + .080 0.531 + .012 0.531 + .012 0.224 + .009 0.187 + .020 7.055 + .008 0.174 + .008 0.456 87000 151032 0.15 23000 355.388 J5 J51
    – .005 – .080 – .012 – .012 – .009 – .005 -.008 -.000
    700 7 0.156 + .005 7.720 + .080 0.531 + .012 0.531 + .012 0.232 + .009 0.187 + .020 7.315 + .008 0.174 + .008 0.471 93100 156615 0.157 23000 376.64 J5 J51
    – .005 – .080 – .012 – .012 – .009 – .005 -.008 -.000
    725 7.25 0.187 + .005 7.995 + .090 0.551 + .012 0.551 + .012 0.238 + .010 0.187 + .020 7.575 + .008 0.209 + .008 0.486 99600 194373 0.162 34000 490.6 J5 J51
    – .005 – .090 – .012 – .012 – .010 – .005 -.008 -.000
    750 7.5 0.187 + .005 8.270 + .090 0.551 + .012 0.551 + .012 0.247 + .010 0.187 + .020 7.84 + .008 0.209 + .008 0.51 108100 201173 0.166 34000 508.2 J5 J51
    – .005 – .090 – .012 – .012 – .010 – .005 -.008 -.000
    *per 1000 pieces

    *All information is strictly informative


    If you don’t see what you’re looking for just call one of our team members at +91-22-6659 5285 Or Mail Us inquiry@raajsagarsteels.com. No inquiry is too large or too small, we specialize in locating hard to find items. If you do see what you are looking, we would love to assist you and give you a quote today!

    24 Hrs. Online Whatsapp Number   Contact Person: Mr. Milap Mehta - Cell: +91-9869 532 584
