    Table of Content

    Types of Eye Bolts - Stainless Steel Eye Bolts

    Raaj Sagar Steels Stainless provides two grades of stainless steel eye bolts; 304 and 316. The grade 304 stainless steel eye bolts are wire formed and feature welded and unwelded eye types in Standard and Metric units of measurement. Eye bolts that are grade 316 feature three different eye types and all use the Standard unit of measurement. Most eye bolts are supplied with a washer and nut (more available upon request).

    Stainless Steel Metric Shoulder Eye Bolt Stainless Steel Unwelded Eye Bolt Stainless Steel Unwelded Eye Bolt

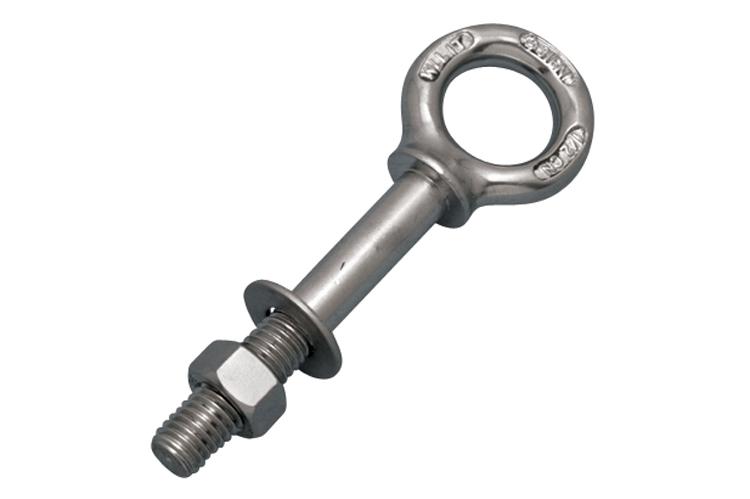

    Metric Shoulder Eye Bolt

    The Metric Shoulder Eye Bolt has forged markings of 316_NM. size and WLL in tons. All threads are...
    Grade: 316_NM Stainless Steel

    Unwelded Eye Bolt
    The Unwelded Eye Bolt is a standard UNC thread and includes 1 nut. It is available in sizes.
    Grade: 316 Stainless Steel
    UNC Thread

    Unwelded Eye Bolt
    The Unwelded Eye Bolt is a standard UNC thread and includes 1 nut. It is available in sizes
    Grade: 304 Stainless Steel
    UNC Thread

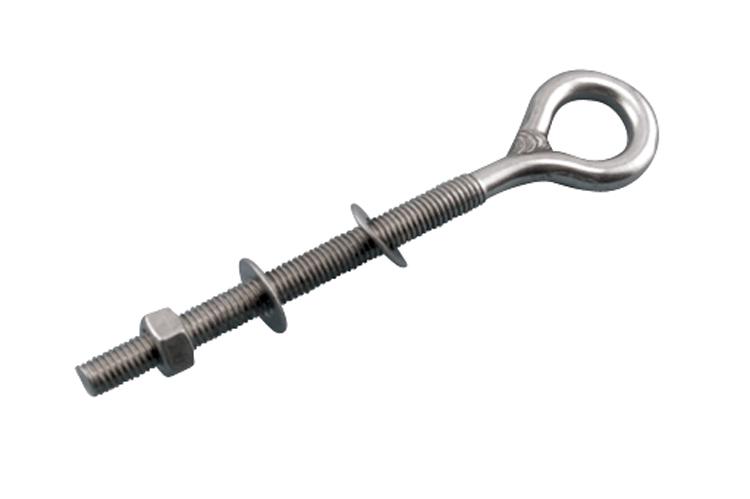

    Stainless Steel Welded Eye Bolt Stainless Steel Stainless Steel Metric Welded Eye Bolt Stainless Steel Lag Eye Screw

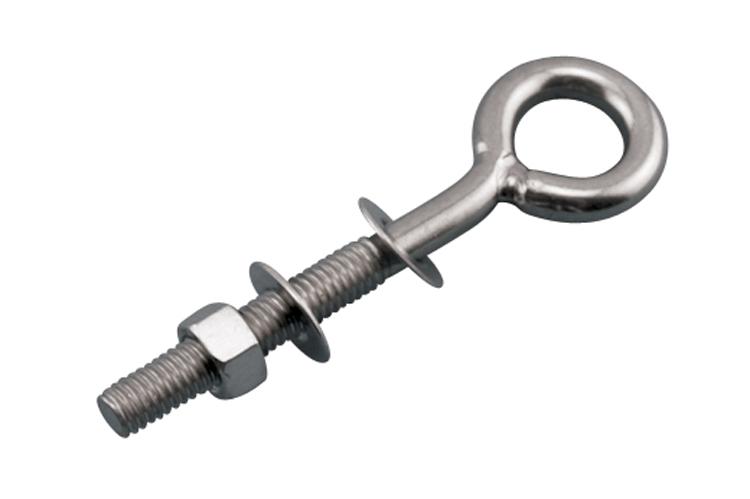

    Welded Eye Bolt
    The Welded Eye Bolt is a standard UNC thread and includes 1 nut and 2 washers. This eye bolt is...
    Grade: 316 Stainless Steel
    UNC Thread

    Metric Welded Eye Bolt
    The Metric Welded Eye Bolt includes 1 nut and 2 washers. It is available in sizes ranging from 5...
    Grade: 304 Stainless Steel

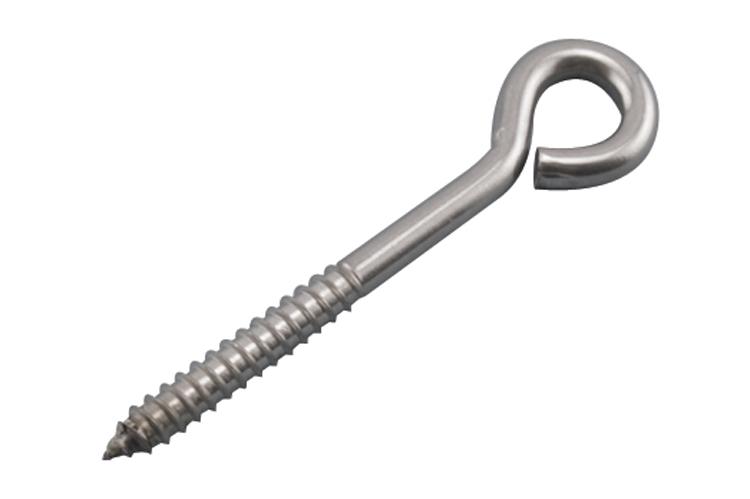

    Lag Eye Screw
    The Lag Eye Screw is available in sizes ranging from 5/32" to 3/8" to fit every project. This eye...
    Grade: 304 Stainless Steel
    Stainless Steel Lag Ring Bolt Stainless Steel Shoulder Ring Bolt Stainless Steel Plain Ring Bolt

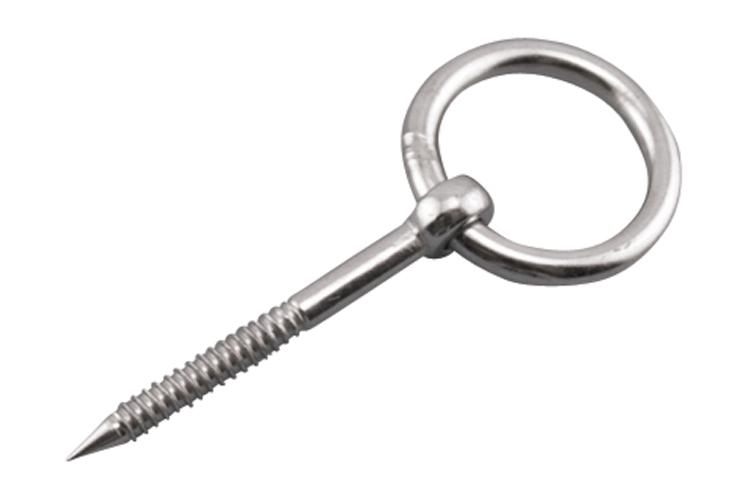

    Lag Ring Bolt
    The Lag Ring Bolt is available in sizes ranging from 1/4" to 1/2" to fit every project. This ring...
    Grade: 304 Stainless Steel

    Shoulder Ring Bolt
    The Shoulder Ring Bolt includes 1 nut and 1 washer and is UNC thread. It is available in sizes...
    Grade: 316 Stainless Steel
    UNC Thread

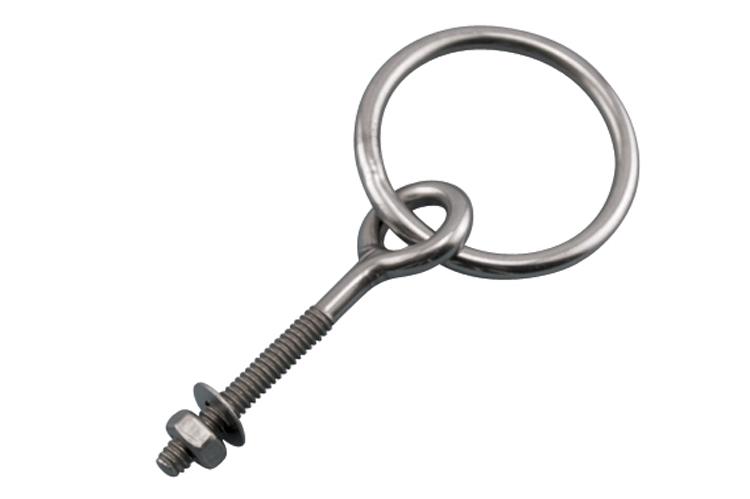

    Plain Ring Bolt

    The Plain Ring Bolt includes 1 nut and 1 washer and is UNC thread. It is available in sizes...
    Grade: 316 Stainless Steel
    UNC Thread

    Stainless Steel Shoulder Eye Bolt Stainless Steel Welded Eye Bolt Stainless Steel Plain Eye Bolt
    Shoulder Eye Bolt

    The Shoulder Eye Bolt includes 1 nut and 1 washer and is UNC thread. It is available in sizes...
    Grade: 316_NM Stainless Steel
    UNC Thread

    Welded Eye Bolt
    The Welded Eye Bolt is a standard UNC thread and includes 1 nut and 2 washers. It is available in...
    Grade: 304 Stainless Steel
    UNC Thread

    Plain Eye Bolt

    The Plain Eye Bolt includes 1 nut and 1 washer and is UNC thread. It is available in sizes...
    Grade: 316_NM Stainless Steel
    UNC Thread

    Stainless Steel Metric Plain Eye Bolt Stainless Steel Heavy Duty Special Eye Bolt Stainless Steel Custom Eye Bolt

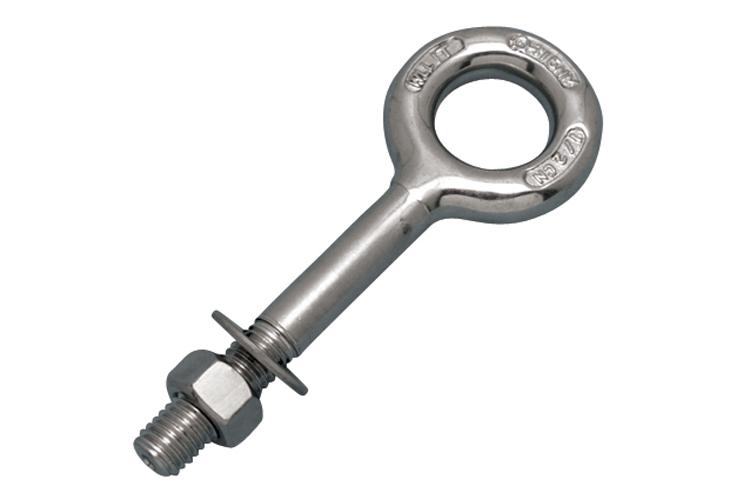

    Metric Plain Eye Bolt

    The Metric Plain Eye Bolt has forged markings of 316_NM, size and WLL in tons. All threads are...
    Grade: 316_NM Stainless Steel

    Heavy Duty Special Eye Bolt

    The Heavy Duty Special Eye Bolt features a fully threaded rod welded into an eye nut. It includes...
    Grade: 316 Stainless Steel
    UNC Thread

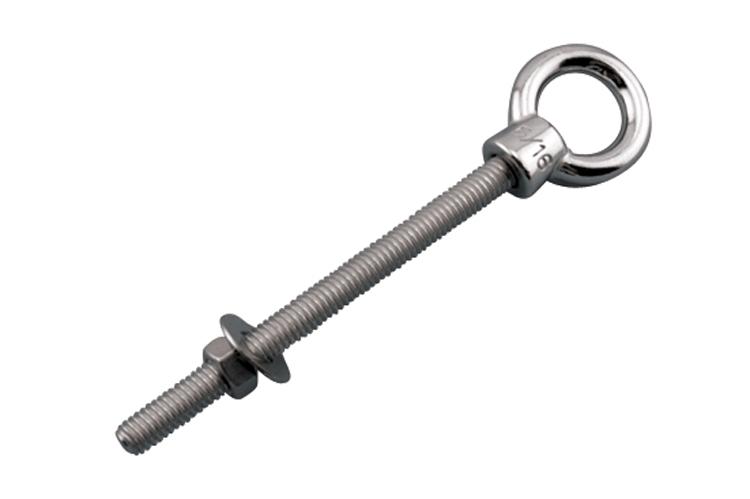

    Custom Eye Bolt

    The Custom Eye Bolt features a fully threaded rod welded into an eye nut. It includes 1 nut and...
    Grade: 316 Stainless Steel
    UNC Thread

    Stainless Steel Rod End Blank Stainless Steel Machine Eye Bolt Stainless Steel Eye Nut

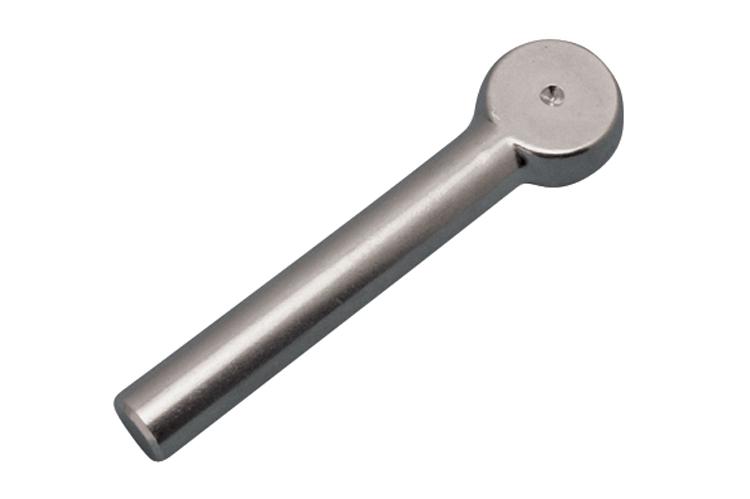

    Rod End Blank

    The Rod End Blank can be made into a customized eye bolt to fit your specific dimensions and...
    Grade: 304 Stainless Steel

    Machine Eye Bolt

    The Machine Eye Bolt is UNC thread and available in sizes ranging from 1/4" to 1" to fit every...
    Grade: 316 Stainless Steel
    UNC Thread

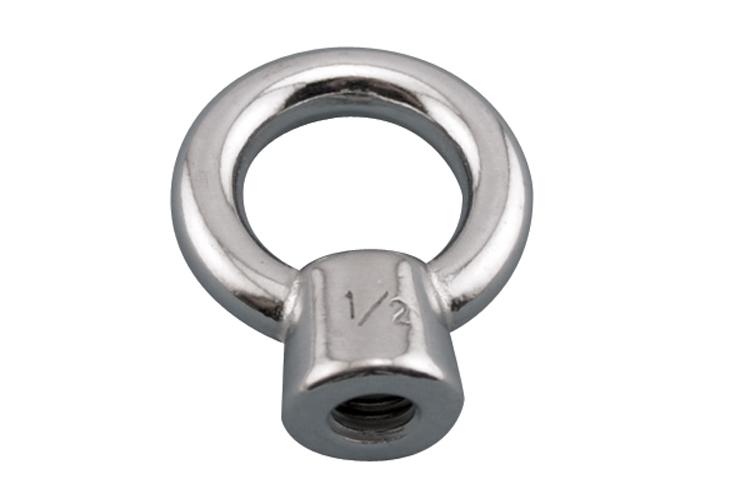

    Eye Nut

    The Eye Nut is UNC thread and available in sizes ranging from 1/4" to 1" to fit every project....
    Grade: 316 Stainless Steel
    UNC Thread

    Stainless Steel Lifting Eye Nut Stainless Steel Metric Lifting Eye Nut Stainless Steel Eye End

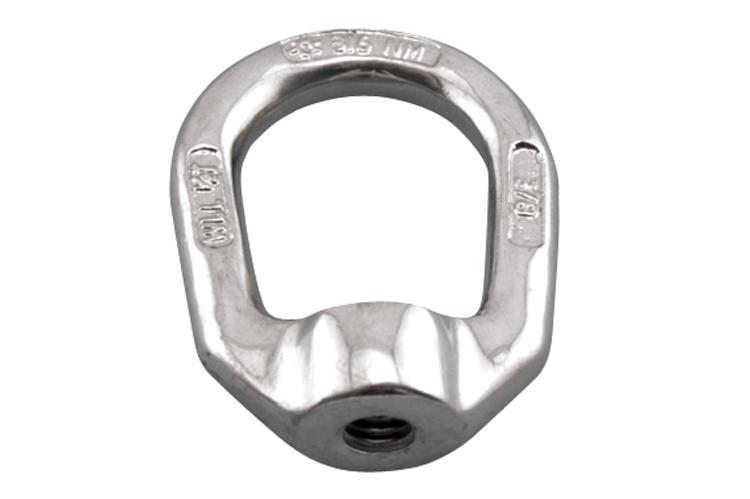

    Lifting Eye Nut

    The Lifting Eye Nut is UNC thread and available in sizes ranging from 1/4" to 3/4" to fit every...
    Grade: 316_NM Stainless Steel
    UNC Thread

    Metric Lifting Eye Nut

    The Metric Lifting Eye Nut is available in sizes ranging from M6 to M18 to fit every project....
    Grade: 316_NM Stainless Steel
    UNC Thread

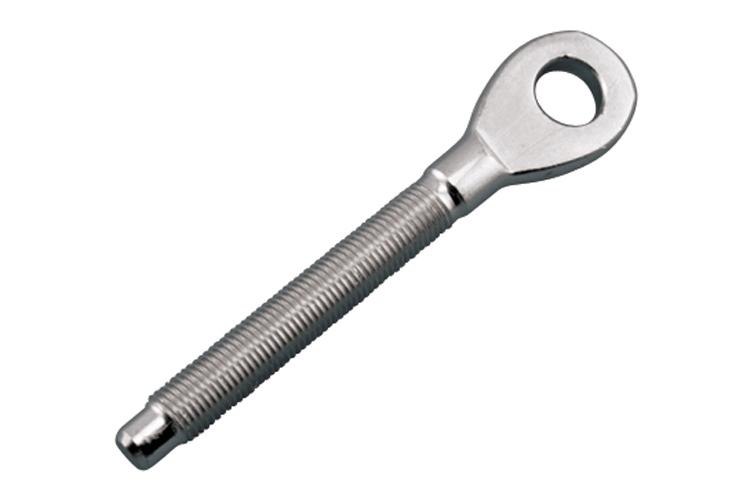

    Eye End

    The Eye End is UNF thread and available in sizes ranging from 1/4" to 5/8" to fit every project....
    Grade: 316 Stainless Steel
    UNF Thread

    Stainless Steel Pad Eye Bolt Stainless Steel Plain Eye Rivet Stainless Steel Shoulder Eye Rivet

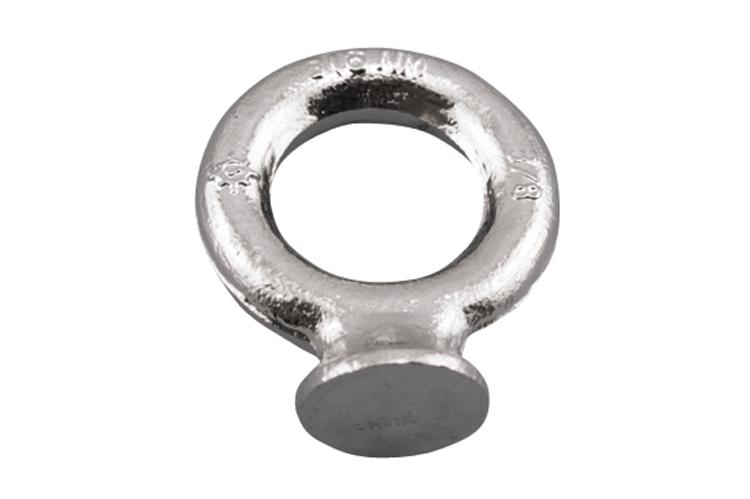

    Pad Eye

    The Pad Eye is offered in a variety of sizes from 3/16" to 3/4" and is ideal for marine,...
    Grade: 316_NM Stainless Steel

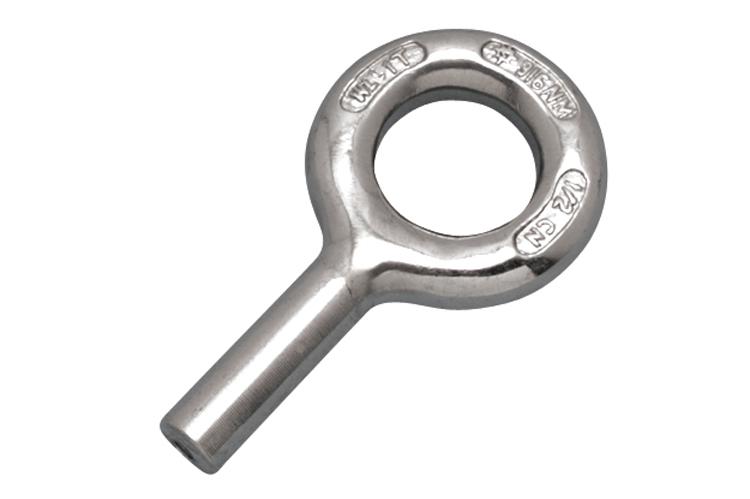

    Plain Eye Rivet

    The Plain Eye Rivet is available in a 1/2" size. The shaft is machine for a perfect fit. This...
    Grade: 316_NM Stainless Steel

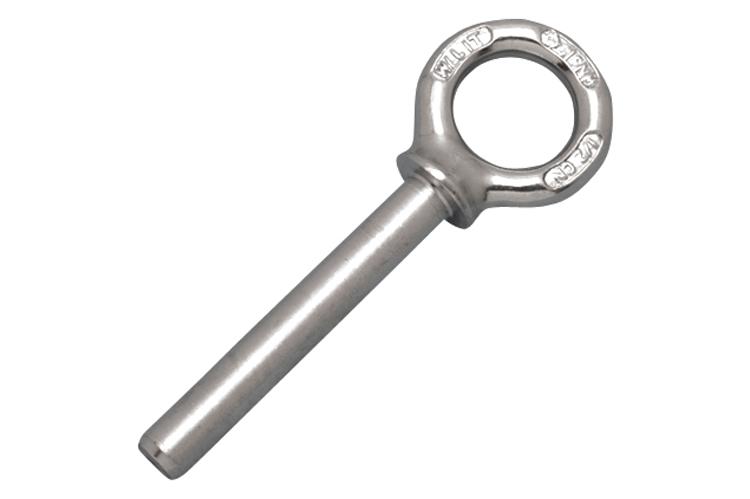

    Shoulder Eye Rivet

    The Shoulder Eye Rivet features a machined shoulder and shaft for perfect seating and fit. It is...
    Grade: 316_NM Stainless Steel

    Stainless Steel Threaded Rod Stainless Steel Custom Rod End Stainless Steel Jaw Eye Bolt

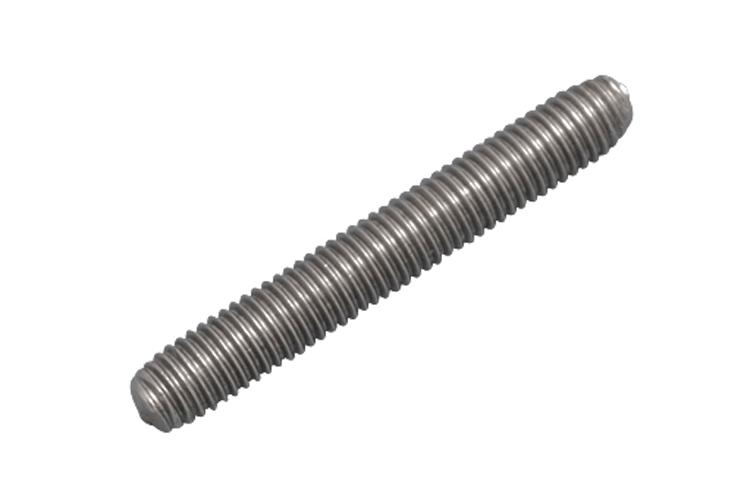

    Threaded Rod

    The Threaded Rod is UNC thread and can be welded to eye nuts for a custom eye bolt. This rod is...
    Grade: 316 Stainless Steel
    UNC Thread

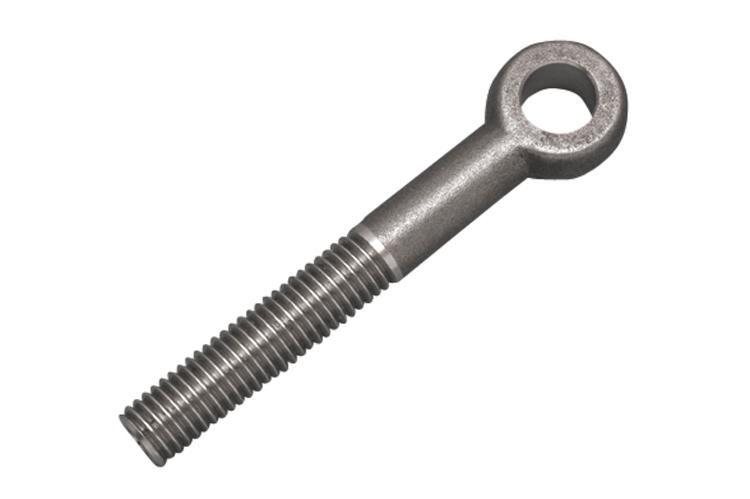

    Custom Rod End

    The Custom Rod End can be made to fit your specific dimensions and specifications. It is...
    Grade: 304 Stainless Steel

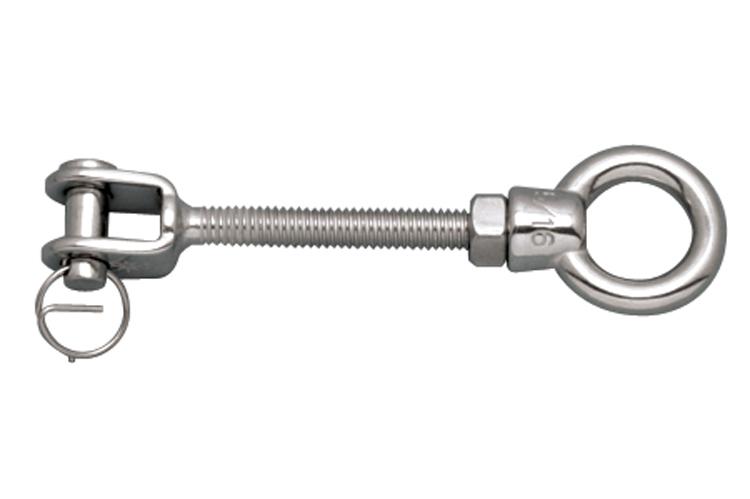

    Jaw Eye

    The Jaw Eye is made from grade 316 stainless steel for corrosion resistance and durability. Eye...
    Grade: 316 Stainless Steel

    Stainless Steel Toggle Eye Bolt Stainless Steel Wall Toggle Eye Bolt

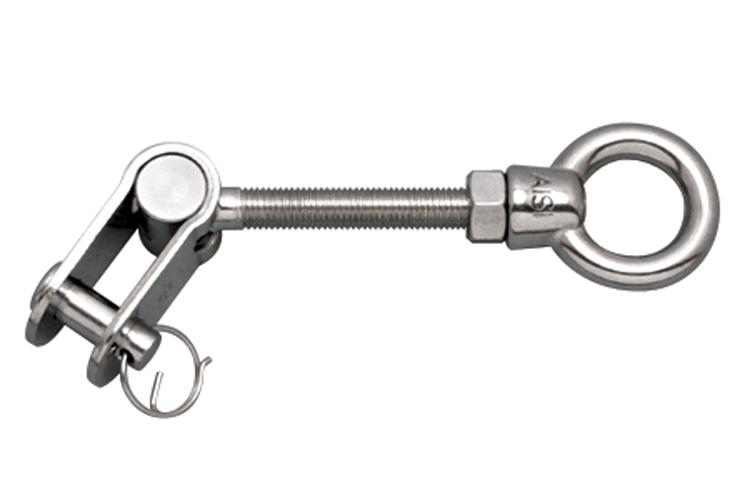

    Toggle Eye

    The Toggle Eye is made from grade 316 stainless steel for corrosion resistance and durability....
    Grade: 316 Stainless Steel

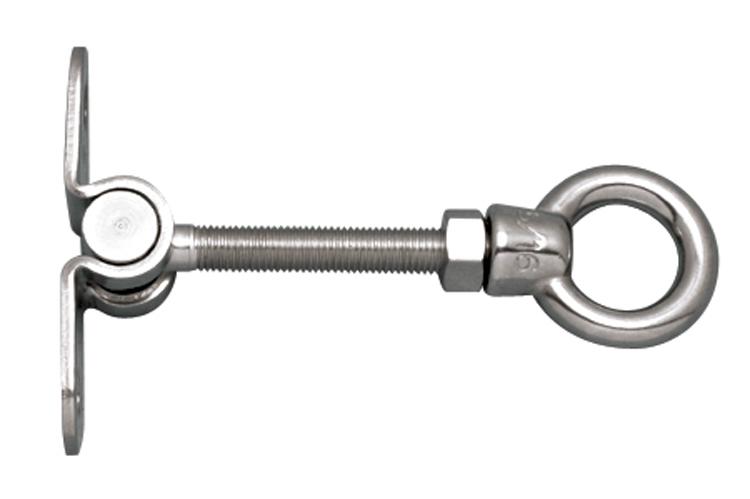

    Wall Toggle Eye

    The Wall Toggle Eye is made from grade 316 stainless steel with pivoting capabilities up to 180...
    Grade: 316 Stainless Steel

    Stainless Steel Forged Eye Nut

    Manufacturers Suppliers & Stockist of Stainless Steel / Duplex & Super Duplex Stainless Steel Forged Eye Nut in India

    Compleate Information About 316 Stainless Steel Metric Shoulder Eye Bolt

    Metric Shoulder Eye Bolt

    Grade: 316-NM Stainless Steel

    Metric Shoulder Eye Bolt

    The Metric Shoulder Eye Bolt has forged markings of 316-NM. size and WLL in tons. All threads are metric. One nut and washer are included. Extra nuts and washers are available from stock. Shaft and underside of shoulder are machined for perfect fit and seating.

    Specifications

    Metric Shoulder Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WLL
    (lb)
    WT
    (lb)
    S0314-0705M M6 1.50" 2.00" 0.50" M6 x 1.0 500 0.06
    S0314-0710M M6 2.50" 4.00" 0.50" M6 x 1.0 500 0.08
    S0314-0803M M8 0.38" 1.38" 0.63" M8 x 1.25 800 0.12
    S0314-0806M M8 1.50" 2.25" 0.63" M8 x 1.25 800 0.12
    S0314-0810M M8 2.50" 4.25" 0.63" M8 x 1.25 800 0.14
    S0314-1002M M10 0.75" 0.75" 0.75" M10 x 1.5 1,200 0.20
    S0314-1003M M10 1.00" 1.50" 0.75" M10 x 1.5 1,200 0.20
    S0314-1006M M10 1.50" 2.50" 0.75" M10 x 1.5 1,200 0.20
    S0314-1012M M10 2.50" 4.50" 0.75" M10 x 1.5 1,200 0.26
    S0314-1304M M12 1.00" 1.50" 1.00" M12 x 1.75 2,150 0.30
    S0314-1308M M12 1.50" 3.25" 1.00" M12 x 1.75 2,150 0.40
    S0314-1315M M12 3.00" 6.00" 1.00" M12 x 1.75 2,150 0.56
    S0314-1603M M16 0.75" 1.00" 1.25" M16 x 2.0 3,440 0.60
    S0314-1605M M16 1.75" 2.00" 1.25" M16 x 2.0 3,440 0.64
    S0314-1610M M16 2.00" 4.00" 1.25" M16 x 2.0 3,440 0.80
    S0314-1615M M16 3.00" 6.00" 1.25" M16 x 2.0 3,440 1.00
    S0314-2003M M18 1.00" 1.00" 1.50" M18 x 2.5 5,140 0.94
    S0314-2005M M18 1.75" 2.00" 1.50" M18 x 2.5 5,140 1.12
    S0314-2012M M18 2.00" 4.50" 1.50" M18 x 2.5 5,140 1.40
    S0314-2015M M18 3.00" 6.00" 1.50" M18 x 2.5 5,140 1.58
    S0314-2213M M20 2.50" 5.00" 1.75" M20 x 2.5 7,130 2.32
    S0314-2504M M24 1.38" 1.38" 2.00" M24 x 3.0 9,370 2.56
    S0314-2506M M24 2.25" 2.50" 2.00" M24 x 3.0 9,370 2.64
    S0314-2515M M24 3.00" 6.00" 2.00" M24 x 3.0 9,370 3.44

    316 Stainless Steel Unwelded Eye Bolt Manufacturer and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Unwelded Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Unwelded Eye Bolt

    The Unwelded Eye Bolt is a standard UNC thread and includes 1 nut. It is available in sizes ranging from #6 to 3/4" to fit every project. This eye bolt is made from grade 316 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Unwelded Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WIRE DIA. WLL
    (lb)
    WT
    (lb)
    S0310-03020X #6 0.63" 0.75" 0.25" 6-32 0.12" 30 0.02
    S0310-04028X #8 1.00" 1.13" 0.25" 8-32 0.15" 50 0.02
    S0310-05025X 3/16" 0.88" 1.00" 0.38" 10-24 0.16" 100 0.02
    S0310-05040X 3/16" 1.25" 1.38" 0.31" 10-24 0.16" 100 0.03
    S0310-05050X 3/16" 1.00" 2.00" 0.38" 10-24 0.16" 100 0.03
    S0310-05075X 3/16" 1.50" 3.00" 0.38" 10-24 0.16" 100 0.03
    S0310-07025X 1/4" 0.88" 1.00" 0.50" 1/4" -20 0.21" 200 0.04
    S0310-07038X 1/4" 1.25" 1.50" 0.50" 1/4" -20 0.21" 200 0.04
    S0310-07050X 1/4" 1.25" 2.00" 0.50" 1/4" -20 0.21" 200 0.05
    S0310-07060X 1/4" 1.25" 2.50" 0.50" 1/4" -20 0.21" 200 0.05
    S0310-07075X 1/4" 1.50" 3.00" 0.50" 1/4" -20 0.21" 200 0.06
    S0310-07090X 1/4" 2.00" 3.50" 0.50" 1/4" -20 0.21" 200 0.07
    S0310-07100X 1/4" 2.50" 4.00" 0.50" 1/4" -20 0.21" 200 0.08
    S0310-07125X 1/4" 3.00" 5.00" 0.50" 1/4" -20 0.21" 200 0.08
    S0310-07150X 1/4" 3.75" 6.00" 0.50" 1/4" -20 0.21" 200 0.09
    S0310-08025X 5/16" 0.88" 1.00" 0.63" 5/16" -18 0.27" 350 0.07
    S0310-08050X 5/16" 1.25" 2.00" 0.63" 5/16" -18 0.27" 350 0.08
    S0310-08075X 5/16" 1.50" 3.00" 0.63" 5/16" -18 0.27" 350 0.10
    S0310-08090X 5/16" 2.00" 3.50" 0.63" 5/16" -18 0.27" 350 0.11
    S0310-08100X 5/16" 2.50" 4.00" 0.63" 5/16" -18 0.27" 350 0.13
    S0310-08125X 5/16" 3.00" 5.00" 0.63" 5/16" -18 0.27" 350 0.15
    S0310-08150X 5/16" 3.75" 6.00" 0.63" 5/16" -18 0.27" 350 0.17
    S0310-10025X 3/8" 0.88" 1.00" 0.75" 3/8" -16 0.33" 500 0.16
    S0310-10050X 3/8" 1.25" 2.00" 0.75" 3/8" -16 0.33" 500 0.18
    S0310-10060X 3/8" 1.50" 2.50" 0.75" 3/8" -16 0.33" 500 0.19
    S0310-10075X 3/8" 1.50" 3.00" 0.75" 3/8" -16 0.33" 500 0.19
    S0310-10090X 3/8" 2.00" 3.50" 0.75" 3/8" -16 0.33" 500 0.20
    S0310-10100X 3/8" 2.50" 4.00" 0.75" 3/8" -16 0.33" 500 0.21
    S0310-10125X 3/8" 3.00" 5.00" 0.75" 3/8" -16 0.33" 500 0.24
    S0310-10150X 3/8" 3.75" 6.00" 0.75" 3/8" -16 0.33" 500 0.26
    S0310-10200X 3/8" 2.50" 7.38" 0.50" 3/8" -16 0.33" 500 0.29
    S0310-10225X 3/8" 2.50" 9.38" 0.50" 3/8" -16 0.33" 500 0.33
    S0310-10300X 3/8" 2.50" 11.38" 0.50" 3/8" -16 0.33" 500 0.37
    S0310-13050X 1/2" 1.50" 2.00" 1.00" 1/2" -13 0.45" 1,000 0.35
    S0310-13100X 1/2" 2.50" 4.00" 1.00" 1/2" -13 0.45" 1,000 0.44
    S0310-13150X 1/2" 3.75" 6.00" 1.00" 1/2" -13 0.45" 1,000 0.53
    S0310-13200X 1/2" 2.50" 7.19" 0.63" 1/2" -13 0.45" 1,000 0.60
    S0310-13225X 1/2" 2.50" 9.19" 0.63" 1/2" -13 0.45" 1,000 0.69
    S0310-13300X 1/2" 2.50" 11.19" 0.63" 1/2" -13 0.45" 1,000 0.78
    S0310-16175X 5/8" 2.50" 7.00" 0.75" 5/8" -11 0.57" 1,400 1.10
    S0310-20175X 3/4" 3.00" 6.94" 0.88" 3/4" -10 0.68" 2,000 1.38
    S0310-20200X 3/4" 3.00" 8.94" 0.88" 3/4" -10 0.68" 2,000 1.59
    S0310-20300X 3/4" 3.00" 11.94" 0.88" 3/4" -10 0.68" 2,000 1.90

    Stainless Steel 304 Unwelded Eye Bolt Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Unwelded Eye Bolt Dimensions / Specifications / Sizes

    Grade: 304 Stainless Steel

    UNC Thread

    Unwelded Eye Bolt

    The Unwelded Eye Bolt is a standard UNC thread and includes 1 nut. It is available in sizes ranging from 3/16" to 1/2" to fit every project. This eye bolt is made from grade 304 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    fasteners/Unwelded Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WIRE DIA. WLL
    (lb)
    WT
    (lb)
    S0310-05025 3/16"  0.88" 1.00" 0.38" 10-24 0.16" 100 0.02
    S0310-05050 3/16" 1.00" 2.00" 0.38"  10-24 0.16" 100 0.03
    S0310-05075 3/16" 1.50" 3.00" 0.38" 10-24 0.16" 100 0.03
    S0310-07025 1/4" 0.88" 1.00" 0.50" 1/4"-20 0.21" 200  0.04
    S0310-07050 1/4" 1.25" 2.00" 0.50" 1/4"-20 0.21" 200 0.05
    S0310-07075 1/4" 1.50" 3.00" 0.50" 1/4"-20 0.21" 200 0.06
    S0310-07100 1/4" 2.50" 4.00" 0.50" 1/4"-20 0.21" 200 0.08
    S0310-07125 1/4" 3.00" 5.00" 0.50" 1/4"-20 0.21" 200 0.08
    S0310-07150 1/4" 4.00" 6.00" 0.50" 1/4"-20 0.21" 200 0.09
    S0310-08013 5/16" 0.38"  0.50" 0.63" 5/16"-18 0.27" 350 0.07
    S0310-08025 5/16" 0.88" 1.00" 0.63" 5/16"-18 0.27" 350 0.08
    S0310-08050 5/16" 1.25" 2.00" 0.63" 5/16"-18 0.27" 350 0.09
    S0310-08075 5/16" 1.50" 3.00" 0.63" 5/16"-18 0.27" 350 0.11
    S0310-08100 5/16" 2.50" 4.00" 0.63"  5/16"-18 0.27" 350 0.13
    S0310-10025 3/8" 0.88" 1.00" 0.75" 3/8"-16 0.33" 500 0.12
    S0310-10050 3/8" 1.25" 2.00" 0.75" 3/8"-16 0.33" 500 0.15
    S0310-10075 3/8" 1.50" 3.00" 0.75" 3/8"-16 0.33" 500 0.17
    S0310-10100 3/8" 2.50" 4.00" 0.75" 3/8"-16 0.33" 500 0.19
    S0310-10125 3/8" 3.00" 5.00" 0.75" 3/8"-16 0.33" 500 0.23
    S0310-10150 3/8" 4.00" 6.00" 0.75" 3/8"-16 0.33" 500 0.24
    S0310-13050 1/2" 1.50" 2.00" 1.00" 1/2"-13 0.43"  1,000 0.33
    S0310-13100 1/2" 2.50" 4.00" 1.00"  1/2"-13 0.43"  1,000 0.42
    S0310-13150 1/2" 4.00" 6.00" 1.00" 1/2"-13 0.43"  1,000 0.51
    S0310-16175 5/8" 2.50" 7.00" 0.75" 5/8"-11 0.57"  1,400 1.10
    S0310-20175 3/4" 3.00" 6.94" 0.88" 3/4"-10 0.68"  2,000 1.38
    S0310-20200 3/4" 3.00" 8.94" 0.88" 3/4"-10 0.68"  2,000 1.59
    S0310-20300 3/4" 3.00" 11.94" 0.88" 3/4"-10 0.68"  2,000 1.90

    316 Stainless Steel Welded Eye Bolt Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Welded Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Welded Eye Bolt

    The Welded Eye Bolt is a standard UNC thread and includes 1 nut and 2 washers. This eye bolt is made from grade 316 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Welded Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WIRE DIA. WLL
    (lb)
    WT
    (lb)
    S0312-13075X 1/2" 2.00" 3" 0.50" 1/2"-13 0.45" 1,800 0.40
    S0312-13100X 1/2" 2.00" 4" 0.50" 1/2"-13 0.45" 1,800 0.44
    S0312-13125X 1/2" 2.00" 5" 0.50" 1/2"-13 0.45" 1,800 0.49
    S0312-13150X 1/2" 2.00" 6" 0.50" 1/2"-13 0.45" 1,800 0.53

    Stainless Steel 304 Metric Welded Eye Bolt Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Metric Welded Eye Bolt Dimensions / Specifications / Sizes

    Grade: 304 Stainless Steel

    The Metric Welded Eye Bolt includes 1 nut and 2 washers. It is available in sizes ranging from 5 mm to 12 mm to fit every project. This eye bolt is made from grade 304 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Metric Welded Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D WIRE DIA. WLL
    (lb)
    WT
    (lb)
    S0313-0560 5 mm 2.00" 2.25" 0.38" 0.17" 250 0.03
    S0313-0580 5 mm 3.12" 3.25" 0.38" 0.17" 250 0.04
    S0313-0640 6 mm 1.25" 1.50" 0.50" 0.21" 400 0.04
    S0313-0660 6 mm 2.00" 2.25" 0.50" 0.21" 400 0.05
    S0313-0680 6 mm 3.12" 3.25" 0.50" 0.21" 400 0.06
    S0313-0810 8 mm 3.50" 4.00" 0.63" 0.28" 600 0.14
    S0313-0880 8 mm 3.00" 3.25" 0.63" 0.28" 600 0.13
    S0313-1010 10 mm 3.50" 4.00" 0.88" 0.36" 1,000 0.25
    S0313-1015 10 mm 5.50" 6.00" 0.88" 0.36" 1,000 0.30
    S0313-1210 12 mm 3.50" 4.00" 1.00" 0.42" 1,800 0.38
    S0313-1215 12 mm 4.00" 6.00" 1.00" 0.42" 1,800 0.46

    304 Stainless Steel Lag Eye Screw Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder / eye bolt heavy duty, eye bolt no threads, eye bolt price list in india, eye bolt specification, eye bolt stainless steel, eye bolt shank, eye bolt types, eye bolt tensile strength, eye bolt dimensions, eye bolt capacity, eye bolt weight rating, eye bolt lifting capacity

    Lag Eye Screw Dimensions / Specifications / Sizes

    Grade: 304 Stainless Steel

    Lag Eye Screw

    The Lag Eye Screw is available in sizes ranging from 5/32" to 3/8" to fit every project. This eye screw is made from grade 304 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Lag Eye Screw Line Drawing

    ITEM A
    (size)
    B C D WIRE DIA. WT
    (lb)
    S0327-04025 5/32" 0.63" 0.75" 0.44" 0.16" 0.01
    S0327-07032 1/4" 0.75" 1.00" 0.63" 0.23" 0.03
    S0327-07065 1/4" 1.87" 2.50" 0.58" 0.23" 0.03
    S0327-07075 1/4" 1.87" 3.00" 0.50" 0.23" 0.03
    S0327-07100 1/4" 1.87" 4.00" 0.50" 0.23" 0.04
    S0327-08032 5/16" 0.75" 1.25" 0.63" 0.26" 0.05
    S0327-08065 5/16" 1.25" 2.50" 0.63" 0.26" 0.06
    S0327-08075 5/16" 1.75" 3.00" 0.63" 0.26" 0.07
    S0327-08100 5/16" 1.75" 4.00" 0.63" 0.26" 0.08
    S0327-08125 5/16" 1.75" 5.00" 0.63" 0.26" 0.10
    S0327-10065 3/8" 1.75" 2.50" 0.75" 0.32" 0.10

    304 Stainless Steel Lag Ring Bolt Manufacturers and Suppliers India | 304 Stainless Steel Lag Ring Bolt | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Lag Ring Bolt Dimensions / Specifications / Sizes

    Grade: 304 Stainless Steel

    Lag Ring Bolt

    The Lag Ring Bolt is available in sizes ranging from 1/4" to 1/2" to fit every project. This ring bolt is made from grade 304 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Lag Ring Bolt Line Drawing

    ITEM A
    (size)
    B C D E WT
    (lb)
    S0329-0007 1/4" 1.50" 2.25" 1.20" 2.75" 0.12
    S0329-0008 5/16" 1.50" 2.25" 2.00" 3.00" 0.22
    S0329-0010 3/8" 2.13" 3.13" 2.40" 3.86" 0.41
    S0329-0013 1/2" 3.25" 4.75" 2.94" 5.65" 0.76

    Stainless Steel Lag Bolts

    Lag Ring Bolt Dimensions / Specifications / Sizes

    Grade: 304 Stainless Steel

    Lag Ring Bolt

    The Lag Ring Bolt is available in sizes ranging from 1/4" to 1/2" to fit every project. This ring bolt is made from grade 304 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Lag Ring Bolt Line Drawing

    ITEM A
    (size)
    B C D E WT
    (lb)
    S0329-0007 1/4" 1.50" 2.25" 1.20" 2.75" 0.12
    S0329-0008 5/16" 1.50" 2.25" 2.00" 3.00" 0.22
    S0329-0010 3/8" 2.13" 3.13" 2.40" 3.86" 0.41
    S0329-0013 1/2" 3.25" 4.75" 2.94" 5.65" 0.76

    316 Stainless Steel Shoulder Ring Bolt | eye bolt sizes, eye bolt strength, eye bolt with shoulder / 316 Stainless Steel Shoulder Ring Bolt Manufacturers and Suppliers India

    Shoulder Ring Bolt Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Shoulder Ring Bolt

    The Shoulder Ring Bolt includes 1 nut and 1 washer and is UNC thread.  It is available in sizes ranging from 1/4" to 3/4" to fit every project. This ring bolt is made from grade 316 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Shoulder Ring Bolt Line Drawing

    ITEM A
    (size)
    B C D E WLL
    (lb)
    WT
    (lb)
    S0330-0750 1/4" 1.50" 2.00" 1.75" 2.94" 250 0.14
    S0330-0855 5/16" 1.50" 2.25" 2.00" 3.50" 400 0.27
    S0330-1012 3/8" 2.50" 4.50" 2.50" 6.00" 600 0.54
    S0330-1065 3/8" 1.50" 2.50" 2.50" 4.00" 600 0.48
    S0330-1315 1/2" 3.00" 6.00" 3.00" 7.75" 1,100 1.17
    S0330-1380 1/2" 1.50" 3.25" 3.00" 5.20" 1,100 1.06
    S0330-1615 5/8" 3.00" 6.00" 3.00" 8.50" 2,000 1.95
    S0330-2015 3/4" 3.00" 6.00" 3.00" 8.87" 2,600 2.89

    Shoulder Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316-NM Stainless Steel

    UNC Thread

    Shoulder Eye Bolt

    The Shoulder Eye Bolt includes 1 nut and 1 washer and is UNC thread. It is available in sizes ranging from 1/4" to 1" to fit every project. This eye bolt is made from grade 316-NM stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Shoulder Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WLL
    (lb)
    WT
    (lb)
    S0314-0705 1/4" 1.50" 2.00" 0.50" 1/4"-20 500 0.06
    S0314-0710 1/4" 2.50" 4.00" 0.50" 1/4"-20 500 0.08
    S0314-0806 5/16" 1.50" 2.25" 0.63" 5/16"-18 800 0.12
    S0314-0810 5/16" 2.50" 4.25" 0.63" 5/16"-18 800 0.14
    S0314-1006 3/8" 1.50" 2.50" 0.75" 3/8"-16 1,200 0.20
    S0314-1012 3/8" 2.50" 4.50" 0.75" 3/8"-16 1,200 0.26
    S0314-1304 1/2" 1.25" 1.50" 1.00" 1/2"-13 2,150 0.30
    S0314-1308 1/2" 1.50" 3.25" 1.00" 1/2"-13 2,150 0.40
    S0314-1315 1/2" 3.00" 6.00" 1.00" 1/2"-13 2,150 0.56
    S0314-1603 5/8" 0.75" 1.00" 1.25" 5/8"-11 3,440 0.60
    S0314-1605 5/8" 1.75" 2.00" 1.25" 5/8"-11 3,440 0.64
    S0314-1610 5/8" 2.00" 4.00" 1.25" 5/8"-11 3,440 0.80
    S0314-1615 5/8" 3.00" 6.00" 1.25" 5/8"-11 3,440 1.00
    S0314-2003 3/4" 0.88" 1.00" 1.50" 3/4"-10 5,140 0.94
    S0314-2005 3/4" 1.75" 2.00" 1.50" 3/4"-10 5,140 1.12
    S0314-2012 3/4" 2.00" 4.50" 1.50" 3/4"-10 5,140 1.40
    S0314-2015 3/4" 3.00" 6.00" 1.50" 3/4"-10 5,140 1.58
    S0314-2213 7/8" 2.50" 5.00" 1.75" 7/8"-9 7,130 2.32
    S0314-2504 1" 1.38" 1.44" 2.00" 1"-8 9,370 2.56
    S0314-2506 1" 2.25" 2.50" 2.00" 1"-8 9,370 2.64
    S0314-2515 1" 3.00" 6.00" 2.00" 1"-8 9,370 3.44

    US Shoulder Bolt Dimensions

    Shoulder Bolt Dimensions
    Shoulder Diameter
    (A)
    Thread
    (C)
    Thread Length
    (D)
    Head Diameter
    (E)
    Head Height
    (F)
    Allen Wrench Size
    1/8" #4-40 3/32" 1/4" 1/8" 5/64"
    3/16" #8-32 3/16" 5/16" 5/32" 3/32"
    1/4" #10-24 3/8" 3/8" 3/16" 1/8"
    5/16" 1/4"-20 7/16" 7/16" 7/32" 5/32"
    3/8" 5/16"-18 1/2" 9/16" 1/4" 3/16"
    1/2" 3/8"-16 5/8" 3/4" 5/16" 1/4"
    5/8" 1/2"-13 3/4" 7/8" 3/8" 5/16"
    3/4" 5/8"-11 7/8" 1" 1/2" 3/8"
    1" 3/4"-10 1" 1-5/16" 5/8" 1/2"
    1-1/4" 7/8"-9 1-1/8" 1-3/4" 3/4" 5/8"

    Shop All 304 Stainless Steel Shoulder Bolts


    NAME THREAD PITCH (COUNT) THREAD STANDARD

    1/8" - #4-40 SHOULDER BOLTS - 304 STAINLESS STEEL

    40 Per Inch

    UNC

    1/4" - #10-24 SHOULDER BOLTS - 304 STAINLESS STEEL

    24 Per Inch

    UNC

    1/4" - #10-32 SHOULDER BOLTS - 304 STAINLESS STEEL

    32 Per Inch

    UNF

    5/16" - 1/4"-20 SHOULDER BOLTS - 304 STAINLESS STEEL

    20 Per Inch

    UNC

    3/8" - 5/16"-18 SHOULDER BOLTS - 304 STAINLESS STEEL

    18 Per Inch

    UNC

    1/2" - 3/8"-16 SHOULDER BOLTS - 304 STAINLESS STEEL

    16 Per Inch

    UNC

    5/8" - 1/2"-13 SHOULDER BOLTS - 304 STAINLESS STEEL

    13 Per Inch

    UNC

    3/4" - 5/8"-11 SHOULDER BOLTS - 304 STAINLESS STEEL

    11 Per Inch

    UNC

    1" - 3/4"-10 SHOULDER BOLTS - 304 STAINLESS STEEL

    10 Per Inch

    UNC



    ISO 7379 Specifications for Shoulder Bolts

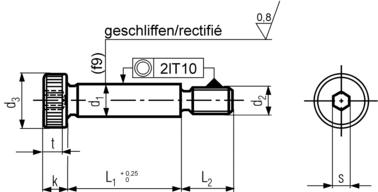

    ISO7379 Socket Head Shoulder Screw - Technical Drawing - L1+L2=OAL, d2=Thread Dia., d1=Shank Dia., k= Head Height

    All measurements in millimeters (mm)

    d1 Nom.-Ø 6 8 10 12 16 20 24
    max 5.990 7.987 9.987 11.984 15.984 19.980 23.980
    min 5.960 7.951 9.951 11.941 15.941 19.928 23.928
    d2 M5 M6 M8 M10 M12 M16 M20
    2IT10 0.12 0.12 0.12 0.12 0.14 0.14 0.17
    d3 10 13 16 18 24 30 36
    k max. 4.5 5.5 7 9 11 14 16
    t min 2.4 3.3 4.2 4.9 6.6 8.8 10
    L2 Nom. long/length 9.5 11 13 16 18 22 27
    s 3 4 5 6 8 10 12

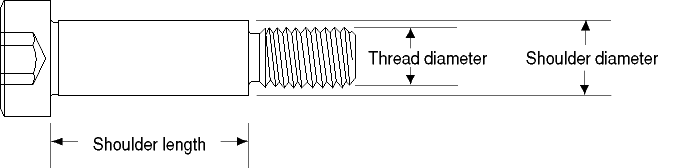

    How to measure socket head shoulder screws Dimensions / Specifications / Sizes

    How to measure socket head shoulder screws

    To specify inch shoulder screws:

    1. Call out shoulder diameter, then
    2. The shoulder length

    Example: 5/8″ x 2″ = a shoulder screw with a 5/8″ diameter shoulder, 2″ long.

    Thread size is one standard size smaller than the shoulder diameter and needn’t be specified, except for:

    • A screw with a 1/2″ diameter shoulder has a 3/8 – 16 thread.
    • A 5/8″ diameter shoulder has a 1/2 – 13 thread.

    Why? 7/16″ and 9/16″ are not stocked shoulder diameter thread sizes.

    To specify metric shoulder screws:

    1. Call out shoulder diameter, then
    2. The thread diameter, then
    3. The shoulder length

    Example: 12/M10 x 30 = a shoulder screw with a 12mm shoulder diameter, a 10mm thread diameter and a 30mm shoulder length.

    Socket Shoulder Screws
    Dimensions and Specifications Dimensions / Specifications / Sizes



    Dimensions for
    Alloy Steel Socket Shoulder Screws / Stripper Bolts
    ASME B18.3-1988

    NOM
    SIZE

    D

    A

    H

    C

    J

    T

    M

    R

    K

    F

    SHOULDER
    DIAMETER

    HEAD
    DIAMETER

    HEAD
    HEIGHT

    CHAMFER
    OR
    RADIUS

    HEX
    SOCKET
    SIZE

    KEY
    ENGAGE-
    MENT

    FILLET
    TRANSITION
    DIAMETER

    HEAD
    FILLET
    RADIUS

    SHOULDER
    NECK
    DIAMETER

    SHOULDER
    NECK
    WIDTH

    MAX

    MIN

    MAX

    MIN

    MAX

    MIN

    MIN

    NOM

    MIN

    MAX

    MIN

    MIN

    MAX

    1/4 .2480 .2460 .375 .357 .188 .177 .020 1/8 .094 .276 .009 .227 .093
    5/16 .3105 .3085 .438 .419 .219 .209 .026 5/32 .117 .345 .012 .289 .093
    3/8 .3730 .3710 .562 .543 .250 .240 .031 3/16 .141 .413 .015 .352 .093
    1/2 .4980 .4960 .750 .729 .312 .302 .040 1/4 .188 .550 .020 .477 .093
    5/8 .6230 .6210 .875 .853 .375 .365 .050 5/16 .234 .687 .024 .602 .093
    3/4 .7480 .7460 1.000 .977 .500 .490 .069 3/8 .281 .826 .030 .727 .093

    NOMINAL
    SIZE

    D1

    THREADS
    PER
    INCH

    G

    I

    N

    *E

    THREAD
    SECTION
    TENSILE
    STRENGTH
    (LBS)

    SINGLE SHEAR
    STRENGTH (LBS)

    SEATING
    TORQUE
    (INCH LBS)

    NOMINAL
    THREAD
    SIZE

    THREAD NECK
    DIAMETER

    THREAD
    NECK
    WIDTH

    THREAD NECK
    FILLET

    THREAD
    LENGTH

    SHOULDER

    THREAD NECK













    MAX

    MIN





    MAX

    MIN

    BASIC

    MIN

    MIN

    MIN





    1/4 10 24 .142 .033 .083 .023 .017 .375 2,540 4,515 1,250 50
    5/16 1/4 20 .193 .182 .100 .028 .022 .438 4,610 7,100 2,340 125
    3/8 5/16 18 .249 .237 .111 .031 .025 .500 7,600 10,280 3,970 265
    1/2 3/8 16 .304 .291 .125 .035 .029 .625 11,240 18,350 5,985 470
    5/8 1/2 13 .414 .397 .154 .042 .036 .750 20,570 28,785 11,140 1,150
    3/4 5/8 11 .521 .502 .182 .051 .045 .875 32,770 41,515 17,800 2,000
    * Tolerance = 3/8" and smaller = -.020, Greater than 3/8" -.030
    • Applications For rotating or sliding applications, such as pulley shafts, punch and die work or as a bearing pin. Also known as Stripper Bolts.
    • Material Made from Alloy Steel having one or more of the following elements: chromium, nickel, molybdenum or vanadium, in sufficient quantity to assure the specified hardness.
    • Heat Treatment: Heat-treated by oil quenching from above the transformation temperature and then tempered at a temperature not lower than 650°F
    • Hardness: Rockwell c32-34
    • Tensile Strength: 140,000 psi minimum (material only)
    • Yield Strength: 120,000 psi minimum (material only)
    • Elongation: 15% minimum (Applies to all machined specimens of a length that is at least 4 times the nominal diameter of the screw.
    • Reduction of Area: 45% minimum (applies to all machined specimens)
    • Plating: Usually supplied with a plain finish.

    316 Stainless Steel Plain Ring Bolt | eye bolt sizes, eye bolt strength, eye bolt with shoulder / 316 Stainless Steel Plain Ring Bolt Manufacturer and Suppliers India

    Plain Ring Bolt Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Plain Ring Bolt

    The Plain Ring Bolt includes 1 nut and 1 washer and is UNC thread. It is available in sizes ranging from 1/4" to 1/2" to fit every project. This ring bolt is made from grade 316 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Plain Ring Bolt Line Drawing

    ITEM A
    (size)
    B C D E WLL
    (lb)
    WT
    (lb)
    S0331-0750 1/4" 1.50" 2.00" 1.75" 2.94" 250 0.12
    S0331-0855 5/16" 1.50" 2.25" 2.00" 3.50" 400 0.21
    S0331-1012 3/8" 2.50" 4.25" 2.50" 5.75" 600 0.38
    S0331-1065 3/8" 1.50" 2.50" 2.50" 4.25" 600 0.42
    S0331-1315 1/2" 3.00" 6.00" 3.00" 8.00" 1,100 0.94
    S0331-1380 1/2" 1.50" 3.25" 3.00" 5.25" 1,100 0.83

    316 Stainless Steel Shoulder Eye Bolt Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Shoulder Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316-NM Stainless Steel

    UNC Thread

    Shoulder Eye Bolt

    The Shoulder Eye Bolt includes 1 nut and 1 washer and is UNC thread. It is available in sizes ranging from 1/4" to 1" to fit every project. This eye bolt is made from grade 316-NM stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Shoulder Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WLL
    (lb)
    WT
    (lb)
    S0314-0705 1/4" 1.50" 2.00" 0.50" 1/4"-20 500 0.06
    S0314-0710 1/4" 2.50" 4.00" 0.50" 1/4"-20 500 0.08
    S0314-0806 5/16" 1.50" 2.25" 0.63" 5/16"-18 800 0.12
    S0314-0810 5/16" 2.50" 4.25" 0.63" 5/16"-18 800 0.14
    S0314-1006 3/8" 1.50" 2.50" 0.75" 3/8"-16 1,200 0.20
    S0314-1012 3/8" 2.50" 4.50" 0.75" 3/8"-16 1,200 0.26
    S0314-1304 1/2" 1.25" 1.50" 1.00" 1/2"-13 2,150 0.30
    S0314-1308 1/2" 1.50" 3.25" 1.00" 1/2"-13 2,150 0.40
    S0314-1315 1/2" 3.00" 6.00" 1.00" 1/2"-13 2,150 0.56
    S0314-1603 5/8" 0.75" 1.00" 1.25" 5/8"-11 3,440 0.60
    S0314-1605 5/8" 1.75" 2.00" 1.25" 5/8"-11 3,440 0.64
    S0314-1610 5/8" 2.00" 4.00" 1.25" 5/8"-11 3,440 0.80
    S0314-1615 5/8" 3.00" 6.00" 1.25" 5/8"-11 3,440 1.00
    S0314-2003 3/4" 0.88" 1.00" 1.50" 3/4"-10 5,140 0.94
    S0314-2005 3/4" 1.75" 2.00" 1.50" 3/4"-10 5,140 1.12
    S0314-2012 3/4" 2.00" 4.50" 1.50" 3/4"-10 5,140 1.40
    S0314-2015 3/4" 3.00" 6.00" 1.50" 3/4"-10 5,140 1.58
    S0314-2213 7/8" 2.50" 5.00" 1.75" 7/8"-9 7,130 2.32
    S0314-2504 1" 1.38" 1.44" 2.00" 1"-8 9,370 2.56
    S0314-2506 1" 2.25" 2.50" 2.00" 1"-8 9,370 2.64
    S0314-2515 1" 3.00" 6.00" 2.00" 1"-8 9,370 3.44

    Stainless Steel 304 Welded Eye Bolt Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Welded Eye Bolt Dimensions / Specifications / Sizes

    Grade: 304 Stainless Steel

    UNC Thread

    Welded Eye Bolt

    The Welded Eye Bolt is a standard UNC thread and includes 1 nut and 2 washers. It is available in sizes ranging from 3/16" to 1/2" to fit every project. This eye bolt is made from grade 304 stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Welded Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WIRE DIA. WLL
    (lb)
    WT
    (lb)
    S0312-05025 3/16" 0.85" 1" 0.37" 10-24 0.16" 250 0.02
    S0312-05050 3/16" 1.50" 2" 0.37" 10-24 0.16" 250 0.03
    S0312-05075 3/16 1.75" 3" 0.37" 10-24 0.16" 250 0.03
    S0312-07050 1/4" 1.50" 2" 0.50" 1/4"-20 0.21" 400 0.06
    S0312-07075 1/4" 2.00" 3" 0.50" 1/4"-20 0.21" 400 0.07
    S0312-07100 1/4" 2.00" 4" 0.50" 1/4"-20 0.21" 400 0.08
    S0312-07125 1/4" 2.00" 5" 0.50" 1/4"-20 0.21" 400 0.08
    S0312-07150 1/4" 2.00" 6" 0.50" 1/4"-20 0.21" 400 0.09
    S0312-08050 5/16" 1.25" 2" 0.63" 5/16"-18 0.27" 600 0.10
    S0312-08075 5/16" 2.00" 3" 0.63" 5/16"-18 0.27" 600 0.12
    S0312-08100 5/16" 2.00" 4" 0.63" 5/16"-18 0.27" 600 0.13
    S0312-08125 5/16" 2.00" 5" 0.63" 5/16"-18 0.27" 600 0.15
    S0312-08150 5/16" 2.00" 6" 0.63" 5/16"-18 0.27" 600 0.17
    S0312-10075 3/8" 2.00" 3" 0.75" 3/8"-16 0.33" 1,000 0.19
    S0312-10100 3/8" 2.00" 4" 0.75" 3/8"-16 0.33" 1,000 0.21
    S0312-10125 3/8" 2.00" 5" 0.75" 3/8"-16 0.33" 1,000 0.24
    S0312-10150 3/8" 2.00" 6" 0.75" 3/8"-16 0.33" 1,000 0.26
    S0312-13075 1/2" 2.00" 3" 1.00" 1/2"-13 0.43" 1,800 0.40
    S0312-13100 1/2" 2.00" 4" 1.00" 1/2"-13 0.43" 1,800 0.44
    S0312-13125 1/2" 2.00" 5" 1.00" 1/2"-13 0.43" 1,800 0.49
    S0312-13150 1/2" 2.00" 6" 1.00" 1/2"-13 0.43" 1,800 0.53

    316 Stainless Steel Plain Eye Bolt Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Plain Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316-NM Stainless Steel

    UNC Thread

    Plain Eye Bolt

    The Plain Eye Bolt includes 1 nut and 1 washer and is UNC thread. It is available in sizes ranging from 1/4" to 1" to fit every project. This eye bolt is made from grade 316-NM stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Plain Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WLL
    (lb)
    WT
    (lb)
    S0315-0705 1/4" 1.50" 2.00" 0.50" 1/4"-20 500 0.06
    S0315-0710 1/4" 2.50" 4.00" 0.50" 1/4"-20 500 0.08
    S0315-0806 5/16" 1.50" 2.25" 0.63" 5/16"-18 800 0.08
    S0315-0810 5/16" 2.50" 4.25" 0.63" 5/16"-18 800 0.14
    S0315-1006 3/8" 1.50" 2.50" 0.75" 3/8"-16 1,200 0.18
    S0315-1012 3/8" 2.50" 4.50" 0.75" 3/8"-16 1,200 0.26
    S0315-1304 1/2" 1.25" 1.50" 1.00" 1/2"-13 2,150 0.36
    S0315-1308 1/2" 1.50" 3.25" 1.00" 1/2"-13 2,150 0.48
    S0315-1315 1/2" 3.00" 6.00" 1.00" 1/2"-13 2,150 0.62
    S0315-1603 5/8" 0.75" 1.00" 1.25" 5/8"-11 3,440 0.62
    S0315-1605 5/8" 1.75" 2.00" 1.25" 5/8"-11 3,440 0.78
    S0315-1610 5/8" 2.00" 4.00" 1.25" 5/8"-11 3,440 0.95
    S0315-1615 5/8" 3.00" 6.00" 1.25" 5/8"-11 3,440 1.12
    S0315-2003 3/4" 0.88" 1.00" 1.50" 3/4"-10 5,140 1.06
    S0315-2005 3/4" 1.75" 2.00" 1.50" 3/4"-10 5,140 1.12
    S0315-2012 3/4" 2.00" 4.50" 1.50" 3/4"-10 5,140 1.52
    S0315-2015 3/4" 3.00" 6.00" 1.50" 3/4"-10 5,140 1.70
    S0315-2213 7/8" 2.50" 5.00" 1.75" 7/8"-9 7,130 2.26
    S0315-2504 1" 1.38" 1.44" 2.00" 1"-8 9,370 2.80
    S0315-2506 1" 2.25" 2.50" 2.00" 1"-8 9,370 3.20
    S0315-2515 1" 3.00" 6.00" 2.00" 1"-8 9,370 3.74

    316 Stainless Steel Metric Plain Eye Bolt Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Metric Plain Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316-NM Stainless Steel

    Metric Plain Eye Bolt

    The Metric Plain Eye Bolt has forged markings of 316-NM, size and WLL in tons. All threads are metric. One nut and washer are included. Extra nuts and washers are available from stock. Shaft is machined for perfect fit and seating.

    Specifications

    Metric Plain Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WLL
    (lb)
    WT
    (lb)
    S0315-0705M M6 1.50" 2.00" 0.50" M6 x 1.0 500 0.06
    S0315-0710M M6 2.50" 4.00" 0.50" M6 x 1.0 500 0.08
    S0315-0803M M8 0.38" 1.38" 0.63" M8 x 1.25 800 0.08
    S0315-0806M M8 1.50" 2.25" 0.63" M8 x 1.25 800 0.08
    S0315-0810M M8 2.50" 4.25" 0.63" M8 x 1.25 800 0.14
    S0315-1002M M10 0.75" 0.75" 0.75" M10 x 1.5 1,200 0.18
    S0315-1003M M10 1.00" 1.50" 0.75" M10 x 1.5 1,200 0.18
    S0315-1006M M10 1.50" 2.50" 0.75" M10 x 1.5 1,200 0.18
    S0315-1012M M10 2.50" 4.50" 0.75" M10 x 1.5 1,200 0.26
    S0315-1304M M12 1.00" 1.50" 1.00" M12 x 1.75 2,150 0.36
    S0315-1308M M12 1.50" 3.25" 1.00" M12 x 1.75 2,150 0.48
    S0315-1315M M12 3.00" 6.00" 1.00" M12 x 1.75 2,150 0.62
    S0315-1603M M16 0.75" 1.00" 1.25" M16 x 2.0 3,440 0.62
    S0315-1605M M16 1.75" 2.00" 1.25" M16 x 2.0 3,440 0.78
    S0315-1610M M16 2.00" 4.00" 1.25" M16 x 2.0 3,440 0.95
    S0315-1615M M16 3.00" 6.00" 1.25" M16 x 2.0 3,440 1.12
    S0315-2003M M18 1.00" 1.00" 1.50" M18 x 2.5 5,140 1.06
    S0315-2005M M18 1.75" 2.00" 1.50" M18 x 2.5 5,140 1.12
    S0315-2012M M18 2.00" 4.50" 1.50" M18 x 2.5 5,140 1.52
    S0315-2015M M18 3.00" 6.00" 1.50" M18 x 2.5 5,140 1.70
    S0315-2213M M20 2.50" 5.00" 1.75" M20 x 2.5 7,130 2.26
    S0315-2504M M24 1.38" 1.38" 2.00" M24 x 3.0 9,370 2.80
    S0315-2506M M24 2.25" 2.50" 2.00" M24 x 3.0 9,370 3.20
    S0315-2515M M24 3.00" 6.00" 2.00" M24 x 3.0 9,370 3.74

    316 Stainless Steel Heavy Duty Special Eye Bolt Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    eye bolt heavy duty, eye bolt no threads, eye bolt price list in india, eye bolt specification, eye bolt stainless steel, eye bolt shank, eye bolt types, eye bolt tensile strength, eye bolt dimensions, eye bolt capacity, eye bolt weight rating, eye bolt lifting capacity

    Heavy Duty Special Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Heavy Duty Special Eye Bolt

    The Heavy Duty Special Eye Bolt features a fully threaded rod welded into an eye nut. It includes 1 nut and washer and is UNC thread. This eye bolt is available in sizes ranging from 1/4" to 1" and is made from grade 316 stainless steel for durability and corrosion resistance.

    Specifications

    Heavy Duty Special Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D WLL
    (lb)
    WT
    (lb)
    S0319-0702 1/4" 1.20" 0.62" 2.00" 400 0.07
    S0319-0712 1/4" 1.20" 0.62" 12.00" 400 0.17
    S0319-0804 5/16" 1.55" 0.75" 4.00" 700 0.16
    S0319-0812 5/16" 1.55" 0.75" 12.00" 700 0.29
    S0319-1005 3/8" 1.92" 0.97" 5.00" 1,000 0.29
    S0319-1012 3/8" 1.92" 0.97" 12.00" 1,000 0.46
    S0319-1306 1/2" 2.38" 1.17" 6.00" 2,000 0.61
    S0319-1312 1/2" 2.38" 1.17" 12.00" 2,000 0.87
    S0319-1606 5/8" 2.81" 1.34" 6.00" 3,200 1.10
    S0319-1612 5/8" 2.81" 1.34" 12.00" 3,200 1.48
    S0319-2006 3/4" 3.36" 1.57" 6.00" 4,700 1.60
    S0319-2012 3/4" 3.36" 1.57" 12.00" 4,700 2.20
    S0319-2018 3/4" 3.36" 1.57" 18.00" 4,700 3.32
    S0319-2509 1" 4.16" 2.00" 9.00" 7,000 3.78
    S0319-2518 1" 4.16" 2.00" 18.00" 7,000 5.43

    316 Stainless Steel Custom Eye Bolt | eye bolt sizes, eye bolt strength, eye bolt with shoulder / 316 Stainless Steel Custom Eye Bolt Manufacturers and Suppliers India

    Custom Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Custom Eye Bolt

    The Custom Eye Bolt features a fully threaded rod welded into an eye nut. It includes 1 nut and washer and is UNC thread. This eye bolt is available in sizes from 1/4" to 1" and is made from grade 316 stainless steel for durability and corrosion resistance. The shank can be cut to any desired length.

    Specifications

    Custom Eye Bolt Line Drawing

    ITEM A
    (size)
    B C D THREAD WLL
    (lb)
    S0125-SP07 1/4" 1.20" 0.62" CUSTOM 1/4"-20 400
    S0125-SP08 5/16" 1.55" 0.75" CUSTOM 5/16"-18 700
    S0125-SP10 3/8" 1.92" 0.97" CUSTOM 3/8"-16 1,000
    S0125-SP13 1/2" 2.38" 1.17" CUSTOM 1/2"-13 2,000
    S0125-SP16 5/8" 2.81" 1.34" CUSTOM 5/8"-11 3,200
    S0125-SP20 3/4" 3.36" 1.57" CUSTOM 3/4"-10 4,700
    S0125-SP25 1" 3.55" 2.00" CUSTOM 1"-8 7,500

    304 Stainless Steel Rod End Blank Manufacturer and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Rod End Blank Dimensions / Specifications / Sizes

    Grade: 304 Stainless Steel

    Rod End Blank

    The Rod End Blank can be made into a customized eye bolt to fit your specific dimensions and specifications. It is available in sizes ranging from 3/8" to 1" and is made from grade 304 stainless steel for corrosion resistance and durability. 304 Stainless Steel Rod End Blank Manufacturer in India.

    Specifications

    Rod End Blank Line Drawing

    ITEM SIZE A B C D WT
    (lb)
    S0360-10075 3/8"x3" 0.38" 0.38" 3.00" 0.75" 0.13
    S0360-10100 3/8"x4" 0.38" 0.38" 4.00" 0.75" 0.16
    S0360-13100 1/2"x4" 0.50" 0.50" 4.00" 1.00" 0.30
    S0360-13125 1/2"x5" 0.50" 0.50" 5.00" 1.00" 0.36
    S0360-13150 1/2"x6" 0.50" 0.50" 6.00" 1.00" 0.42
    S0360-16125 5/8"x5" 0.63" 0.63" 5.00" 1.25" 0.61
    S0360-16150 5/8"x6" 0.63" 0.63" 6.00" 1.25" 0.68
    S0360-16200 5/8"x8" 0.63" 0.63" 8.00" 1.25" 0.82
    S0360-20125 3/4"x5" 0.75" 0.75" 5.00" 1.50" 0.86
    S0360-20150 3/4"x6" 0.75" 0.75" 6.00" 1.50" 1.04
    S0360-20175 3/4"x7" 0.75" 0.75" 7.00" 1.50" 1.22
    S0360-20200 3/4"x8" 0.75" 0.75" 8.00" 1.50" 1.40
    S0360-22150 7/8"x6" 0.88" 0.88" 6.00" 1.75" 1.46
    S0360-25300 1"x10" 1.00" 1.00" 10.00" 2.00" 2.85

    316 Stainless Steel Machine Eye Bolt Manufacturers and Suppliers India / 316 Stainless Steel Machine Eye Bolt | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Machine Eye Bolt Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Machine Eye Bolt

    The Machine Eye Bolt is UNC thread and available in sizes ranging from 1/4" to 1" to fit every project. This eye bolt is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications
    ITEM A
    (size)
    B C D WLL
    (lb)
    WT
    (lb)
    S0316-0007 1/4" 1.09" 0.62" 0.53" 400 0.05
    S0316-0008 5/16" 1.34" 0.75" 0.58" 700 0.07
    S0316-0010 3/8" 1.68" 0.95" 0.71" 1,000 0.13
    S0316-0013 1/2" 2.00" 1.14" 0.86" 2,000 0.25
    S0316-0016 5/8" 2.42" 1.32" 1.02" 3,200 0.45
    S0316-0020 3/4" 2.78" 1.57" 1.14" 4,700 0.79
    S0316-0025 1" 3.66" 1.95" 1.50" 7,500 1.65

    316 Stainless Steel Eye Nut Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Eye Nut Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Eye Nut

    The Eye Nut is UNC thread and available in sizes ranging from 1/4" to 1" to fit every project. This eye nut is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Eye Nut Line Drawing

    ITEM A
    (size)
    B C D E WLL
    (lb)
    WT
    (lb)
    THREADED - UNC
    S0321-0007 1/4" 1.20" 0.62" 0.50" 0.39" 400 0.04
    S0321-0008 5/16" 1.55" 0.75" 0.62" 0.56" 700 0.08
    S0321-0010 3/8" 1.92" 0.97" 0.76" 0.62" 1,000 0.13
    S0321-0013 1/2" 2.38" 1.17" 0.95" 0.87" 2,000 0.26
    S0321-0016 5/8" 2.81" 1.34" 1.19" 1.00" 3,200 0.53
    S0321-0020 3/4" 3.36" 1.57" 1.32" 1.22" 4,700 0.75
    S0321-0025 1" 4.16" 1.95" 1.70" 1.43" 7,500 1.49
    UNTHREADED - BLANK
    S0321-U007 1/4" 1.20" 0.62" 0.50" 0.39" 400 0.04
    S0321-U008 5/16" 1.55" 0.75" 0.62" 0.56" 700 0.08
    S0321-U010 3/8" 1.92" 0.97" 0.76" 0.62" 1,000 0.13
    S0321-U013 1/2" 2.38" 1.17" 0.95" 0.87" 2,000 0.26
    S0321-U016 5/8" 2.81" 1.34" 1.19" 1.00" 3,200 0.53
    S0321-U020 3/4" 3.36" 1.57" 1.32" 1.22" 4,700 0.75
    S0321-U025 1" 4.16" 1.95" 1.70" 1.43" 7.500 1.49

    316 Stainless Steel Lifting Eye Nut | Eye bolt sizes, Eye Bolt Strength, Eye Bolt with shoulder

    Lifting Eye Nut Dimensions / Specifications / Sizes

    Grade: 316-NM Stainless Steel

    UNC Thread

    Lifting Eye Nut

    The Lifting Eye Nut is UNC thread and available in sizes ranging from 1/4" to 3/4" to fit every project. This eye nut is made from grade 316-NM stainless steel for maximum corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Lifting Eye Nut Line Drawing

    ITEM A
    (size)
    B C D E WLL
    (lb)
    WT
    (lb)
    S0322-0007 1/4" 0.75" 0.59" 1.06" 0.38" 460 0.08
    S0322-0008 5/16" 0.75" 0.59" 1.06" 0.38" 780 0.08
    S0322-0010 3/8" 1.25" 1.00" 1.50" 0.63" 1,160 0.26
    S0322-0013 1/2" 1.25" 1.00" 1.50" 0.63" 2,150 0.25
    S0322-0016 5/8" 1.50" 1.19" 2.00" 0.69" 3,440 0.53
    S0322-0020 3/4" 1.75" 1.25" 2.38" 0.88" 5,140 0.95

    316 Stainless Steel Metric Lifting Eye Nut Manufacturers & Suppliers India

    Metric Lifting Eye Nut

    The Metric Lifting Eye Nut is available in sizes ranging from M6 to M18 to fit every project. This eye nut is made from grade 316-NM stainless steel for maximum corrosion resistance and durability, making it perfect for marine and industrial applications. All threads are metric. | 316 Stainless Steel Metric Lifting Eye Nut Manufacturer in India

    Grade: 316-NM Stainless Steel

    UNC Thread

    Metric Lifting Eye Nut

    The Metric Lifting Eye Nut is available in sizes ranging from M6 to M18 to fit every project. This eye nut is made from grade 316-NM stainless steel for maximum corrosion resistance and durability, making it perfect for marine and industrial applications.  All threads are metric.

    Specifications

    Lifting Eye Nut Line Drawing

    A
    (size)
    B C D E WLL
    (lb)
    WT
    (lb)
    M6 0.75" 0.59" 1.06" 0.38" 460 0.08
    M8 0.75" 0.59" 1.06" 0.38" 780 0.08
    M10 1.25" 1.00" 1.50" 0.63" 1,160 0.26
    M12 1.25" 1.00" 1.50" 0.63" 2,150 0.25
    M16 1.50" 1.19" 2.00" 0.69" 3,440 0.53
    M18 1.75" 1.25" 2.38" 0.88" 5,140 0.95

    316 Stainless Steel Eye End | eye bolt sizes, eye bolt strength, eye bolt with shoulder / 316 Stainless Steel Eye End Manufacturers and Suppliers India

    Eye End Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNF Thread

    Eye End

    The Eye End is UNF thread and available in sizes ranging from 1/4" to 5/8" to fit every project. This eye end is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Eye End Line Drawing

    ITEM A
    (size)
    B C D WLL
    (lb)
    WT
    (lb)
    S0318-0007 1/4" 1.86" 0.26" 0.16" 500 0.04
    S0318-0009 5/16" 2.26" 0.34" 0.16" 900 0.07
    S0318-0010 3/8" 2.50" 0.41" 0.22" 1,400 0.11
    S0318-0013 1/2" 3.14" 0.51" 0.32" 2,300 0.22
    S0318-0016 5/8" 4.00" 0.57" 0.38" 3,500 0.45

    316 Stainless Steel Pad Eye Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Pad Eye Dimensions / Specifications / Sizes

    Grade: 316-NM Stainless Steel

    Pad Eye

    The Pad Eye is offered in a variety of sizes from 3/16" to 3/4" and is ideal for marine, industrial, architectural, OEM and government applications. The working load limit is dependent on the quality of the welding and attachment structure. The underside is machined for a perfect seating.

    Specifications

    Pad Eye Line Drawing

    ITEM A
    (size)
    B C D WT
    (lb)
    S0324-0005 3/16" 1.06" 0.50" 0.38" 0.04
    S0324-0007 1/4" 1.31" 0.63" 0.56" 0.06
    S0324-0008 5/16" 1.56" 0.75" 0.63" 0.10
    S0324-0010 3/8" 2.00" 1.00" 0.86" 0.19
    S0324-0013 1/2" 2.50" 1.25" 1.00" 0.38
     S0324-0016 5/8" 3.25" 1.50" 1.38" 0.87
     S0324-0020 3/4" 3.78" 1.75" 1.80" 1.52

    316 Stainless Steel Plain Eye Rivet Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Plain Eye Rivet Dimensions / Specifications / Sizes

    Grade: 316-NM Stainless Steel

    Plain Eye Rivet

    The Plain Eye Rivet is available in a 1/2" size. The shaft is machine for a perfect fit. This unthreaded eye bolt is made from grade 316-NM stainless steel for maximum corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Plain Eye Rivit Line Drawing

    ITEM A
    (size)
    B C WT
    (lb)
    S0315-R1304 1/2" 1.50" 1.00" 0.26
    S0315-R1308 1/2" 3.25" 1.00" 0.37

    316 Stainless Steel Shoulder Eye Rivet Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Shoulder Eye Rivet Dimensions / Specifications / Sizes

    Grade: 316-NM Stainless Steel

    Shoulder Eye Rivet

    The Shoulder Eye Rivet features a machined shoulder and shaft for perfect seating and fit. It is available in a 1/2" size. This unthreaded eye bolt is made from grade 316-NM stainless steel for maximum corrosion resistance and durability, making it perfect for multiple applications.

    Specifications

    Shoulder Eye Rivit Line Drawing

    ITEM A
    (size)
    B C WT
    (lb)
    S0314-R1304 1/2" 1.50" 1.00" 0.27
    S0314-R1308 1/2" 3.25" 1.00" 0.38

    316 Stainless Steel Threaded Rod | eye bolt sizes, eye bolt strength, eye bolt with shoulder / 316 Stainless Steel Threaded Rod Manufacturer and Suppliers India

    Threaded Rod Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    UNC Thread

    Threaded Rod

    The Threaded Rod is UNC thread and can be welded to eye nuts for a custom eye bolt. This rod is available in sizes ranging from 1/4" to 1". It is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it perfect for marine and industrial applications.

    Specifications

    Threaded Rod Line Drawing

    ITEM A
    (size)
    B THREAD WLL
    (lb)
    WT
    (lb)
    S0300-0007 1/4" 6 FEET 1/4"-20 475 0.76
    S0300-0008 5/16" 6 FEET 5/16"-18 780 1.22
    S0300-0010 3/8" 6 FEET 3/8"-16 1,160 2.30
    S0300-0013 1/2" 6 FEET 1/2"-13 2,120 3.25
    S0300-0016 5/8" 6 FEET 5/8"-11 3,390 5.15
    S0300-0020 3/4" 6 FEET 3/4"-10 5,000 7.55
    S0300-0022 7/8" 6 FEET 7/8"-9 6,930 10.26
    S0300-0025 1" 6 FEET 1"-8 9,090 13.64

    304 Stainless Steel Custom Rod End Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder / 304 Stainless Steel Custom Rod End Manufacturers and Suppliers India

    Custom Rod End Dimensions / Specifications / Sizes

    Grade: 304 Stainless Steel

    Custom Rod End

    The Custom Rod End can be made to fit your specific dimensions and specifications. It is available in sizes ranging from 3/8" to 1" and lengths from 3" to 10". This rod end is made from grade 304 stainless steel for corrosion resistance and durability.

    Specifications

    Custom Rod End Line Drawing

    ITEM SIZE A B C D E
    (thread)
    F
    (eye)
    S0360-10075-SP 3/8" X 3" 0.38" 0.38" 3.00" 0.75" CUSTOM CUSTOM
    S0360-10100-SP 3/8" X 4" 0.38" 0.38" 4.00" 0.75" CUSTOM CUSTOM
    S0360-13100-SP 1/2" X 4" 0.50" 0.50" 4.00" 1.00" CUSTOM CUSTOM
    S0360-13125-SP 1/2" X 5" 0.50" 0.50" 5.00" 1.00" CUSTOM CUSTOM
    S0360-13150-SP 1/2" X 6" 0.50" 0.50" 6.00" 1.00" CUSTOM CUSTOM
    S0360-16125-SP 5/8" X 5" 0.63" 0.63" 5.00" 1.25" CUSTOM CUSTOM
    S0360-16150-SP 5/8" X 6" 0.63" 0.63" 6.00" 1.25" CUSTOM CUSTOM
    S0360-16200-SP 5/8" X 8" 0.63" 0.63" 8.00" 1.25" CUSTOM CUSTOM
    S0360-20125-SP 3/4" X 5" 0.75" 0.75" 5.00" 1.50" CUSTOM CUSTOM
    S0360-20150-SP 3/4" X 6" 0.75" 0.75" 6.00" 1.50" CUSTOM CUSTOM
    S0360-20175-SP 3/4" X 7" 0.75" 0.75" 7.00" 1.50" CUSTOM CUSTOM
    S0360-20200-SP 3/4" X 8" 0.75" 0.75" 8.00" 1.50" CUSTOM CUSTOM
    S0360-22150-SP 7/8" X 6" 0.88" 0.88" 6.00" 1.75" CUSTOM CUSTOM
    S0360-25300-SP 1" X 10" 1.00" 1.00" 10.00" 2.00" CUSTOM CUSTOM

    316 Stainless Steel Jaw Eye Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder / eye bolt heavy duty

    Jaw Eye Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    Jaw Eye

    The Jaw Eye is made from grade 316 stainless steel for corrosion resistance and durability.  Eye sizes range from 1/4” to 3/8” and are not welded to the threaded rod for easy removal.  They are offered in standard short and long length, but can also be custom cut to fit any application.  They are universal attachment points and can be used as repair or replacement links.

    Specifications

    Jaw Eye Line Drawing

    ITEM A
    (size)
    B C D E F WT
    (lb)
    SHORT
    S0320-J107 1/4" 0.62" 0.38" 0.37" 0.22" 2.48" 0.08
    S0320-J108 5/16" 0.74" 0.40" 0.38" 0.30" 3.03" 0.16"
    S0320-J110 3/8" 0.97" 0.46" 0.48" 0.37" 3.83" 0.29"
    LONG
    S0320-J207 1/4" 0.62" 0.38" 0.37" 0.22" 3.89" 0.10"
    S0320-J208 5/16" 0.74" 0.40" 0.38" 0.30" 4.76" 0.18"
    S0320-J210 3/8" 0.97" 0.46" 0.48" 0.37" 6.57" 0.36"
    CUSTOM CUT
    S0320-J307 1/4" 0.62" 0.38" 0.37" 0.22" CUSTOM N/A
    S0320-J308 5/16" 0.74" 0.40" 0.38" 0.30" CUSTOM N/A
    S0320-J310 3/8" 0.97" 0.46" 0.48" 0.37" CUSTOM N/A
    NOTE:
    THREADS ARE "UNC"

    Stainless Steel Toggle Eye Bolts Manufacturers and Suppliers India | Stainless Steel Toggle Bolts (Eye Bolts)- SS Toggle Bolts Dimensions | SS Toggle Bolts Sizes and SS Toggle Bolts Price in India

    Toggle Eye Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    Toggle Eye

    The Toggle Eye is made from grade 316 stainless steel for corrosion resistance and durability.  Eye sizes range from 1/4” to 3/8” and are not welded to the threaded rod for easy removal. They are offered in standard short and long length, but can also be custom cut to fit any application. They are universal attachment points and can be used as repair or replacement links.

    Specifications

    Toggle Eye Line Drawing

    ITEM A
    (size)
    B C D E F WT
    (lb)
    SHORT
    S0320-T107 1/4" 0.62" 0.35" 0.45" 0.23" 2.84" 0.11
    S0320-T108 5/16" 0.74" 0.40" 0.59" 0.31" 3.73" 0.23"
    S0320-T110 3/8" 0.97" 0.56" 0.75" 0.37" 4.59" 0.35"
    LONG
    S0320-T207 1/4" 0.62" 0.35" 0.45" 0.23" 4.49" 0.13"
    S0320-T208 5/16" 0.74" 0.40" 0.59" 0.31" 5.28" 0.26"
    S0320-T210 3/8" 0.97" 0.56" 0.75" 0.37" 6.10" 0.40"
    CUSTOM CUT
    S0320-T307 1/4" 0.62" 0.35" 0.45" 0.23" CUSTOM N/A
    S0320-T308 5/16" 0.74" 0.40" 0.59" 0.31" CUSTOM N/A
    S0320-T310 3/8" 0.97" 0.56" 0.75" 0.37" CUSTOM N/A
    NOTE:
    THREADS ARE "UNF"

    316 Stainless Steel Wall Toggle Eye Manufacturers and Suppliers India | eye bolt sizes, eye bolt strength, eye bolt with shoulder

    Wall Toggle Eye Dimensions / Specifications / Sizes

    Grade: 316 Stainless Steel

    Wall Toggle Eye

    The Wall Toggle Eye is made from grade 316 stainless steel with pivoting capabilities up to 180 degrees. Eye sizes range from 1/4” to 3/8” and are not welded to the threaded rod for easy removal. They are offered in standard short and long length, but can also be custom cut to fit any application.  They are universal attachment points and can be used as repair or replacement links.

    Specifications

    Wall Toggle Eye Line Drawing

    ITEM A
    (size)
    B C D E F WT
    (lb)
    SHORT
    S0320-W107 1/4" 0.62" 0.59" 1.64" 0.25" 2.09" 0.11
    S0320-W108 5/16" 0.74" 0.79" 2.00" 0.25" 2.69" 0.21"
    S0320-W110 3/8" 0.97" 0.87" 2.24" 0.41" 3.47" 0.31"
    LONG
    S0320-W207 1/4" 0.62" 0.59" 1.64" 0.25" 3.69" 0.13"
    S0320-W208 5/16" 0.74" 0.79" 2.00" 0.25" 4.23" 0.23"
    S0320-W210 3/8" 0.97" 0.87" 2.24" 0.41" 4.98" 0.35"
    CUSTOM CUT
    S0320-W307 1/4" 0.62" 0.59" 1.64" 0.25" CUSTOM N/A
    S0320-W308 5/16" 0.74" 0.79" 2.00" 0.25" CUSTOM N/A
    S0320-W310 3/8" 0.97" 0.87" 2.24" 0.41" CUSTOM N/A
    NOTE:
    THREADS ARE "UNF"

    Stainless Steel Forged Eye Nut Suppliers in India - Galvanized Forged Eye Nut, Forged Nut Eye Bolts Manufacturer & Check Forged Weldless Eye Nut Dimensions Sizes

    Forged Nut Eye Bolts, Crosby Forged Eye Nuts, Chicago Forged Eye Nut, Forged Weldless Eye Nut, Forged Steel Eye Nut, Galvanized Forged Eye Nut, Cleveland City Forged Eye Nut, Crosby Forged Eye Nut, Drop Forged Eye Nut, Forged Eye Nuts, Drop Forged Eye Nuts

    Forged Eye Nut Dimensions

    Tap Size

    A

    Bail Size

    Thread

    Length

    B

    I.D.

    C

    O.D.

    D

    Overall

    Length

    E

    Bell

    F

    I.D.

    Length

    G

    Bail Thickness

    H

    Shoulder

    Width

    I

    Rated Capacity

    (Lbs.)

    Unit Weight

    (Lbs.)

    3/8

    1/2

    5/8

    1 1/4

    1 3/4

    2 1/2

    13/16

    1 9/16

    3/8

    31/32

    2900

    0.26

    1/2

    1/2

    5/8

    1 1/4

    1 3/4

    2 1/2

    13/16

    1 9/16

    3/8

    31/32

    3500

    0.31

    3/8

    1

    11/16

    1 1/2

    2 1/4

    3 3/16

    1 3/16

    2

    1/2

    1 3/8

    2900

    0.63

    1/2

    1

    11/16

    1 1/2

    2 1/4

    3 3/16

    1 3/16

    2

    1/2

    1 3/8

    5200

    0.61

    5/8

    1

    11/16

    1 1/2

    2 1/4

    3 3/16

    1 3/16

    2

    1/2

    1 3/8

    5500

    0.59

    3/4

    1

    11/16

    1 1/2

    2 1/4

    3 3/16

    1 3/16

    2

    1/2

    1 3/8

    5500

    0.56

    7/8

    2

    1

    2

    3 1/4

    4 3/8

    1 11/16

    2 5/8

    3/4

    1 15/16

    11000

    1.72

    1

    2

    1

    2

    3 1/4

    4 3/8

    1 11/16

    2 5/8

    3/4

    1 15/16

    11000

    1.67

    1 1/8

    3

    1 1/4

    2 1/2

    4 1/4

    5 5/8

    1 13/16

    3 3/8

    1

    2 3/8

    20000

    3.64

    1 1/4

    3

    1 1/4

    2 1/2

    4 1/4

    5 5/8

    1 13/16

    3 3/8

    1

    2 3/8

    20000

    3.55

    1 1/2

    3

    1 1/4

    2 1/2

    4 1/4

    5 5/8

    1 13/16

    3 3/8

    1

    2 3/8

    22000

    3.45

    1 3/4

    4

    2 1/4

    4

    6 1/2

    10

    4

    6 1/4

    1 1/2

    4

    40000

    16.57

    2

    4

    2 1/4

    4

    6 1/2

    10

    4

    6 1/4

    1 1/2

    4

    42000

    16.14

    2 1/4

    4

    2 1/4

    4

    6 1/2

    10

    4

    6 1/4

    1 1/2

    4

    45000

    15.62

    2 1/2

    4

    2 1/4

    4

    6 1/2

    10

    4

    6 1/4

    1 1/2

    4

    52000

    15.06

    If you don’t see what you’re looking for just call one of our team members at +91-22-6659 5285 Or Mail Us inquiry@raajsagarsteels.com. No inquiry is too large or too small, we specialize in locating hard to find items. If you do see what you are looking, we would love to assist you and give you a quote today!

    24 Hrs. Online Whatsapp Number   Contact Person: Mr. Milap Mehta - Cell: +91-9869 532 584

    Our Overseas Sales Distributors

    Mumbai
    Pune
    Aurangabad
    Delhi
    Raipur
    Selangor
    Adelaide
    Nottingham
    Malaysia
    Brisbane
    Exeter
    Birmingham
    Bristol
    Banbury
    Boksburg
    Bedfordshire
    Belfast
    Bedford
    Philippines
    Peterborough
    Portsmouth
    Perth
    Roodepoort
    Singapore
    Cheltenham
    Centurion
    Croydon
    Colchester
    Chesterfield
    Dublin
    Doncaster
    Derby
    Uk
    Pune
    Dorset
    Usa
    Abu Dhabi
    Edmonton
    Edinburgh
    East Rand
    Gauteng
    Ahmedabad
    Gujarat
    Gold Coast
    Glasgow
    Geebung
    Guildford
    Manchester
    Gloucester
    Germiston
    Hyderabad
    Huddersfield
    Hull
    Hampshire
    Hamilton
    Halifax
    Harlow
    India
    Jaipur
    Jharsuguda
    Johannesburg
    Johor
    Kuantan
    Kolkata
    Keighley
    Kent
    Penrith
    Qatar
    Luton
    Leeds
    Delhi
    Reading
    Kolkata
    Uae
    Chennai
    Wakefield
    Walsall
    Wolverhampton
    York
    Yatala
    Toronto
    Leicester
    Liverpool
    London
    Pretoria
    Pune
    Blackpool
    China
    Coventry
    Cape Town
    Cardiff
    Newcastle
    Norwich
    Preston
    Plymouth
    Nz, Canada
    Nagpur
    Vadodara
    Rotherham
    Redditch
    Randburg
    Ottawa
    Milton Keynes
    Melbourne
    Middlesbrough
    Mornington
    India
    North East
    Oldham
    Delhi
    Ahmedabad
    Kolhapur
    Telford
    Toowoomba
    Tamworth
    Northern Ireland
    Caboolture
    Lincoln
    Malaysia
    Makati

    Quick Enquiry


    Types of Eye Nut Bolts in Stock
