    Stainless Steel Nut Manufacturers India

    Stainless Steel Hex Jam Nuts / Coupling Nut / Slotted Nut / Wing Nut / Square Nut / Castle Nut Specifications & Stainless Steel Nut Dimensions

    Acorn Nut (Cap Nut) Dimensions
    BRASS ACORN NUTS OR CAP NUTS
    Nickel Plated Steel Cap Nuts Dimensions
    316 SS ACORN NUTS OR CAP NUTS
    Hex Nylon Insert Lock Nuts
          Metric G304 A2 - SS - DIN985 - UN0455
          Metric G316 (A4) - SS - DIN985 - UN0456
          Imperial UNC G304 A2 - SS - UN0457
          Imperial UNC G316 A4 - SS - UN0458
          Imperial BSW G304 A2 - SS - UN0459
          Imperial BSW G316 A4 - SS - UN0460
          Imperial UNF G304 A2 - SS - UN0461
          Imperial UNF G316 A4 - SS - UN0462
    Stainless Steel Machine Hex Nut Dimensions
    Hex Machine Screw Nut Dimensions
    Square Machine Screw Nut Dimensions
    Stainless Steel Metric Nut Dimensions
    Hex Jam Nuts 18-8 Stainless Steel
    Hex Jam Nuts Zinc Plated Steel
    Hex Jam Nuts Black Oxide 18-8 Stainless Steel
    Hex Jam Nuts Silicon Bronze
    Slotted Nut Dimensions
    Coupling Nut Dimensions
    Rivet Nut Dimensions
    Finished Hex Nut Dimensions

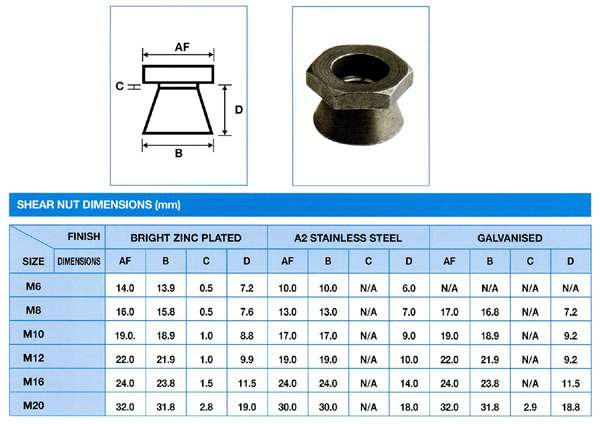

    Security Nut Dimensions

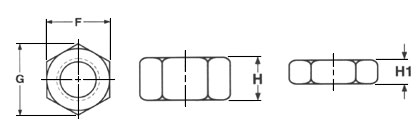

    Imperial Nut Dimensions
    SS T-Nuts - T Nut Dimensions

    K Lock Hex Nut Dimensions
    ZINC PLATED KEPS K LOCK NUTS
    Pin Lock Nut Dimensions
    Castle Nut Dimensions
    hex lock nuts nylon insert
    Thin Nuts Grades and Specification
    Two-Way Reversible Lock Nuts

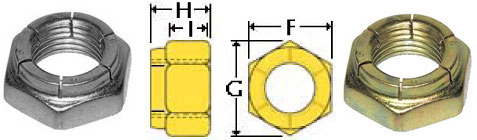

    flexloc nut dimensions

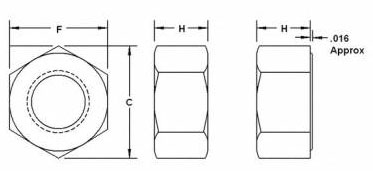

    High Nut Dimensions

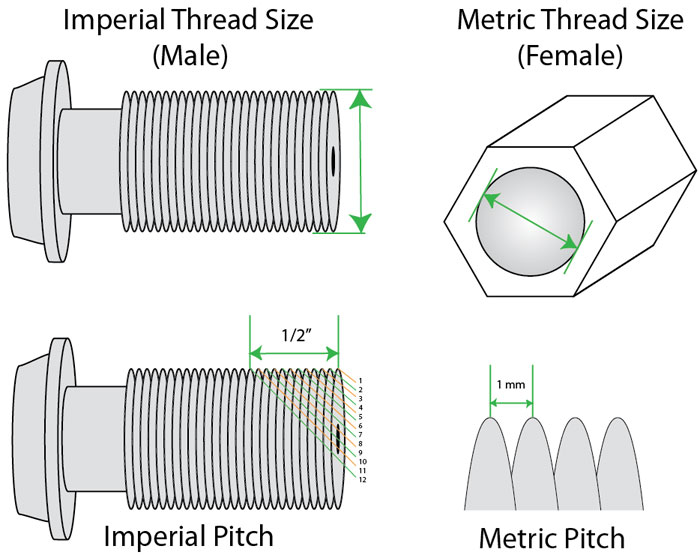

    imperial nut thread sizes
    DIN 982 Nylock Nut Dimensions
    DIN 985 Nylock Nut Dimensions

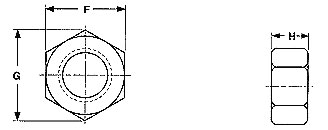

    ACME Hex Nut Dimensions

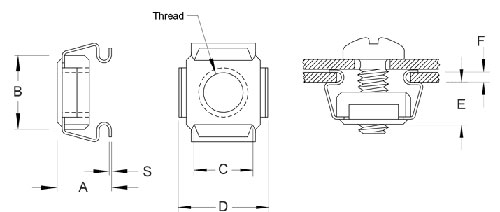

    Cage Nut Dimensions

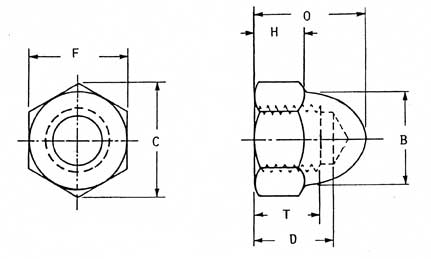

    Domed Cap Nut Dimensions
    DOME Nut Sizes - DIN 1587
    DIN 1587 DOME Nut Price
    Hex Machine Screw Nut

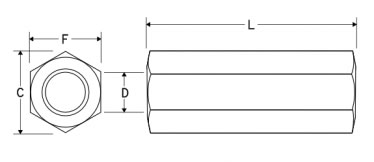

    Sleeve Nut Dimensions
    Serrated Flange Nut Dimensions

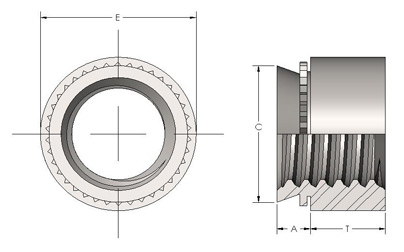

    Self Clinching Nut Dimensions
    Stainless Steel Heavy Hex Nuts
    Stainless steel Wing Nut long type

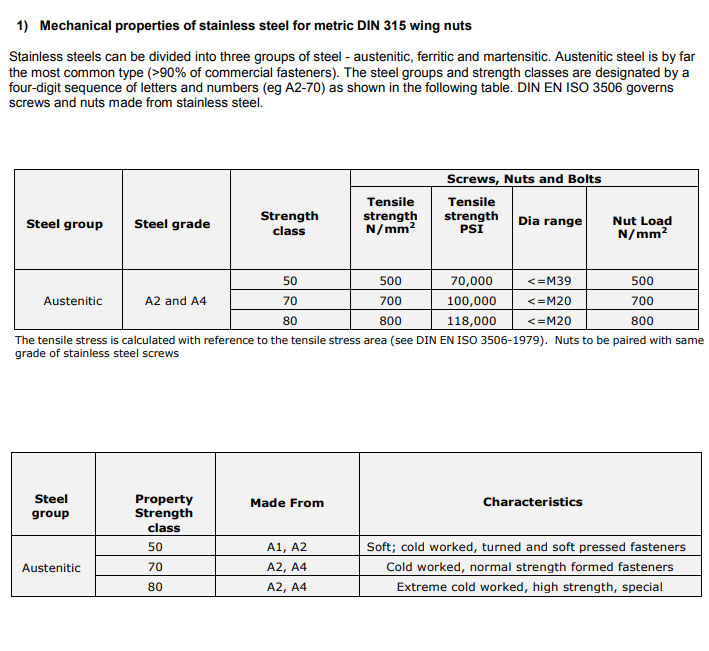

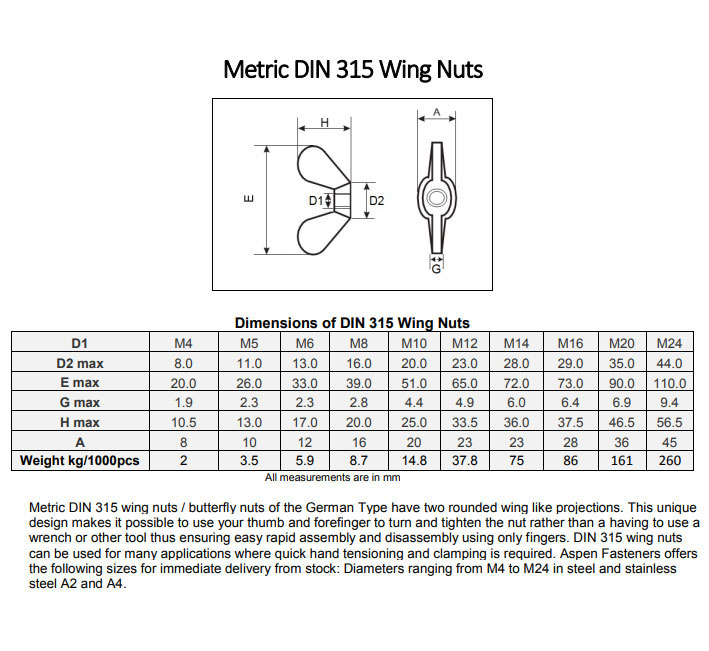

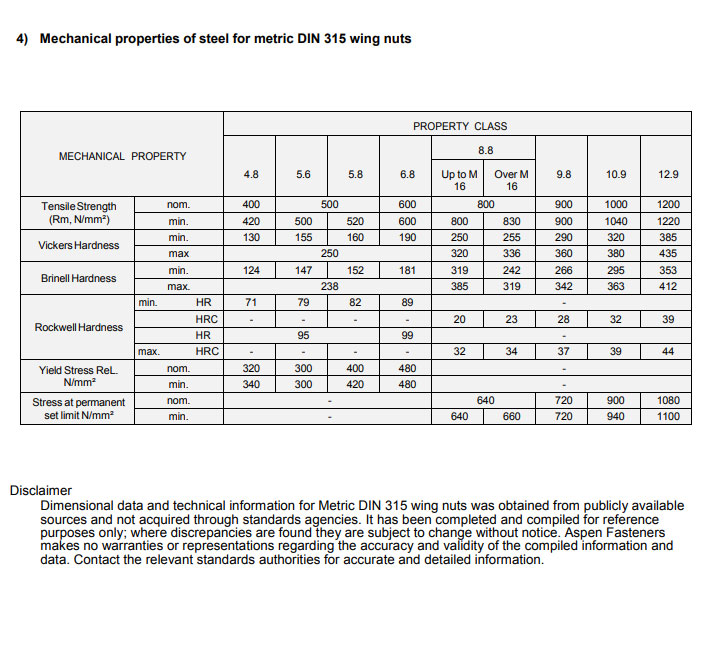

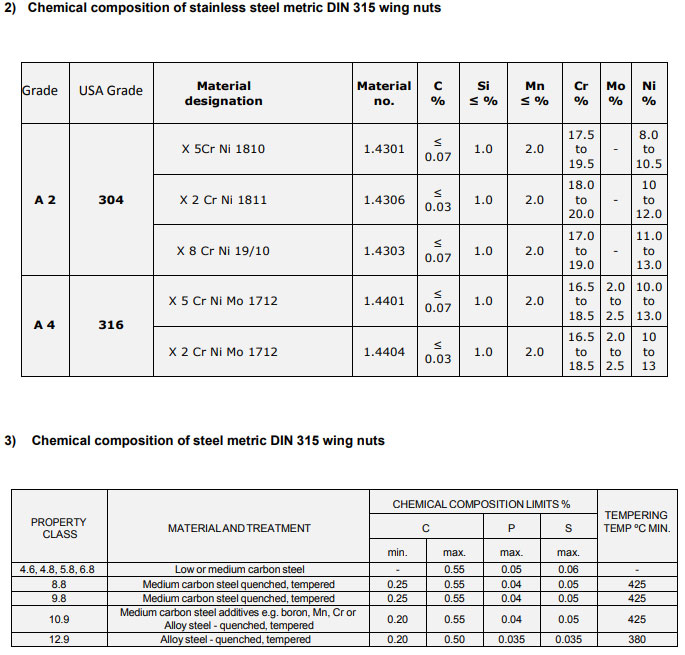

    Metric Din 315 Wing Nut Dimensions
    Stainless Steel Square Nut Dimensions & Price
    HOT DIP GALVANIZED SQUARE NUTS
    Square Nut Zinc Plated Dimensions
    SS Prevailing Torque Lock Nut dimensions

    Stainless Steel Acorn Nuts Suppliers in India

    Acorn Cap Nuts Price Per Piece $1.62 (1.62/ea) to $12.97 (12.97/ea)

    304 STAINLESS STEEL ACORN NUTS OR CAP NUTS

    Cap Nuts 304 Stainless Steel : Acorn / Cap Nuts in 304 Stainless Steel Suppliers in India
    • Hex nut with a closed end
    • Domed thread to protect external thread
    • Low Crown
    • Most Popular style
    • Easily Removable
    • Aesthetic finished look
    Acorn Cap Nuts Price Per Piece $1.62 (1.62/ea) to $12.97 (12.97/ea)

    304 STAINLESS STEEL ACORN NUTS OR CAP Nut Dimensions

    Nut Sizes Flats Height
    #4-40 1/4" 1/4"
    #6-32 5/16" 19/64"
    #8-32 5/16" 5/16"
    #10-24 3/8" 25/64"
    #10-32 3/8" 25/64"
    #12-24 3/8" 27/64"
    1/4"-20 7/16" 15/32"
    1/4"-28 7/16" 15/32"
    5/16"-18 9/16" 17/32"
    5/16"-24 9/16" 17/32"
    3/8"-16 5/8" 5/8"
    3/8"-24 5/8" 5/8"
    7/16"-14 5/8" 23/32"
    1/2"-13 3/4" 13/16"
    1/2"-20 3/4" 13/16"
    5/8"-11 1" 63/64"
    3/4"-10 1-1/16" 1-3/16"

    PRODUCT SPECIFICATIONS
    Color Silver
    Material Stainless Steel 304
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    BRASS ACORN NUTS OR CAP NUTS

    Acorn / Cap Nuts in Solid Brass Suppliers in India

    • Hex nut with a closed end
    • Domed thread to protect external thread
    • Low Crown
    • Most Popular style
    • Easily Removable
    • Aesthetic finished look
    Acorn Cap Nuts Price Per Piece $1.62 (1.62/ea) to $12.97 (12.97/ea)
    Nut Sizes Flats Height
    #4-40 1/4" 1/4"
    #6-32 5/16" 9/32"
    #8-32 5/16" 9/32"
    #10-24 3/8" 11/32"
    #10-32 3/8" 11/32"
    #12-24 3/8" 11/32"
    1/4"-20 7/16" 3/8"
    1/4"-28 7/16" 3/8"
    5/16"-18 9/16" 7/16"
    5/16"-24 9/16" 7/16"
    3/8"-16 5/8" 1/2"
    3/8"-24 5/8" 1/2"
    7/16"-14 3/4" 9/16"
    7/16"-20 3/4" 9/16"
    1/2"-13 3/4" 9/16"
    1/2"-20 3/4" 9/16"
    5/8"-11 1" 3/4"
    5/8"-18 1" 3/4"
    3/4"-10 1-1/16" 7/8"

    PRODUCT SPECIFICATIONS
    Color Yellow
    Material Brass
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Nickel Plated Steel Cap Nuts Suppliers in India

    NICKEL PLATED STEEL ACORN NUTS OR CAP NUTS / Steel Acorn / Cap Nuts with a Nickel Plating for Durability

    • Hex nut with a closed end
    • Domed thread to protect external thread
    • Low Crown
    • Most Popular style
    • Easily Removable
    • Aesthetic finished look

    Acorn Cap Nuts Price Per Piece $1.62 (1.62/ea) to $12.97 (12.97/ea)

    Nickel Plated Steel Cap Nut Dimensions
    Nut Sizes Width Across Flats Height
    #6-32 Max 0.312" - Min 0.302" Max 0.276" - Min 0.244"
    #8-32 Max 0.312" - Min 0.302" Max 0.276" - Min 0.244"
    #10-24 Max 0.375" - Min 0.362" Max 0.335" - Min 0.303"
    #10-32 Max 0.375" - Min 0.362" Max 0.335" - Min 0.303"
    1/4"-20 Max 0.438" - Min 0.423" Max 0.402" - Min 0.362"
    5/16"-18 Max 0.562" - Min 0.545" Max 0.484" - Min 0.444"
    3/8"-16 Max 0.625" - Min 0.607" Max 0.520" - Min 0.480"
    1/2"-13 Max 0.750" - Min 0.736" Max 0.563" - Min 0.523"
    5/8"-11 Max 0.938" - Min 0.922" Max 0.826" - Min 0.787"

    PRODUCT SPECIFICATIONS
    Color Silver
    Finish Nickel Plating
    Material Nickel Plated Steel
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    316 STAINLESS STEEL ACORN NUTS OR CAP NUTS

    Cap Nuts 316 Stainless Steel : Acorn / Cap Nuts in Premium 316 Stainless Steel Suppliers in India

    • Hex nut with a closed end
    • Domed thread to protect external thread
    • Low Crown
    • Most Popular style
    • Easily Removable
    • Aesthetic finished look
    Acorn Cap Nuts Price Per Piece $1.62 (1.62/ea) to $12.97 (12.97/ea)
    Nut Sizes Flats Height
    1/4"-20 7/16" 15/32"
    5/16"-18 9/16" 17/32"
    3/8"-16 5/8" 5/8"
    5/8"-11 1" 63/64"
    3/4"-10 1-1/16" 1-3/16"

    PRODUCT SPECIFICATIONS
    Color Silver
    Corrosion Resistant Yes
    Marine Grade Yes
    Material 316 Stainless Steel
    Product Type Acorn / Cap Nuts
    Thread Direction Right Hand


    stainless steel acorn cap nuts

    Stainless Steel Nyloc Nuts Suppliers in India | SS nyloc Nut Dimensions, a4 stainless steel nyloc nuts, m10 stainless steel nyloc nuts, stainless steel nylock hex nut, stainless steel nyloc nuts

    Nyloc Nuts G304 & G316

    Hex Nylon Insert Lock Nuts - Metric G304 A2 - Stainless Steel - DIN985 - UN0455

    Hex Nylon Insert Lock Nuts Metric G304 A2 Stainless Steel DIN985

    PN

    Diameter

    Material

    Quality

    Box Qty

    Box Weight
    02 M2 Stainless Steel A2 100 0.04
    025 M2.5 Stainless Steel A2 100 0.04
    03 M3 Stainless Steel A2 100 0.05
    04 M4 Stainless Steel A2 100 0.09
    05 M5 Stainless Steel A2 100 0.10
    06 M6 Stainless Steel A2 100 0.22
    08 M8 Stainless Steel A2 100 0.48
    10 M10 Stainless Steel A2 100 1.00
    12 M12 Stainless Steel A2 100 1.72
    16 M16 Stainless Steel A2 50 1.58
    20 M20 Stainless Steel A2 25 1.63


    Hex Nylon Insert Lock Nuts - Metric G316 (A4) - Stainless Steel - DIN985 - UN0456

    Hex Nylon Insert Lock Nuts Metric G316 (A4) Stainless Steel DIN985

    PN

    Diameter

    Material

    Quality

    Box Qty

    Box Weight
    03 M3 Stainless Steel A4 100 0.05
    04 M4 Stainless Steel A4 100 0.09
    05 M5 Stainless Steel A4 100 0.10
    06 M6 Stainless Steel A4 100 0.22
    08 M8 Stainless Steel A4 100 0.48
    10 M10 Stainless Steel A4 100 1.00
    12 M12 Stainless Steel A4 100 1.72
    14 M14 Stainless Steel A4 50 1.14
    16 M16 Stainless Steel A4 50 1.58
    20 M20 Stainless Steel A4 25 1.63
    24 M24 Stainless Steel A4 25 2.66
    30 M30 Stainless Steel A4 10 2.12
    36 M36 Stainless Steel A4 5 0.00

    Hex Nylon Insert Lock Nuts - Imperial UNC G304 A2 - Stainless Steel - UN0457

    Hex Nylon Insert Lock Nuts Imperial UNC G304 A2 Stainless Steel

    PN

    Diameter

    Material

    Quality

    Box Qty
    04 4-40 Stainless Steel A2 100
    05 5-40 Stainless Steel A2 100
    06 6-32 Stainless Steel A2 100
    08 8-32 Stainless Steel A2 100
    10 10-24 Stainless Steel A2 100
    014 1/4 Stainless Steel A2 100
    516 5/16 Stainless Steel A2 100
    038 3/8 Stainless Steel A2 100
    012 1/2 Stainless Steel A2 100
    058 5/8 Stainless Steel A2 50
    034 3/4 Stainless Steel A2 25
    100 1 Stainless Steel A2 25

    Hex Nylon Insert Lock Nuts - Imperial UNC G316 A4 - Stainless Steel - UN0458

    Hex Nylon Insert Lock Nuts Imperial UNC G316 A4 Stainless Steel

    PN

    Diameter

    Material

    Quality

    Box Qty
    - - Stainless Steel A2 100
    014 1/4 Stainless Steel A2 100
    516 5/16 Stainless Steel A2 100
    038 3/8 Stainless Steel A2 100
    716 7/16 Stainless Steel A2 100
    012 1/2 Stainless Steel A2 100
    058 5/8 Stainless Steel A2 50
    034 3/4 Stainless Steel A2 25
    078 7/8 Stainless Steel A2 25
    100 1 Stainless Steel A2 25
    118 1 1/8 Stainless Steel A2 20
    114 1 1/4 Stainless Steel A2 10
    112 1 1/2 Stainless Steel A2 5

    Hex Nylon Insert Lock Nuts - Imperial BSW G304 A2 - Stainless Steel - UN0459

    Hex Nylon Insert Lock Nuts Imperial BSW G304 A2 Stainless Steel

    PN

    Diameter

    Material

    Quality

    Box Qty
    012 1/2 Stainless Steel A2 100

    Hex Nylon Insert Lock Nuts - Imperial BSW G316 A4 - Stainless Steel - UN0460

    Hex Nylon Insert Lock Nuts Imperial BSW G304 A2 Stainless Steel

    PN

    Diameter

    Material

    Quality

    Box Qty
    012 1/2 Stainless Steel A2 100

    Hex Nylon Insert Lock Nuts - Imperial UNF G304 A2 - Stainless Steel - UN0461

    Hex Nylon Insert Lock Nuts Imperial BSW G304 A2 Stainless Steel

    PN

    Diameter

    Material

    Quality

    Box Qty
    012 1/2 Stainless Steel A2 100

    Hex Nylon Insert Lock Nuts - Imperial UNF G316 A4 - Stainless Steel - UN0462

    Hex Nylon Insert Lock Nuts Imperial BSW G304 A2 Stainless Steel

    PN

    Diameter

    Material

    Quality

    Box Qty
    012 1/2 Stainless Steel A2 100

    Stainless Steel Nylock Nuts - Nylon Insert Self Locking Nut, DIN 985
    Stainless Steel Nylock Nuts have a nylon insert to prevent the nut working loose. Available in A4 / 316 Stainless Steel. All manufactured to DIN 985 standard.

    Stainless Steel Machine Hex Nuts Suppliers in India

    Machine Hex Nut Dimensions

    Hex Machine Screw Nut Dimensions



    Nom.

    Size



    Basic

    Diameter

    Width

    Thickness



    Across

    Flats



    Across

    Corners

    Nom.

    #0

    0.0600

    5/32

    11/64

    3/64

    #1

    0.0730

    5/32

    11/64

    3/64

    #2

    0.0860

    3/16

    7/32

    1/16

    #3

    0.0990

    3/16

    7/32

    1/16

    #4

    0.1120

    1/4

    9/32

    3/32

    #5

    0.1250

    5/16

    23/64

    7/64

    #6

    0.1380

    5/16

    23/64

    7/64

    #8

    0.1640

    11/32

    25/64

    1/8

    #10

    0.1900

    3/8

    27/64

    1/8

    #12

    0.2160

    7/16

    1/2

    5/32

    1/4

    0.2500

    7/16

    1/2

    3/16

    5/16

    0.3125

    9/16

    41/64

    7/32

    3/8

    0.3750

    5/8

    45/64

    1/4

    Hex Machine Screw Nut Dimensions. Nominal size as a number/fraction and in decimal inches, and width and thickness in inches. (Note: Width across flats is basic width; width across corners and thickness are a calculated average rounded to the nearest 64th.)

    Square Machine Screw Nut Dimensions. Nominal size as a number/fraction and in decimal inches, and width and thickness in inches. (Note: Width across flats is basic width; width across corners and thickness are a calculated average rounded to the nearest 64th.)

    Square Machine Screw Nut Dimensions



    Nut

    Size



    Nom.

    Diameter

    Width

    Thickness



    Across

    Flats



    Across

    Corners

    Nom.

    #0

    0.0600

    5/32

    7/32

    3/64

    #1

    0.0730

    5/32

    7/32

    3/64

    #2

    0.0860

    3/16

    1/4

    1/16

    #3

    0.0990

    3/16

    1/4

    1/16

    #4

    0.1120

    1/4

    11/32

    3/32

    #5

    0.1250

    5/16

    27/64

    7/64

    #6

    0.1380

    5/16

    27/64

    7/64

    #8

    0.1640

    11/32

    15/32

    1/8

    #10

    0.1900

    3/8

    33/64

    1/8

    #12

    0.2160

    7/16

    19/32

    5/32

    1/4

    0.2500

    7/16

    19/32

    3/16

    5/16

    0.3125

    9/16

    49/64

    7/32

    3/8

    0.3750

    5/8

    55/64

    1/4

    Stainless Steel Metric Nuts Suppliers in India

    ASTM Specifications for Metric Nuts Fasteners

    A194

    - Standard Specification for Carbon and Alloy Steel Nuts for Bolts for High Pressure or High Temperature Service

    A563

    Standard Specification for Wrought Cobalt-20 Nickel-20 Chromium-3.5Molybdenum-3.5Tungsten-5Iron Alloy for Surgical Implant Applications

    A594

    Standard Specification for Stainless Steel Nuts , Corrosive service applications

    F467

    - Standard Specification for Nonferrous Nuts for General Use , general use

    The Metric System

    One problem with standardizing the metric system is the initiative to fully convert metric specifications to an ISO standard. Although the process has begun, most industries are unenthusiastic about converting from DIN or metric ANSI.

    Product Type Metric Specification Scope
    Din ISO ANSI/ASME
    HCS 931 4014 B18.2.3.1M Partially Threaded
    933 4017 Fully Threaded
    960 8676 Partially Threaded (Fine)
    961 8765 Partially Threaded (Fine)
    Hex Nuts 934 4032 B18.2.4.1M (style 1) Classes 6, 8, & 10
    SHCS 912 4762 B18.3.1
    BHSHCS N/A 7380 B18.3.4M
    FHSCS N/A 7991 B18.3.5

    The Metric System

    One problem with standardizing the metric system is the initiative to fully convert metric specifications to an ISO standard. Although the process has begun, most industries are unenthusiastic about converting from DIN or metric ANSI.

    Product Type

    Metric Specification

    Scope

    Din

    ISO

    ANSI/ASME

    HCS

    931

    4014

    B18.2.3.1M

    Partially Threaded

    933

    4017

    Fully Threaded

    960

    8676

    Partially Threaded (Fine)

    961

    8765

    Partially Threaded (Fine)

    Hex Nuts

    934

    4032

    B18.2.4.1M (style 1)

    Classes 6, 8, & 10

    SHCS

    912

    4762

    B18.3.1

    BHSHCS

    N/A

    7380

    B18.3.4M

    FHSCS

    N/A

    7991

    B18.3.5

    Metric Nut Dimensions

    Metric Hex Nuts
    ISO 4032

    Nominal Size

    Thread
    Pitch

    F

    G

    H

    Width Across Flats
    (Wrench Size)

    Width
    Across
    Corners

    Thickness

    Max

    Min

    Min

    Max

    Min

    M1.6

    0.35

    3.2

    3.02

    3.41

    1.3

    1.05

    M2

    0.4

    4

    3.82

    4.32

    1.6

    1.35

    M2.5

    0.45

    5

    4.82

    5.45

    2

    1.75

    M3

    0.5

    5.5

    5.32

    6.01

    2.4

    2.15

    M4

    0.7

    7

    6.78

    7.66

    3.2

    2.9

    M5

    0.8

    8

    7.78

    8.79

    4.7

    4.4

    M6

    1

    10

    9.78

    11.05

    5.2

    4.9

    M8

    1.25

    13

    12.73

    14.38

    6.8

    6.44

    M10

    1.5

    16

    15.73

    17.77

    8.4

    8.04

    M12

    1.75

    18

    17.73

    20.03

    10.8

    10.37

    M14

    2

    21

    20.67

    23.35

    12.8

    12.1

    M16

    2

    24

    23.67

    26.75

    14.8

    14.1

    M20

    2.5

    30

    29.16

    32.95

    18

    16.9

    M24

    3

    36

    35

    39.55

    21.5

    20.2

    M30

    3.5

    46

    45

    50.85

    25.6

    24.3

    M36

    4

    55

    53.8

    60.78

    31

    29.4

    M42

    4.5

    65

    63.1

    71.3

    34

    32.4

    M48

    5

    75

    73.1

    82.6

    38

    36.4

    M56

    5.5

    85

    82.8

    93.56

    45

    43.4

    M64

    6

    95

    92.8

    104.86

    51

    49.1

    Hex Jam Nuts 18-8 Stainless Steel : 304 STAINLESS STEEL JAM NUTS

    Hex Jam Nuts 18-8 Stainless Steel : Hex Jam Nuts Thin - 304 Stainless Steel Suppliers in India

    • Comparable to hex finish nuts but thinner, allowing the nut to "jam"
    • Used for clamping nuts together without clamping against another object
    • The nuts are tightened against each other instead
    • Secure an item to a fastener without exerting force on it
    • UNC coarse and UNF Fine thread options available

    PRODUCT SPECIFICATIONS
    Color Silver
    Corrosion Resistant Yes
    Material 18-8 Stainless Steel
    Product Type Hex Jam Nut
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Nut Sizes Flats Thickness
    1/4" 7/16" 5/32"
    5/16" 1/2" 3/16"
    3/8" 9/16" 7/32"
    7/16" 11/16" 1/4"
    1/2" 3/4" 5/16"
    5/8" 15/16" 3/8"
    3/4" 1-1/8" 27/64"

    Hex Jam Nuts Zinc Plated Steel : ZINC PLATED HEX JAM NUTS
    Jam Nuts (Thin) with a Case Hardened, Zinc Plated Finish

    • Comparable to hex finish nuts but thinner
    • Available in UNC and UNF sizes
    • Used for clamping nuts together without clamping against another object
    • The nuts are tightened against each other instead
    • Secure an item to a fastener without exerting force on it

    PRODUCT SPECIFICATIONS

    Color Silver
    Finish Case Hardened (CR+3) Zinc Plated
    Material Steel
    Product Type Hex Jam Nut
    Standards Met REACH, RoHS
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Nut Size Width Across Flats Height
    1/4" 7/16" 5/32"
    5/16" 1/2" 3/16"
    3/8" 9/16" 7/32"
    7/16" 11/16" 1/4"
    1/2" 3/4" 5/16"
    9/16" 7/8" 5/16"
    5/8" 15/16" 3/8"
    3/4" 1-1/8" 27/64"
    7/8" 1-5/16" 31/64"
    1" 1-1/2" 35/64"

    Hex Jam Nuts Black Oxide 18-8 Stainless Steel : BLACK OXIDE STAINLESS STEEL HEX JAM NUTS
    Hex Jam Nuts Thin - Black Oxide 18-8 Stainless Steel

    • Comparable to hex finish nuts but thinner, allowing for two to be used to clamp against each other
    • Used for clamping nuts together without clamping against another object
    • Secure an item to a fastener without exerting force on it
    • Abrasion Resistant Black Oxide 18-8 Stainless Steel
    • Commonly used in the automotive, tool manufacturing, firearms and knife building industries.

    PRODUCT SPECIFICATIONS
    Color Black
    Corrosion Resistant Yes
    Finish Black Oxide
    Material 18-8 Stainless Steel
    Product Type Hex Jam Nut
    Thread Direction Right Hand
    Thread Standard UNC
    Thread Type Coarse
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Nut Sizes Flats Thickness
    1/4"-20 7/16" 5/32"
    5/16"-18 1/2" 3/16"
    3/8"-16 9/16" 7/32"
    1/2"-13 3/4" 5/16"

    Hex Jam Nuts Silicon Bronze : SILICON BRONZE HEX JAM NUTS
    Hex Jam Nuts suitable for Marine, High Heat, and Environment Applications

    • Comparable to hex finish nuts but thinner
    • Available in UNC and UNF sizes
    • Used for clamping nuts together without clamping against another object
    • Two nuts are tightened against each other instead
    • Secure an item to a fastener without exerting force on it
    • Marine Grade Silicon Bronze
    • Highly corrosion and temperature resistant

    PRODUCT SPECIFICATIONS
    Color Bronze
    Color May Vary Color and sheen may vary for brass and silicon bronze fasteners
    Corrosion Resistant Yes
    Marine Grade Yes
    Material Silicon Bronze
    Product Type Hex Jam Nut
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Nut Sizes Flats Thickness
    1/4" 7/16" 5/32"
    5/16" 1/2" 3/16"
    3/8" 9/16" 7/32"
    7/16" 11/16" 1/4"
    1/2" 3/4" 5/16"
    5/8" 15/16" 3/8"
    3/4" 1-1/8" 27/64"

    Stainless Steel Slotted Nuts Suppliers in India

    Slotted Nut Dimensions

    Slotted Hex Nuts



    Nominal

    Size or

    Basic Major Diameter

    of Thread

    F

    G

    H

    T

    S

    Runout of Bearing Surface FIM

    Width Across Flats

    Width Across Corners

    Thickness

    Unslotted Thickness

    Width of Slot

    Basic

    Max

    Min

    Max

    Min

    Basic

    Max

    Min

    Max

    Min

    Max

    Min

    Max
    3/8 0.3750 9/16 0.562 0.551 0.650 0.628 21/64 0.337 0.320 0.21 0.19 0.150 0.12 0.018
    7/16 0.4375 11/16 0.688 0.675 0.794 0.768 3/8 0.385 0.365 0.23 0.21 0.15 0.12 0.018
    1/2 0.5000 3/4 0.750 0.736 0.866 0.840 7/16 0.448 0.427 0.29 0.27 0.18 0.15 0.019
    5/8 0.6250 15/16 0.938 0.922 1.083 1.051 35/64 0.559 0.535 0.34 0.32 0.24 0.18 0.021
    3/4 0.7500 1-1/8 1.125 1.088 1.299 1.240 41/64 0.665 0.617 0.40 0.38 0.24 0.18 0.023
    7/8 0.8750 1-5/16 1.312 1.269 1.516 1.447 3/4 0.776 0.724 0.52 0.49 0.24 0.18 0.025
    1 1.0000 1-1/2 1.500 1.450 1.732 1.653 55/64 0.887 0.831 0.59 0.56 0.30 0.24 0.027
    1-1/8 1.1250 1-11/16 1.688 1.631 1.949 1.859 31/32 0.999 0.939 0.64 0.61 0.33 0.24 0.030
    1-1/4 1.2500 1-7/8 1.875 1.812 2.165 2.066 1-1/16 1.094 1.030 0.70 0.67 0.40 0.31 0.033
    1-1/2 1.5000 2-1/4 2.250 2.175 2.598 2.480 1-9/32 1.317 1.245 0.86 0.82 0.46 0.37 0.039

    Coupling Nut Dimensions

    Stock

    • Diameters: 1/2″ – 1″
    • Origin: Domestic and import
    • Finish: Plain and hot-dip galvanized
    • Grades: A563 (grades A and DH)

    Available

    • Diameters: 1/2″ – 6″
    • Origin: Domestic and import
    • Finish: Plain and hot-dip galvanized
    • Grades: A563 (grades A, C, and DH), A194 grade 2H

    Finished Hex Coupler Pattern

    Nominal Size F C H Part Numbers
    Width Across Flats Width Across Corners Length/Thickness Import
    Basic Max Min Max Min Basic Max Min Plain Galvanized

    1⁄2

    11⁄16

    0.688

    0.663

    0.794

    0.756

    13⁄4

    1.760

    1.690

    12338

    17525

    5⁄8

    13⁄16

    0.813

    0.782

    0.939

    0.891

    21⁄8

    2.135

    2.067

    12559

    18195

    3⁄4

    1

    1.000

    0.963

    1.155

    1.097

    21⁄4

    2.260

    2.190

    12557

    17526

    7⁄8

    11⁄4

    1.250

    1.212

    1.443

    1.382

    21⁄2

    2.510

    2.440

    12558

    19504

    1

    13⁄8

    1.375

    1.325

    1.588

    1.511

    23⁄4

    2.760

    2.690

    -

    18494

    11⁄8

    11⁄2

    1.500

    1.450

    1.732

    1.653

    3

    3.010

    2.940

    18394

    -

    11⁄4

    15⁄8

    1.625

    1.575

    1.876

    1.825

    3

    3.010

    2.940

    18994

    17529

    11⁄2

    2

    2.000

    1.950

    2.309

    2.275

    31⁄2

    3.510

    3.440

    -

    -

    Dimensions per ASME B18.2.2 2010

    Rivet Nut Dimensions - Stainless Steel Rivet Nuts Suppliers in India

    Types of Stainless Steel Rivet Nuts
    Stainless Steel IN39006S Metsert - Low Profile Head - Splined Body
    Stainless Steel AL Series - Thin Flanged Head - Round Splined Body
    Stainless Steel IN9408S Metsert - Flanged Head - Splined Body
    Stainless Steel INOX - Low Profile Head - Round Body
    Stainless Steel INOX-CE - Low Profile Head - Round Body - Closed End
    Stainless Steel IN9410S - Flanged Head - Round Body - Closed End
    Stainless Steel IN39102 - Low Profile Head - Half Hex Body
    Stainless Steel IN39102CE - Low Profile Head - Closed End - Half Hex Body
    Stainless Steel IN94102 - Flanged Head - Half Hex Body

    Rivet Nut Dimensions

    Thread Size

    Steel Marson #

    Aluminum Marson #

    D

    B

    C

    A

    Grip Range

    Hole Size

    Drill Size

    Body Dia.

    Head Dia.

    Head Height

    Body Length

    Min

    Max

    Min

    Max

    6-32

    57110

    57210

    .189

    .325

    .032

    .438

    .010

    .075

    .189

    .193

    # 12

    8-32

    57120

    57220

    .221

    .357

    .032

    .438

    .010

    .075

    .221

    .226

    # 2

    8-32

    57121

    57221

    .221

    .357

    .032

    .500

    .075

    .120

    .221

    .226

    # 2

    10-24

    57130

    57230

    .250

    .406

    .038

    .531

    .010

    .080

    .250

    .254

    1/4″

    10-24

    57132

    57232

    .250

    .406

    .038

    .594

    .080

    .130

    .250

    .254

    1/4″

    10-32

    57140

    57240

    .250

    .406

    .038

    .531

    .010

    .080

    .250

    .254

    1/4″

    10-32

    57142

    57242

    .250

    .406

    .038

    .594

    .080

    .130

    .250

    .254

    1/4″

    1/4-20

    57150

    57250

    .332

    .475

    .058

    .625

    .010

    .080

    .332

    .338

    Q

    1/4-20

    57152

    57252

    .332

    .475

    .058

    .687

    .080

    .140

    .332

    .338

    Q

    1/4-20

    57154

    57254

    .332

    .475

    .058

    .750

    .140

    .200

    .332

    .338

    Q

    5/16-18

    57171

    57271

    .413

    .665

    .062

    .750

    .030

    .125

    .413

    .423

    Z

    5/16-18

    57174

    57274

    .413

    .665

    .062

    .875

    .125

    .200

    .413

    .423

    Z

    3/8-16

    57181

    57281

    .490

    .781

    .088

    .844

    .030

    .115

    .490

    .500

    12.5mm

    3/8-16

    57184

    57284

    .490

    .781

    .088

    .938

    .115

    .200

    .490

    .500

    12.5mm

    Finished Hex Nut Dimensions - Stainless Steel Finished Hex Nuts Suppliers in India

    3/8"-16 18-8 Stainless Steel Finished Hex Nut
    Wrench Size, 9/16". Grade, 18-8. Thread Size, 16. Thickness, 0.328". Diameter-Thread Size, 3/8"-16. Finish, Plain. Diameter, 3/8". Specification, ASTM F594. Material, Stainless Steel. Thread, Coarse. Type, Hex Nut. System of Measurement, Imperial (Inch). Product Weight, 0.81. UOM, Pkg of 50 ...

    1"-14 18-8 Stainless Steel Finished Hex Nut
    Finish, Plain. Diameter, 1". Specification, ASTM F594. Material, Stainless Steel. Thread, Fine. Type, Hex Nut. System of Measurement, Imperial (Inch). Product Weight, 0.286. UOM, Each. Catalog Page, BBV11, Page 01-187. Notes. The most versatile and widely used nut, it should be used with any low carbon bolt or screw ...

    1/4"-20 18-8 Stainless Steel Finished Hex Nut
    Wrench Size, 7/16". Grade, 18-8. Thread Size, 20. Thickness, 0.219". Diameter-Thread Size, 1/4"-20. Finish, Plain. Diameter, 1/4". Specification, ASTM F594. Material, Stainless Steel. Thread, Coarse. Type, Hex Nut. System of Measurement, Imperial (Inch). Product Weight, 0.75. UOM, Pkg of 100 ...

    1/2"-13 18-8 Stainless Steel Finished Hex Nut
    Wrench Size, 3/4". Grade, 18-8. Thread Size, 13. Thickness, 0.437". Diameter-Thread Size, 1/2"-13. Finish, Plain. Diameter, 1/2". Specification, ASTM F594. Material, Stainless Steel. Thread, Coarse. Type, Hex Nut. System of Measurement, Imperial (Inch). Product Weight, 0.9475. UOM, Pkg of 25 ...

    1-1/4"-12 316 Stainless Steel Finished Hex Nut
    Finish, Plain. Diameter, 1-1/4". Material, Stainless Steel. Specification, ASTM F594. Thread, Fine. Type, Hex Nut. System of Measurement, Imperial (Inch). Product Weight, 0.549. UOM, Each. Catalog Page, BBV11, Page 01-187. Notes. 316 Stainless Steel. ANSI B1.1 UNC and UNF Class 2B thread requirement. Stainless

    Finished Hex Nut Dimensions

    Stock

    • Diameters: 3/8″ – 1-1/2″
    • Grade: ASTM A563
    • Origin: Domestic and import
    • Finish: Plain and hot-dip galvanized

    Nominal Size or Basic Major Thread Diameter

    F

    G

    H

    Width

    Across Flats

    Width

    Across Corners

    Thickness

    Basic

    Max

    Min

    Max

    Min

    Basic

    Max

    Min

    1/4

    .2500

    7/16

    .438

    .428

    .505

    .488

    7/32

    .226

    .212

    5/16

    .3125

    1/2

    .500

    .489

    .577

    .557

    17/64

    .273

    .258

    3/8

    .3750

    9/16

    .562

    .551

    .650

    .628

    21/64

    .337

    .320

    7/16

    .4375

    11/16

    .688

    .675

    .794

    .768

    3/8

    .385

    .365

    1/2

    .5000

    3/4

    .750

    .736

    .866

    .840

    7/16

    .448

    .427

    9/16

    .5625

    7/8

    .875

    .861

    1.010

    .982

    31/64

    .496

    .473

    5/8

    .6250

    15/16

    .938

    .922

    1.083

    1.051

    35/64

    .559

    .535

    3/4

    .7500

    1-1/8

    1.125

    1.088

    1.299

    1.240

    41/64

    .665

    .617

    7/8

    .8750

    1-5/16

    1.312

    1.269

    1.516

    1.447

    3/4

    .776

    .724

    1

    1.0000

    1-1/2

    1.500

    1.450

    1.732

    1.653

    55/64

    .887

    .831

    1-1/8

    1.1250

    1-11/16

    1.688

    1.631

    1.949

    1.859

    31/32

    .999

    .939

    1-3/8

    1.3750

    2-1/16

    2.062

    1.994

    2.382

    2.273

    1-11/64

    1.206

    1.138

    1-1/2

    1.500

    2-1/4

    2.250

    2.175

    2.598

    2.480

    1-9/32

    1.317

    1.245

    1-5/8

    1.6250

    2-7/16

    2.438

    2.356

    2.815

    2.686

    1-25/64

    1.429

    1.353

    1-3/4

    1.7500

    2-5/8

    2.625

    2.538

    3.031

    2.893

    1-1/2

    1.540

    1.460

    2

    2.0000

    3

    3.000

    2.900

    3.464

    3.306

    1-23/32

    1.763

    1.675

    2-1/4

    2.2500

    3-3/8

    3.375

    3.263

    3.897

    3.719

    1-15/16

    1.986

    1.890

    2-1/2

    2.5000

    3-3/4

    3.750

    3.625

    4.330

    4.133

    2-5/32

    2.209

    2.105

    2-3/4

    2.7500

    4-1/8

    4.125

    3.988

    4.763

    4.546

    2-3/8

    2.431

    2.319

    Stainless Steel Security Nuts Suppliers in India

    Security Nut Dimensions

    security-nut-dimensions

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    Hexagon Nuts
    DIN 934
    BS 1768
    BS 1769
    BS 1083
    BS 3692
    ISO 4032
    ISO 4033
    ANSI B18.2.2

    Imperial Nut Dimensions

    imperial-nut-dimension

    Dimensions for Imperial Nuts
    NominalOr

    Basic Major Dia of Thread

    		 F G H H1
    Width Across Flats Width Across Corners Thickness Hex Nuts & Reversible Lock Nuts Thickness HexJam Nuts
    Basic Max Min Max Min Basic Max Mmin Basic Max Min
    8
    0.1640
    10
    0.1900
    1/4
    0.2500
    5/16
    0.3125
    		11/323/8

    7/16

    1/2

    		 0.3440.375

    0.438

    0.500

    		 0.3320.362

    0.428

    0.489

    		 0.3970.433

    0.505

    0.577

    		 0.3780.413

    0.488

    0.557

    		 —-

    7/32

    17/64

    		 0.2030.203

    0.226

    0.273

    		 0.1870.187

    0.212

    0.258

    		 —-

    5/32

    3/16

    		 —-

    0.164

    0.195

    		 —-

    0.150

    0.180
    3/8
    0.3750
    7/16
    0.4375
    1/2
    0.5000
    9/16
    0.5625
    		9/1611/16

    3/4

    7/8

    		 0.5620.688

    0.750

    0.875

    		 0.5510.675

    0.736

    0.861

    		 0.6500.794

    0.866

    1.010

    		 0.6280.768

    0.840

    0.982

    		 21/643/8

    7/16

    31/64

    		 0.3370.385

    0.448

    0.496

    		 0.3200.365

    0.427

    0.473

    		 7/321/4

    5/16

    5/16

    		 0.2270.260

    0.323

    0.324

    		 0.2100.240

    0.302

    0.301
    5/8
    0.6250
    3/4
    0.7500
    7/8
    0.8750
    1
    1.0000
    		15/161-1/8

    1-5/16

    1-1/2

    		 0.9381.125

    1.312

    1.500

    		 0.9221.088

    1.269

    1.450

    		 1.0831.299

    1.516

    1.732

    		 1.0511.240

    1.447

    1.653

    		 35/6441/64

    3/4

    55/64

    		 0.5590.665

    0.776

    0.887

    		 0.5350.617

    0.724

    0.831

    		 3/827/64

    31/64

    35/64

    		 0.3870.446

    0.510

    0.575

    		 0.3630.398

    0.458

    0.519
    1-1/8
    1.1250
    1-1/4
    1.2500
    1-3/8
    1.3750
    1-1/2
    1.5000
    		1-11/161-7/8

    2-1/16

    2-1/4

    		 1.6881.875

    2.062

    2.250

    		 1.6311.812

    1.994

    2.175

    		 1.9492.165

    2.382

    2.598

    		 1.8592.066

    2.273

    2.480

    		 31/321-1/6

    1-11/64

    1-9/32

    		 0.9991.094

    1.206

    1.317

    		 0.9391.030

    1.138

    1.245

    		 39/6423/32

    25/32

    27/32

    		 0.6390.751

    0.815

    0.880

    		 0.5790.687

    0.747

    0.808
    1-5/8
    1.6250
    1-3/4
    1.7500
    2
    2.0000
    2-1/4
    2.2500
    		2-7/162-5/8

    3

    3-3/8

    		 2.4382.625

    3.000

    3.375

    		 2.3562.538

    2.900

    3.263

    		 2.8153.031

    3.464

    3.897

    		 2.6862.893

    3.306

    3.719

    		 1-25/641-1/2

    1-23/32

    1-15/16

    		 1.4291.540

    1.763

    1.986

    		 1.3531.460

    1.675

    1.890

    		 29/3231/32

    1-3/32

    1-7/32

    		 0.9451.009

    1.138

    1.267

    		 0.8690.929

    1.050

    1.171
    2-1/2
    2.5000
    2-3/4
    2.7500
    3
    3.0000
    		3-3/44-1/8

    4-1/2

    		 3.7504.125

    4.500

    		 3.6253.988

    4.350

    		 4.3304.763

    5.196

    		 4.1334.546

    4.959

    		 2-5/322-3/8

    2-19/32

    		 2.2092.431

    2.654

    		 2.1052.319

    2.534

    		 1-11/321-15/32

    1-19/32

    		 1.3961.525

    1.654

    		 1.2921.413

    1.534

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    T Nut Dimensions - Stainless Steel T-Nuts Suppliers in India

    Available T Nuts Sizes

    • 5/16-18 Black Zinc 15S Thread Economy T-Nut
    • 1/4-20 Black Zinc 10S Thread Economy T-Nut
    • 3917 5/16-18 Drop In T-Nut W/Ball & Spring
    • 1/4-20 Black Zinc 10S Thread Double Economy T-Nut
    • 5/16-18 Black Zinc 15S Drop In T-Nut
    • 5/16-18 Black Zinc Thread Double Economy 15S T-Nut
    • 1/4-20 Black Zinc 10S Drop In T-Nut
    • 13041 5/16-18 Black Zinc Roll-In T-Slot Nut
    • M8 13.5mm x 22mm Zinc Self Align Roll-In T-Nut w/Ball Spring
    • M8 X 1.25 45 Series Drop-In T-Nut
    • 15S 5/16″-18 0.625″ x 3.560″ Black Zinc Triple Economy T-Nut
    • 15S Anchor Fastener w/ 5/16-18 Bolt & Standard T-Nut
    • 1/4″-20 0.310″ x 0.625″ Bright Zinc Z-Nut Fastener
    • 10S 1/4″-20 0.443″ x 1″ Bright Zinc Economy T-Nut
    • M6 9.7mm x 19mm Zinc Slot 10 Drop-In T-Nut
    • 10S 1/4″-20 0.431″ x 0.490″Black Zinc Standard T-Nut
    • 13040 5/16-18 Zinc Roll-In T-Slot Nut
    • 40S M8 x 1.25 16mm x 24.99mm Bright Zinc Economy T-Nut
    • 15S 5/16″-18 0.637″ x 0.984″ Bright Zinc Economy T-Nut
    • 15S 1/4″-20 0.510″ x 0.875″ Zinc Drop-In T-Nut w/Ball Spring

    T Nut Dimensions

    THREAD SIZE (A)

    B

    C

    D

    E

    F

    M3

    5

    0.8

    4.2

    4.8

    13

    M4

    6

    1

    5

    5.6

    15

    M4

    8

    1

    7

    5.6

    17.8

    M5

    6

    1

    5

    6.5

    15

    M5

    6

    1.1

    4.9

    6.4

    17

    M5

    8

    1.3

    6.7

    7

    17

    M5

    9

    1.1

    7.9

    6.4

    17.8

    M5

    10

    1

    9

    6.4

    17.8

    M6

    8

    1.2

    6.8

    7.7

    17.8

    M6

    8.9

    1

    7.9

    7.5

    17.8

    M6

    9

    1.3

    7.8

    7.7

    19

    M6

    12

    1.3

    10.7

    7.7

    19

    M6

    14

    1.3

    12.7

    7.7

    19

    M8

    11

    1.5

    9.5

    10

    22

    M8

    12.3

    1.5

    10.8

    10.8

    22.5

    M8

    15

    1.6

    13.4

    10.3

    22

    M8

    16.5

    1.4

    15.1

    9.8

    22.5

    M8

    17

    1.6

    15.4

    9.9

    22

    M10

    12

    1.8

    10.2

    12

    25

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    Stainless Steel K-Lock Nuts Suppliers in India

    K Lock Hex Nut, Stainless Steel 18 8 (inch)

    Stainless steel K Lock hex nuts are internally threaded, hexagonal fastener with an attached, free-moving external tooth lock washer attached. The prre-assembly saves on installation time while the lock washer feature provides added protection against loosening. Made of stainless steel, K Lock hex nuts are resistant to corrosion.

    Size Thread Plating Type
    #4-40 UNC 18 8 Stainless Steel K Lock Kep
    #6-32 UNC 18 8 Stainless Steel K Lock Kep
    #8-32 UNC 18 8 Stainless Steel K Lock Kep
    #10-24 UNC 18 8 Stainless Steel K Lock Kep
    #10-32 UNF 18 8 Stainless Steel K Lock Kep
    1/4"-20 UNC 18 8 Stainless Steel K Lock Kep
    5/16"-18 UNC 18 8 Stainless Steel K Lock Kep
    3/8"-16 UNC 18 8 Stainless Steel K Lock Kep

    STAINLESS STEEL KEPS NUTS

    K-Lock Nuts with External Tooth Lock Washers - 304 Stainless Steel

    • Hexagonal shape
    • Features an attached free-spinning external tooth (star) lock washer
    • Lock washer helps to prevent unintentional loosening of the assembly
    • 304 Stainless steel helps to prevent corrosion when exposed to fresh water moisture

    Keps K-Lock Nuts 304 Stainless Steel : $0.25 (0.25/ea) to $0.53 (0.53/ea)

    Nut Size
    		 Width Across Flats Overall Thickness Washer Diameter
    #4
    		 1/4" Max 0.098 - Min 0.087
    		 Max 0.286 - Min 0.277
    #6
    		 5/16" Max 0.114 - Min 0.102 Max 0.348 - Min 0.338
    #8
    		 11/32" Max 0.130 - Min 0.117 Max 0.381 - Min 0.370
    #10
    		 3/8" Max 0.130 - Min 0.117 Max 0.406 - Min 0.395
    1/4" 7/16" Max 0.193 - Min 0.178 Max 0.506 - Min 0.494
    5/16" 1/2" Max 0.273 - Min 0.258 Max 0.592 - Min 0.579
    3/8" 9/16" Max 0.385 - Min 0.365 Max 0.665 - Min 0.651

    PRODUCT SPECIFICATIONS
    Color Silver
    Corrosion Resistant Yes
    Material 304 Stainless Steel
    Product Type Keps K Lock Nut
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    ZINC PLATED KEPS K LOCK NUTS

    K-Lock Nuts with External Tooth Lock Washers - Zinc Plated Steel

    • Hexagonal shape
    • Features an attached free-spinning external tooth (star) lock washer
    • Lock washer helps to prevent unintentional loosening of the assembly
    • Zinc plated to add durability and a layer of protection
    • REACH and RoHS compliant
    • UNC and UNF Sizes Available

    Keps K-Lock Nuts Zinc Plated Steel Price in India : $0.25 (0.25/ea) to $0.25 (0.25/ea) per piece

    Nut Size
    		 Width Across Flats Overall Thickness Washer Diameter
    #4
    		 1/4" Max 0.098 - Min 0.087
    		 Max 0.286 - Min 0.277
    #5 5/16" Max 0.114 - Min 0.102 Max 0.348 - Min 0.338
    #6
    		 5/16" Max 0.114 - Min 0.102 Max 0.348 - Min 0.338
    #8
    		 11/32" Max 0.130 - Min 0.117 Max 0.381 - Min 0.370
    #10
    		 3/8" Max 0.130 - Min 0.117 Max 0.406 - Min 0.395
    #12 7/16" Max 0.161 - Min 0.148 Max 0.506 - Min 0.494
    1/4" 7/16" Max 0.193 - Min 0.178 Max 0.506 - Min 0.494
    5/16" 1/2" Max 0.273 - Min 0.258 Max 0.592 - Min 0.579
    3/8" 9/16" Max 0.385 - Min 0.365 Max 0.665 - Min 0.651

    PRODUCT SPECIFICATIONS
    Color Silver
    Finish Zinc Plated
    Material Steel
    Standards Met REACH, RoHS
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Stainless Steel Pin Lock nuts Suppliers in India

    Pin Lock Nut Dimensions

    Size

    Diam.*

    Height

    Hex Nut

    Machine Screw Nut

    Hex Nut

    Jam Nut

    Nylock Nut

    Machine Screw Nut

    0

    -

    5/32

    -

    -

    -

    3/64

    1

    -

    5/32

    -

    -

    -

    3/64

    2

    -

    3/16

    -

    -

    9/64

    1/16

    3

    -

    3/16

    -

    -

    9/64

    1/16

    4

    -

    1/4

    -

    -

    9/64

    3/32

    6

    -

    5/16

    -

    -

    11/64

    7/64

    8

    -

    11/32

    -

    -

    15/64

    1/8

    10

    -

    3/8

    -

    -

    15/64

    1/8

    12

    -

    7/16

    -

    -

    5/16

    5/32

    1/4

    7/16

    7/16

    7/32

    5/32

    5/16

    3/16

    5/16

    1/2

    9/16

    17/64

    3/16

    11/32

    7/32

    3/8

    9/16

    5/8

    21/64

    7/32

    29/64

    1/4

    7/16

    11/16

    -

    3/8

    1/4

    29/64

    -

    1/2

    3/4

    -

    7/16

    5/16

    19/32

    -

    9/16

    7/8

    -

    31/64

    5/16

    41/64

    -

    5/8

    15/16

    -

    35/64

    3/8

    3/4

    -

    3/4

    1-1/8

    -

    41/64

    27/64

    7/8

    -

    7/8

    1-5/16

    -

    3/4

    31/64

    63/64

    -

    1

    1-1/2

    -

    55/64

    35/64

    1-3/64

    -

    * This is the diameter across the flats. It is also the size of wrench to use.

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    Stainless Steel Fasteners Grades Table - Castle Nut Dimensions

    Castle Hex Nuts



    Nominal

    Size or

    Basic Major Diameter

    of Thread

    F

    G

    H

    T

    S

    Runout of Bearing Surface FIM

    Width Across Flats

    Width Across Corners

    Thickness

    Unslotted Thickness

    Width of Slot

    Basic

    Max

    Min

    Max

    Min

    Basic

    Max

    Min

    Max

    Min

    Max

    Min

    Max
    3/8 0.3750 9/16 0.562 0.551 0.650 0.628 21/64 0.337 0.320 0.21 0.19 0.150 0.12 0.018
    7/16 0.4375 11/16 0.688 0.675 0.794 0.768 3/8 0.385 0.365 0.23 0.21 0.15 0.12 0.018
    1/2 0.5000 3/4 0.750 0.736 0.866 0.840 7/16 0.448 0.427 0.29 0.27 0.18 0.15 0.019
    5/8 0.6250 15/16 0.938 0.922 1.083 1.051 35/64 0.559 0.535 0.34 0.32 0.24 0.18 0.021
    3/4 0.7500 1-1/8 1.125 1.088 1.299 1.240 41/64 0.665 0.617 0.40 0.38 0.24 0.18 0.023
    7/8 0.8750 1-5/16 1.312 1.269 1.516 1.447 3/4 0.776 0.724 0.52 0.49 0.24 0.18 0.025
    1 1.0000 1-1/2 1.500 1.450 1.732 1.653 55/64 0.887 0.831 0.59 0.56 0.30 0.24 0.027
    1-1/8 1.1250 1-11/16 1.688 1.631 1.949 1.859 31/32 0.999 0.939 0.64 0.61 0.33 0.24 0.030
    1-1/4 1.2500 1-7/8 1.875 1.812 2.165 2.066 1-1/16 1.094 1.030 0.70 0.67 0.40 0.31 0.033
    1-1/2 1.5000 2-1/4 2.250 2.175 2.598 2.480 1-9/32 1.317 1.245 0.86 0.82 0.46 0.37 0.039

    Stainless Steel Hex lock nuts nylon insert Suppliers in India

    STAINLESS STEEL NYLON INSERT HEX LOCK NUTS

    Lock Nuts with a Nylon Insert in Corrosion Resistant 304 Stainless Steel

    • Hexagonal shape
    • Nylon material creates pressure against the fastener
    • Forces the bottom threads of the fastener against the top threads of the bolt
    • Creates a better hold
    • Locks the nut into place so it will not vibrate loose
    • Retain locking ability up to 250 °F (121 °C)
    • Also referred to as Nylon Lock Nuts or Nyloc Nuts
    Nylon Insert
    Lock Nut Size    		 Width Across Flats Height / Thickness
    #4 0.251" 0.153"
    #6 0.313" 0.188"
    #8 0.345" 0.239"
    #10 0.376" 0.249"
    #12 0.439" 0.328"
    1/4" 0.439" 0.328"
    5/16" 0.502" 0.359"
    3/8" 0.563" 0.468"
    7/16" 0.627" 0.468"
    1/2" 0.752" 0.609"
    9/16"
    		 0.877" 0.656"
    5/8" 0.940" 0.765"
    3/4" 1.064" 0.890"
    7/8" 1.252" 0.999"
    1" 1.44" 1.078"

    PRODUCT SPECIFICATIONS
    Color Silver
    Corrosion Resistant Yes
    Material 304 Stainless Steel
    Product Type Nylon Insert Lock Nut
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Stainless Steel Thin Nuts Suppliers in India

    Thin Nuts Grades and Specification

    Thin Nuts
    Material Nuts Size Length Standard & Specification Thin Nuts Manufacturer
    • Stainless Steel
    • High Tensile
    • Nickel Alloy
    • Alloy Steel
    • Mild Steel
    • Copper
    • Brass
    • Aluminium
    		 M02 to M33 3 mm
    to
    200 mm
    • DIN
    • ISO
    • JIS
    • GB
    • IS
    • BS
    • ASTM
    • GKW
    • Unbrako
    • Kundan
    • APL
    • Sundaram Precision
    • EBY Fastener Etc.
    Thin Nuts Note:-
    Stainless Steel Nuts in Grade:
    • 304
    • 304L
    • 316
    • 316L
    • 309
    • 310
    • 317L
    • 321
    • 347
    • 409
    • 410
    • 420
    • 430
    • 446
    • 202 Etc.

    Thin Nut Dimensions

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    18-8 Stainless Steel Two-Way Reversible Lock Nuts

    Hex Centerlock All Metal Lock Nuts

    Two way Reversible Lock Nuts (also known as Centerlock Nuts) get their name because of their functionality and ability to be used either top-up, or top-down. Two Way Lock Nuts feature indentations on the outside flats of the nut, distorting the internal threads to increase resistance on the mating part. This creates a locking mechanism in the center of the nut.

    Having the locking portion within the hex nut offers several benefits including versatility in application, speed of application (which helps on assembly lines), and application environment versatility. All metal lock nuts can be used in high heat or highly corrosive applications where a nylon insert would not be suitable. Bolts or Screws used with Two Way Reversible Lock Nuts can also be shorter than the nut, because the locing occurs in the center. For this reason, the end of thee bolt or screw does not have to extend beyond the end of the nut.

    STAINLESS STEEL TWO WAY REVERSIBLE LOCK NUTS

    All Metal Centerlock Nuts in 18-8 Stainless Steel

    PRODUCT SPECIFICATIONS
    Color Silver
    Corrosion Resistant Yes
    Material 18-8 Stainless Steel
    Product Type Two Way Reversible Lock Nut
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
    • Can be used either top up or top down
    • Can be identified by indentations on the outside which distorts the internal threads to increase resistance on the mating part
    • Available in UNC coarse or UNF fine thread
    • Also referred to as center lock nuts
    Nut Size
    		 Width Across Flats
    		 Thickness
    1/4"
    		 Max 0.438 - Min 0.428
    		 Max 0.226 - Min 0.212
    5/16"
    		 Max 0.500 - Min 0.489 Max 0.273 - Min 0.258
    3/8"
    		 Max 0.562 - Min 0.551 Max 0.337 - Min 0.320
    1/2"
    		 Max 0.750 - Min 0.736 Max 0.448 - Min 0.427
    5/8"
    		 Max 0.938 - Min 0.922 Max 0.559 - Min 0.535
    3/4" Max 1.125 - Min 1.088
    		 Max 0.665 - Min 0.617

    Stainless Steel Flexloc Nuts Suppliers in India

    Flexloc Nuts Grades and Specification

    Flexloc Nuts Dimension

    flexloc nut dimensions - Full Height Light Hex

    Nominal Size F G H I
    Across Flats Across Corner Height Side Height
    Max Min
    2-56 .251 .243 .268 .155 .050
    3-48 .251 .243 .268 .155 .050
    4-40 .251 .243 .268 .155 .050
    4-48 .251 .243 .268 .155 .050
    5-40 .251 .243 .268 .155 .052
    5-44 .251 .243 .268 .155 .052
    6-32 .313 .305 .339 .180 .075
    6-40 .313 .305 .339 .180 .075
    8-32 .345 .336 .339 .243 .105
    8-36 .345 .336 .374 .243 .105
    10-24 .376 .367 .374 .243 .085
    10-32 .376 .367 .410 .243 .085
    12-24 .439 .430 .410 .290 .122
    12-28 .439 .430 .482 .290 .122
    1/4-20 .439 .430 .482 .290 .122
    1/4-28 .439 .430 .482 .320 .135
    5/16-18 .502 .492 .552 .353 .150
    5/16-24 .502 .492 .552 .353 .150
    3/8-16 .564 .553 .622 .462 .210
    3/8-24 .564 .553 .622 .462 .210
    7/16-14 .627 .616 0696 .462 .210
    7/16-20 .627 .616 .696 .462 .210
    1/2-13 .752 .741 .837 .602 .285
    1/2-20 .752 .741 .837 .602 .285
    9/16-12 .877 .865 .978 .696 .385
    9/16-18 .877 .865 .978 .696 .385
    5/8-11 .940 .928 1.051 .759 .410
    5/8-18 .940 .928 1.051 .759 .410
    3/4-10 1.064 1.052 1.191 .884 .505
    3/4-16 1.064 1.052 1.191 .884 .505
    7/8-9 1.252 1.239 1.403 1.009 .570
    7/8-14 1.252 1.239 1.403 1.009 .570
    1-8 1.440 1.427 1.615 1.134 .635
    1-12 1.440 1.427 1.615 1.134 .635
    1-14 1.440 1.427 1.615 1.134 .635
    1-1/8-12 1.627 1.614 1.826 1.259 0710
    1-1/4-12 1.814 1.801 2.038 1.449 .795
    1-3/8-12 2.002 1.988 2.269 1.509 .815
    1-1/2-12 2.190 2.176 2.484 1.759 .970
    1-3/4-12 2.752 2.737 3.124 2.010 1.124
    1-7/8-12 2.940 2.925 3.338 2.140 1.190
    2-12 3.127 3.112 3.552 2.260 1.260

    Stainless Steel High Nuts Suppliers in India

    High Nut Dimensions

    nuts-type-high-nuts-dimension

    F C H Part Numbers
    Width Across Flats Width Across Corners Thickness Domestic Import
    Basic Max Min Max Min Basic Max Min Black Galvanized Black Galvanized
    1⁄2 3⁄4 0.750 0.736 0.866 0.840 7⁄16 0.448 0.427 16270 16271 11701 11702
    5⁄8 15⁄16 0.938 0.922 1.083 1.051 35⁄64 0.559 0.535 16272 16273 11703 11704
    3⁄4 11⁄8 1.125 1.088 1.299 1.240 41⁄64 0.665 0.617 16274 16275 11705 11706
    7⁄8 15⁄16 1.312 1.269 1.516 1.447 3⁄4 0.776 0.724 16276 16277 11707 11708
    1 11⁄2 1.500 1.450 1.732 1.653 55⁄64 0.887 0.831 16278 16279 11709 11710
    11⁄8 111⁄16 1.688 1.631 1.949 1.859 31⁄32 0.999 0.939 16280 16281 11711 11712
    11⁄4 17⁄8 1.875 1.812 2.165 2.066 11⁄16 1.094 1.030 16282 16283 11713 11714
    13⁄8 21⁄16 2.062 1.994 2.382 2.273 111⁄64 1.206 1.138 - - 11715 11716
    11⁄2 21⁄4 2.250 2.175 2.598 2.480 19⁄32 1.317 1.245 16286 16287 11717 11718

    Dimensions per ASME B18.2.2 1987 (1999)

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    Stainless Steel Imperial Thread Nuts Suppliers in India

    Hexagon Nut and Bolt Sizes - imperial nut thread sizes

    Determine the maximum torque according to bolt (nut) size and grade. Always consult the manufacturers instructions or engineering recommendations when making bolted connections.

    Important: the hexagon sizes shown in the tables should be used as a guide only. Individual sizes should be checked before specifying any equipment.

    Use only Heavy Duty Impact Sockets for power driven torquing equipment, according to ISO2725 and ISO1174, DIN3129 and DIN3121 or ASME-B107.2/1995.

    Imperial Thread Nuts

    IMPERIAL SIZES
    Thread Size D (inch) Hexagon Size S * (inch) Hexagon Size J (inch)
    5/8″ 1 1/16″ 1/2″
    3/4″ 1 1/4″ 5/8″
    7/8″ 1 7/16″ 3/4″
    1″ 1 5/8″ 3/4″
    1 1/8″ 1 13/16″ 7/8″
    1 1/4″ 2″ 7/8″
    1 3/8″ 2 3/16″ 1″
    1 1/2″ 2 3/8″ 1″
    1 5/8″ 2 9/16″ -
    1 3/4″ 2 3/4″ 1 1/4″
    1 7/8″ 2 15/16″ 1 3/8″
    2″ 3 1/8″ 1 5/8″
    2 1/4″ 3 1/2″ 1 3/4″
    2 1/2″ 3 7/8″ 1 7/8″
    2 3/4″ 4 1/4″ 2″
    3″ 4 5/8″ 2 1/4″
    3 1/4″ 5″ 2 1/4″

    There are two systems for measuring threads – metric and imperial (same as SAE or American). Metric thread is measured in millimeters. For example, M10x1 refers to 10 mm diameter and 1 mm thread pitch (M stands for Metric). Imperial thread diameter is measured in fractions of an inch and imperial pitch is measured in threads per inch (TPI). For example, 3/8” x 24NF refers to 3/8” diameter and 24 threads per inch pitch (NF stands for National Fine; other options are NS – National Special and BSF – British Standard Fine).

    Stainless Steel Imperial Thread Nuts.
    Imperial Stainless Steel Hexagon Full Nuts with UNC and UNF Threads.
    Available in A2 / 304 and A4 / 316 Stainless Steel.

    There are a variety of different standards for Imperial threaded items. The most commonly availabe are based on the American Unified Thread Standard (UTS). There are both Coarse (UNC) and Fine (UNF) thread types available, with UNC the most comonly used. When specifying the diameter of a UNC or UNF Nut, it is common practice to specify the threads per inch (tpi) after the diameter. For example 1/4-20 has a 1/4"diameter with 20 tpi (UNC). We hold only a limited stock of Imperial Threaded UNC & UNF items.

    Contact us for any extra requirements and quantities. Price in both Euros and British Pounds. Prices exclude VAT.

    UNC Thread No4-40 UNC, A4 Stainless Steel, Nut, Pack 25 €2.50/£2.20
    No6-32 UNC, A2 Stainless Steel, Nut, Pack 25 €2.50/£2.20
    No8-32 UNC, A2 Stainless Steel, Nut, Pack 25 €2.50/£2.20
    No10-24 UNC, A2 Stainless Steel, Nut, Pack 25 €2.50/£2.20
    1/4"-20 UNC, A2 Stainless Steel, Nut, Pack 25 €2.50/£2.20
    5/16"-18 UNC, A2 Stainless Steel, Nut, Pack 25 €2.50/£2.20
    3/8"-16 UNC, A2 Stainless Steel, Nut, Pack 10 €2.50/£2.20
    7/16"-14 UNC, A2 Stainless Steel, Nut, Pack 4 €2.60/£2.29
    1/2"-13 UNC, A2 Stainless Steel, Nut, Pack 4 €2.50/£2.20
    1/2"-13 UNC, A4 Stainless Steel, Nut, Pack 2 €2.50/£2.20
    3/4"-10 UNC, A4 Stainless Steel, Nut, Pack 1 €2.90/£2.55
    7/8"-9 UNC, A2 Stainless Steel, Nut, Each €3.40/£2.99
    UNF Thread 1/4"-28 UNF, A2 Stainless Steel, Nut, Pack 10 €2.50/£2.20
    5/16"-24 UNF, A2 Stainless Steel, Nut, Pack 10 €2.50/£2.20
    3/8"-24 UNF, A2 Stainless Steel, Nut, Pack 10 €3.75/£3.30

    DIN 982 Nylock Nuts - Stainless Steel Imperial Thread Nylock Nuts Suppliers in India

    Materials: Carbon Steel, Alloy Steel & Stainless steel
    Grade: Class5, Class6, Calss8, Class10
    Size: M3 to M30 (in cold forging), 3/6” to 1” (in cold forging)
    Finish: White Zinc plated, yellow Zinc Plated, Auto Black, Chrome Plating & others as per customer requirement
    Standards:DIN 982, DIN 985, DIN6924, UNC, UNF,BSW & BSF, ISO:7040
    Hardness: Vickers HV5:302(Max), HRC:30(Max)


    Standard specifications of DIN 982 Nylock Nuts are as below:

    Nominal Size Thread Pitch(P) Thickness / Height (h) Width / Across Flat (S) Width Across Corners (e)


    Min.

    Max.

    Min.

    Min.

    Min.
    M5 0.8 6 6.3 7.78 8 8.79
    M6 1 7.70 8 9.78 10 11.05
    M8 1 9.14 9.5 12.73 13 14.38
    M8 1.25 9.14 9.5 12.73 13 14.38
    M10 1 11.14 11.5 16.73 17 18.9
    M10 1.25 11.14 11.5 16.73 17 18.9
    M10 1.5 11.14 11.5 16.73 17 18.9
    M12 1.25 13.64 14 18.67 19 21.1
    M12 1.5 13.64 14 18.67 19 21.1
    M12 1.75 13.64 14 18.67 19 21.1
    M14 1.5 15.30 16 21.67 22 24.49
    M14 2 15.30 16 21.67 22 24.49
    M16 1.5 17.30 18 23.67 24 26.75
    M16 2 17.30 18 23.67 24 26.75
    M18 2.5 19.16 20 26.18 27 29.56
    M20 1.5 20.7 22 29.16 30 32.95
    M20 2.5 20.7 22 29.16 30 32.95
    M22 2.5 23.7 25 31 32 35.03
    M24 3 26.7 28 35 36 39.55

    Standard specification of DIN 985 Nylock Nuts are as below:

    Nominal Size

    Thread Pitch (P)

    Thickness / Height (h)

    Width / Across Flat (s)

    Width Across Corners (e)


    Min.

    Max.

    Min.

    Min.

    Min.
    M3 0.5 3.7 4 5.32 5.5 6.01
    M4 0.7 4.7 5 6.78 7 7.66
    M5 0.8 4.7 5 7.78 8 8.79
    M6 1 5.7 6 9.78 10 11.05
    M8 1 7.64 8 12.73 13 14.38
    M8 1.25 7.64 8 12.73 13 14.38
    M10 1 9.64 10 16.73 17 18.9
    M10 1.25 9.64 10 16.73 17 18.9
    M10 1.5 9.64 10 16.73 17 18.9
    M12 1.25 11.57 12 18.67 19 21.1
    M12 1.5 11.57 12 18.67 19 21.1
    M12 1.75 11.57 12 18.67 19 21.1
    M14 1.5 13.3 14 21.67 22 24.49
    M14 2 13.3 14 21.67 22 24.49
    M16 1.5 15.3 16 23.67 24 26.75
    M16 2 15.3 16 23.67 24 26.75
    M18 2.5 17.66 18 26.18 27 29.56
    M20 1.5 18.7 20 29.16 30 32.95
    M20 2.5 18.7 20 28.16 30 32.95
    M22 2.5 20.7 22 31 32 35.03
    M24 3 22.7 24 35 36 39.55
    M27 3 25.7 27 40 41 45.2
    M27 3.5 25.7 27 40 41 15.2
    M30 2 28.7 30 45 46 50.85
    M30 3.5 28.7 30 45 46 50.85

    Stainless Steel ACME Hex Nuts Suppliers in India

    ACME Hex Nuts Grades and Specification - ACME Hex Nut Dimensions

    ACME Hex Nut Dimensions

    • Finished Pattern Nuts
    • Right Hand Thread
    • Material: Grade 2
    • Material: Grade 2H

    Plain = NFA020—-

    Plain = NFA2H0—-

    Left Hand Thread

    Material: Grade 2

    Material: Grade 2H

    Plain = NFAL020—-

    Plain = NFAL2H0—-
    • Heavy Pattern Nuts
    • Right Hand Thread
    • Material: Grade 2
    • Material: Grade 2H
    		 Plain = NFA020—-Plain = NFA2H0—- Left Hand ThreadMaterial: Grade 2Material: Grade 2H Plain = NFAL020—-Plain = NFAL2H0—-

    acme-hex-nut-dimension

    Nominal Size Common Thread Pitch Other Thread Pitch Other Thread Pitch Other Thread Pitch Other Thread Pitch Other Thread Pitch Other Thread Pitch
    3/8 12
    7/16
    1/2 10
    9/16
    5/8 8 4 6
    3/4 6 5 8 10
    7/8 6 5 8
    1 5 4 6 8 10
    1-1/8 5 4 6
    1-1/4 5 4 6
    1-3/8 4 5 6
    1-1/2 4 5 6
    1-5/8
    1-3/4 4 5 6
    1 7/8
    2 4
    2 1/4 4
    2 1/2 4
    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    Stainless Steel Cage Nuts Suppliers in India | SS cage nuts, stainless steel cage nuts suppliers, m6 stainless steel cage nuts, stainless steel cage nut, m6 stainless steel cage nut

    Cage Nut Dimensions

    cage-nut-dimnesion

    Thread

    F

    Sheet Thickness

    A

    ±0.5

    B

    ±0.5

    C

    ±0.5

    D

    -0.6

    E

    ±0.5

    		 S

    Hole

    G

    ±0.1

    		 Hole No.
    M3 x 0.5

    0.3 – 0.9

    1 – 1.6

    5.2

    5.9

    8.8

    8.8

    4.8

    4.8

    9.3

    9.3

    3.6

    3.6

    0.3

    0.3

    5.3

    5.3

    		 1
    M4 x 0.7 0.3 – 0.9 5.2 8.8 4.8 9.3 3.6 0.3 5.3 1
    M4 x 0.7 1 – 1.6 5.9 8.8 4.8 9.3 3.6 0.3 5.3 1
    M4 x 0.7 0.3 – 1.1 8.5 11.4 7.2 12 6 0.45 8.3 2
    M4 x 0.7 1.2 – 1.6 9 11.4 7.2 12 6 0.45 8.3 2
    M4 x 0.7 0.7 – 1.6 9 12 8 13.2 6.2 0.45 9.5 5
    M4 x 0.7 1.7 – 1.6 10 12 8 13.2 6.2 0.45 9.5 5
    M5 x 0.8 0.3 – 1.1 8.5 11.4 7.2 12 6 0.45 8.3 2
    M5 x 0.8 1.2 – 1.6 9 11.4 7.2 12 6 0.45 8.3 2
    M5 x 0.8 0.7 – 1.6 9 12 8 13.2 6.2 0.45 9.5 5
    M5 x 0.8 1.7 – 2.7 10 12 8 13.2 6.2 0.45 9.5 5
    M6 x 1 0.3 – 1.1 8.5 11.4 7.2 12 6 0.45 8.3 2
    M6 x 1 1.2 – 1.6 9 11.4 7.2 12 6 0.45 8.3 2
    M6 x 1 0.7 – 1.6 9 12 8 13.2 6.2 0.45 9.5 5
    M6 x 1 1.7 – 2.7 10 12 8 13.2 6.2 0.45 9.5 5
    M8 x 1.25 1 – 1.7 10.4 15.5 10.6 16.4 7.8 0.50.5 12.3 3
    M8 x 1.25 1.8 – 3.2 12 15.5 10.6 16.4 7.8 0.5 12.3 3
    M10 x 1.75 1 – 1.7 10.4 15.5 10.6 16.4 7.8 0.5 12.3 3
    M10 x 1.75 1.8 – 3.2 12 15.5 10.6 16.4 7.8 0.50.5 12.3 3
    Material Description
    STL Low Carbon Steel
    SS 18 – 8 Stainless Steel
    Finish Description
    Z – BLK Zinc Black
    Z Zinc Clear
    PLN Plain

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    Stainless Steel Dome Cap Nut Suppliers in India

    Domed Cap Nut Dimensions

    dome-cap-nut-dimension

    d h1 h2 s
    M 4 5,6 9,6 7
    M 5 6 10,5 8
    M 6 7,5 12 10
    M 8 8,9 14 13
    M 10 10,5 18,1 17
    M 12 13,5 22,5 19
    M 16 16,5 27,5 24

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    DOME Nut Sizes - DIN 1587 - Stainless Steel Dome Nuts Suppliers in India

    Description

    • Stainless Steel.
    • Used to create a neat finish on stud ends.
    • Sizes M6 – M16 are available.

    DOME Nut Sizes Available

    Name SKU Dimensions
    S/S DOME NUT M6 DN-M6
    Metric Thread A B
    M6 10 12
    S/S DOME NUT M8 R/H DN-M8
    M8 13 15
    S/S DOME NUT M10 DN-M10
    M10 16 18
    S/S DOME NUT M12 DN-M12
    M12 18 22
    S/S DOME NUT M16 DN-M16
    M16 24 25

    Table according to DIN 1587:

    dimensions in mm
    thread Series 1 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24
    Series 2 - - - M8x1 M10x1 M12x1,5 (M14x1,5) (M16x1,5) (M18x1,5) M20x2 (M22x1,5) M24x2
    Series 3 - - - - M10x1,25 M12x1,25 - - (M18x2) M20x1,5 (M22x2) -
    P Series 1 0,7 0,8 1 1,25 1,5 1,75 2 2 2,5 2,5 2,5 3
    Turning diameter shrinkage min. 4 5 6 8 10 12 14 16 18 20 22 24
    max. 4,6 5,75 6,75 8,75 10,8 13 15,1 17,3 19,5 21,6 23,7 25,9
    head diameter max. 6,5 7,5 9,5 12,5 15 17 20 23 26 28 33 34
    contact surface diameter min. 5,9 6,9 8,9 11,6 14,6 16,6 19,6 22,5 24,9 27,7 31,4 33,3
    e min. Product grade A 7,66 8,79 11,05 14,38 17,77 20,03 23,35 26,75 30,14 33,53 37,72 39,98
    Product grade B 7,5 8,63 10,89 14,2 17,59 19,85 22,78 26,17 29,56 32,95 37,29 39,55
    x max. Series 1 1,4 1,6 2 2,5 3 - - - - - - -
    Series 2 - - - 2 2 - - - - - - -
    Series 3 - - - - 2,5 - - - - - - -
    g2 max. Series 1 - - - - - 6,4 7,3 7,3 9,3 9,3 9,3 10,7
    Series 2 - - - - - 5,6 5,6 5,6 5,6 7,3 5,6 7,3
    Series 3 - - - - - 4,9 - - 7,3 5,6 7,3 -
    height of the nut max. nominal size 8 10 12 15 18 22 25 28 32 34 39 42
    min. P. grade A 7,64 9,64 11,57 14,57 17,57 21,48 24,48 27,48 32,38 33,38 38,38 41,38
    min. P. grade B 7,42 9,42 11,3 14,3 17,3 21,16 24,16 27,16 31 33 38 41
    m max. 3,2 4 5 6,5 88 10 11 13 15 16 18 19
    min. 2,9 3,7 4,7 6,14 7,64 9,64 10,3 12,3 14,3 14,9 16,9 17,7
    minimum wrenching height min. 2,32 2,96 3,76 4,91 6,11 7,71 8,24 9,84 11,44 11,92 13,52 14,16
    r approx. 3,25 3,75 4,75 6,25 7,5 8,5 10 11,5 13 14 16,5 17
    size of the hexagon Max. = nominal size 7 8 10 13 16 18 21 24 27 30 34 36
    min. P. grade A 6,78 7,78 9,78 12,73 15,73 17,73 20,67 23,67 26,67 29,67 33,38 35,38
    min. P. grade B 6,64 7,64 9,64 12,57 15,57 17,57 20,16 23,16 26,16 29,16 33 35
    length of the thread min. 5,26 7,21 7,71 10,65 12,65 15,65 17,65 20,58 24,58 25,58 28,58 30,5
    max. 5,74 7,79 8,29 11,35 13,35 16,35 18,35 21,42 25,42 26,42 29,42 31,5
    w min. 2 2 2 2 2 3 4 4 5 5 5 6
    Weight kg/1000pcs - - 4,66 11 20,1 28,3 - 54,3 95 104 - 216

    Price of Stainless Steel Domed Nuts - Hexagon Domed Cap Nuts, DIN 1587 Price

    Stainless Steel Hexagon Domed Cap Nuts.
    Available in A2 / 304 and A4 /316 Stainless Steel.
    All manufactured to DIN 1587 standard.

    M3, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 100 : €11.80/£10.38
    M4, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 200 : €12.74/£11.21
    M4, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 10 : €2.50/£2.20
    M4, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 100 : €11.30/£9.94
    M5, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 200 : €14.08/£12.39
    M5, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 10 : €2.50/£2.20
    M5, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 100 : €11.00/£9.68
    M6, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 100 : €8.40/£7.39
    M6, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 10 : €2.50/£2.20
    M6, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 50 : €7.40/£6.51
    M8, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 100 : €17.92/£15.77
    M8, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 6 : €2.50/£2.20
    M8, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 50 : €14.23/£12.52
    M8, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 4 : €2.50/£2.20
    M10, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 50 : €18.00/£15.84
    M10, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 3 : €2.50/£2.20
    M10, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 25 : €11.80/£10.38
    M12, A2 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 25 : €13.00/£11.44
    M12, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Pack 10 : €8.75/£7.70
    M16, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Each : €2.35/£2.07
    M20, A4 Stainless Steel, Domed Cap Nut, DIN 1587, Each : €7.99/£7.03

    Stainless Steel Hex Machine Screw Nut Suppliers in India

    STAINLESS STEEL MACHINE SCREW NUTS

    Hex Nuts for Diameters under 1/4" - 304 Stainless Steel

    • Hexagonal Shape
    • Used on Machine Screws or Bolts Diameters smaller than 1/4"
    • Available in fine or coarse thread
    • Smallest Size: #0-80
    • Largest Size: #12-28
    Nut Sizes Flats Thickness
    #0 5/32" 3/64"
    #1 5/32" 3/64"
    #2 3/16" 1/16"
    #3 3/16" 1/16"
    #4 1/4" 3/32"
    #5 5/16" 7/64"
    #6 5/16" 7/64"
    #8 11/32" 1/8"
    #10 3/8" 1/8"
    #12 7/16" 5/32"
    DUCT SPECIFICATIONS
    Application Stainless Steel Machine Screws and Bolts under 1/4" (#14) Diameter
    Color Silver
    Corrosion Resistant Yes
    Material 304 Stainless Steel
    duct Type Hex Machine Screw Nut
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on duction run within IFI Tolerances

    Hex machine screw nuts Price in India, Stainless steel 18-8 Price in India

    Nut size (diameter) is the size bolt that the nut is used with. The same is true of the thread count. Thus a 1/4"-20 nut fits a 1/4"-20 bolt.
    d.
    #    		 Diameter and Thread count Buy Each Buy Bag Bag
    Qty    		 Buy Bulk Bulk
    Qty

    Coarse (standard) thread
      #1-64 $0.07 $4.15 100 $37.10 1000
      #2-56 $0.05 $2.07 100 $18.20 1000
      #3-48 $0.05 $2.14 100 $19.10 1000
      #4-40 $0.05 $2.18 100 $19.20 1000
      #6-32 $0.05 $2.48 100 $21.90 1000
      #8-32 $0.05 $2.79 100 $24.60 1000
      #10-24 $0.06 $3.10 100 $27.70 1000
      #10-32 $0.06 $3.11 100 $27.80 1000
      #12-24 $0.09 $5.61 100 $50.00 1000

    Fine thread
      #0-80 $0.07 $4.19 100 $37.50 1000
      #1-72 $0.07 $4.19 100 $37.50 1000
      #10-32 $0.06 $3.11 100 $27.80 1000

    * 10-32 is a fine thread, but it is listed under coarse thread because it is very common.

    Stainless Steel Sleeve Nuts Suppliers in India

    Sleeve Nut Dimensions

    Full Hex Style

    sleeve-nuts-dimension

    ThreadDiameterD

    WidthAcross FlatsF

    WidthAcross PointsC

    OverallLengthL

    WeightEach(lbs)
    1/2 7/8 1 4 0.53
    5/8 1-1/8 1-5/16 5 1.12
    3/4 1-1/4 1-7/16 5 1.29
    7/8 1-1/2 1-3/4 7 2.67
    1 1-5/8 1-7/8 7 2.97
    1-1/8 1-7/8 2-3/16 7-1/2 4.35
    1-1/4 2 2-5/16 7-1/2 4.75
    1-3/8 2-1/4 2-5/8 8 6.56
    1-1/2 2-3/8 2-3/4 8 7.06
    1-5/8 2-5/8 3-1/16 8-1/2 9.37
    1-3/4 2-3/4 3-3/16 8-1/2 9.97
    1-7/8 3 3-7/16 9 12.82
    2 3-1/4 3-5/8 9 13.5
    2-1/4 3-1/2 4-1/16 9-1/2 17.8
    2-1/2 3-7/8 4-1/2 10 22.9
    2-3/4 4-1/4 4-15/16 10-1/2 28.8
    3 4-5/8 5-5/16 11 35.7
    3-1/4 5 5-3/4 11-1/2 43.5
    3-1/2 5-3/8 6-3/16 12 52.3
    3-3/4 5-3/4 6-5/8 12-1/2 62.2
    4 6-1/8 7-1/16 13 73.0
    4-1/2 6-7/8 7-15/16 14 99.0
    5 7-5/8 8-13/16 15 130.0

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    Stainless Steel Sleeve Nut
    Stainless Steel Square Nuts.
    Available in A2 / 304 Stainless Steel.

    Sleeve nuts have a countersunk head and an internally threaded socket.

    M4 - Thread Depth = 8mm, Sleeve Outer Diameter = 5mm
    M5 - Thread Depth = 9mm, Sleeve Outer Diameter = 6.5mm
    M6 - Thread Depth = 9mm, Sleeve Outer Diameter = 7.5mm
    M8 - Thread Depth = 7mm, Sleeve Outer Diameter = 10mm

    Contact us for any extra requirements and quantities. Price in both Euros and British Pounds. Prices exclude VAT.

    M4, A2 Stainless Steel Sleeve Nuts, Pack 10 €5.80/£5.10
    M5, A2 Stainless Steel Sleeve Nuts, Pack 10 €6.80/£5.98
    M6, A2 Stainless Steel Sleeve Nuts, Pack 10 €9.50/£8.36
    M8, A2 Stainless Steel Sleeve Nuts, Pack 10 €14.50/£12.76

    Stainless Steel Serrated Flange Nut Bolts Suppliers & Serrated Bolts Dimensions Sizes | Metric Hex Flange Nuts Size Dimension Table

    American National Standard Metric Hex Flange Nuts

    ANSI B18.2.4.4M

    Diameter
    and
    Thread Pitch
    Width
    S
    Width
    E
    Diameter
    Dc
    Bearing Circle
    Dia.,
    Dw
    Edge
    Thickness
    C
    Thickness
    M
    Flange Top
    Fillet Radius
    R
    Max
    Min
    Max
    Min
    Max
    Min
    Min
    Max
    Min
    Max
    M5 × 0.8
    8.00
    7.78
    9.24
    8.79
    11.8
    9.8
    1.0
    5.00
    4.70
    0.3
    M6 × 1
    10.00
    9.78
    11.55
    11.05
    14.2
    12.2
    1.1
    6.00
    5.70
    0.4
    M8 × 1.25
    13.00
    12.73
    15.01
    14.38
    17.9
    15.8
    1.2
    8.00
    7.60
    0.5
    M10 × 1.5
    15.00
    14.73
    17.32
    16.64
    21.8
    19.6
    1.5
    10.00
    9.60
    0.6
    M12 × 1.75
    18.00
    17.73
    20.78
    20.03
    26.0
    23.8
    1.8
    12.00
    11.60
    0.7
    M14 × 2
    21.00
    20.67
    24.25
    23.35
    29.9
    27.6
    2.1
    14.00
    13.30
    0.9
    M16 × 2
    24.00
    23.67
    27.71
    26.75
    34.5
    31.9
    2.4
    16.00
    15.30
    1.0
    M20 × 2.5
    30.00
    29.16
    34.64
    32.95
    42.8
    39.9
    3.0
    20.00
    18.90
    1.2

    H K J
    Nut Thickness Wrenching Length Flange Thickness
    Max. Min. Min. Max.
    0.1710.2030.219 0.1560.1870.203 0.100.130.13 0.020.020.03
    0.2360.2360.283 0.2220.2220.268 0.140.140.17 0.040.040.04
    0.3470.3950.458 0.3300.3750.437 0.230.260.31 0.040.040.05
    0.5690.675 0.5450.627 0.400.46 0.050.06

    Full Range of Fastener Products both Imperial & Metric. Dimensions range from M3 to M72 and quantities from 1 to 10,000.

    Stainless Steel Self Clinching Nuts Suppliers in India

    Self Clinching Nut Dimensions

    self-clinching-nuts-dimension

    Thread

    & Pitch

    Material Code

    Minimum

    Sheet Thickness

    S

    Max

    C

    Max

    D

    ± 0.25

    H

    ± 0.25

    Hole Size

    in Panel

    0.08 – 0.0

    Min C/L to

    edge of panel

    M2 x 0.4*

    0

    0.8

    0.77

    4.22

    6.30

    1.5

    4.25

    4.8

    1

    1.0

    0.97

    2

    1.4

    1.38

    M2.5 x 0.45*

    0

    0.8

    0.77

    4.22

    6.30

    1.5

    4.25

    4.8

    1

    1.0

    0.97

    2

    1.4

    1.38

    M3 x 0.5

    0

    0.8

    0.77

    4.22

    6.3

    1.5

    4.25

    4.8

    1

    1.0

    0.97

    2

    1.4

    1.38

    Alternative

    M3 x 0.5*

    0

    0.8

    0.77

    4.73

    7.1

    1.7

    4.75

    5.6

    1

    1.0

    0.97

    2

    1.4

    1.37

    M3.5 x 0.6

    0

    0.8

    0.77

    4.73

    7.1

    1.5

    4.75

    5.6

    1

    1.0

    0.97

    2

    1.4

    1.38

    M4 x 0.7

    0

    0.8

    0.77

    5.38

    7.9

    2.0

    5.4

    6.9

    1

    1.0

    0.97

    2

    1.4

    1.38

    M5 x 0.8

    0

    0.8

    0.77

    6.38

    8.7

    2.0

    6.4

    7.1

    1

    1.0

    0.97

    2

    1.4

    1.38

    M6 x 1.0

    0

    1.2

    1.15

    8.72

    11.05

    4.08

    8.75

    8.6

    1

    1.4

    1.38

    2

    2.3

    2.21

    M8 x 1.25

    1

    1.4

    1.38

    10.47

    12.65

    5.47

    10.5

    9.7

    2

    2.3

    2.21

    M10 x 1.50

    1

    2.3

    2.21

    13.97

    17.35

    7.48

    14.00

    13.5

    2

    3.2

    3.05

    Alternative

    M10 x 1.50*

    1

    2.3

    2.21

    12.65

    14.30

    6.72

    12.70

    11.00

    2

    3.1

    3.05

    3

    6.1

    5.97

    M12 x 1.75*

    1

    3.1

    3.05

    16.90

    20.55

    8.50

    17.00

    16.0

    2

    6.1

    5.97

    Stainless Steel Imperial Nuts - Stainless Steel Heavy Hex Nuts Suppliers in India

    3/8-16 ASTM A194 G8 Stainless Steel Heavy Hex Nut - Made In India
    Wholesale: $5.95 to $7.95 Each

    Heavy Hex Nuts 304 Stainless Steel : 304 STAINLESS STEEL HEAVY HEX NUTS Extra Thick Hex Finish Nuts

    • Comparable to hex nuts but thicker
    • Durable and corrosion resistant grade 304 Stainless Steel
    • UNC Coarse thread sizes
    • Often used when a heavier, stronger and thicker nut is required
    • Provides a thicker finished look

    PRODUCT SPECIFICATIONS
    Color Silver
    Corrosion Resistant Yes
    Material 304 Stainless Steel
    Product Type Heavy Hex Nut
    Thread Direction Right Hand
    Thread Standard UNC
    Thread Type Coarse
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Nut Sizes Flats Height
    1/4"-20 1/2" 15/64"
    5/16"-18 9/16" 19/64"
    3/8"-16 11/16" 23/64"
    1/2"-13 7/8" 31/64"
    5/8"-11 1-1/16" 39/64"
    3/4"-10 1-1/4" 47/64"
    7/8"-9 1-7/16" 55/64"
    1"-8 1-5/8" 63/64"

    Stainless steel Wing Nut long type, Grade 316 or Grade 304

    Short Description: If you are searching for top quality “Stainless steel Wing Nut” Yes, you come to the correct place!

    Material: Stainless Steel Grade 304 or Stainless Steel Grade 316

    Size & Model: Wing Nut M4,M5,M6,M8,M10,M12,M16,M20,M24

    Features: The Wing Nut has extra-excellent performance of corrosion resistance,good yield strength and tensile strength.These nuts are widely used in humidy enviroment and salty water,very long service life…

    Place of origin: India , Sell to worldwide.Accept 1pc as minimium order.

    • The Wing Nut is available for retail and wholesale;
    • Available with SS Grade 304 or Grade 316;
    • Available complete range of sizes and models;
    • Enough stock to have a quick delivery time;
    • The place of origin is in India,when you buy one or a small quantity,please consider freight into the cost.

    316 Stainless Steel Wing Nuts
    Products 10/24 Stainless Steel 316 Wing Nuts
    Pieces: 25
    Product Size: 10/24
    Price: $39.26 for 25 pieces
    That's only $1.5702 per piece

    10/32 Stainless Steel 316 Wing Nuts
    Pieces: 25
    Product Size: 10/32
    Price: $39.26 for 25 pieces
    That's only $1.5702 per piece

    1/4-20 Stainless Steel 316 Wing Nuts
    Pieces: 25
    Product Size: 1/4-20
    Price: $59.39 for 25 pieces
    That's only $2.3757 per piece

    5/16-18 Stainless Steel 316 Wing Nuts
    Pieces: 20
    Product Size: 5/16-18
    Price: $66.77 for 20 pieces
    That's only $3.3386 per piece

    3/8-16 Stainless Steel 316 Wing Nuts
    Pieces: 15
    Product Size: 3/8-16
    Price: $69.54 for 15 pieces
    That's only $4.6358 per piece

    1/2-13 Stainless Steel 316 Wing Nuts
    Pieces: 4
    Product Size: 1/2-13
    Price: $44.51 for 4 pieces
    That's only $11.1276 per piece

    Stainless Steel Wing Nuts DIN 315
    Stainless Steel Wing Nuts.
    Available in A4 /316 Stainless Steel.
    All manufactured to DIN 315 standard.

    Metric Din 315 Wing Nut Dimensions and Weights / DIN 315 Technical Specifications

    Stainless Steel 316 Wing Nuts

    Stainless Steel 316 Wing Nuts

    Stainless Steel 316 Wing Nuts

    Stainless Steel 316 Wing NutsStainless Steel 316 Wing Nuts

    Stainless Steel Square Nuts Suppliers in India

    STAINLESS STEEL SQUARE NUTS

    Four-Sided Square Nuts in Corrosion Resistant Stainless Steel
    • Four sided nut
    • Available in UNC Coarse and UNF Fine thread sizes
    • Greater resistance to loosening
    • More contact with surface of fastener
    • Less likely to loose their shape from constant loosening/tightening
    • Use with a flat washer to avoid damage from sharp edges
    • Square Nuts up to #8 are flat on both sides
    • 1/4" and up are beveled on one side
    • Sizes listed below as: Internal Diameter - Thread Pitch

    Stainless Steel Square Nut Dimensions & Price - Square Nuts 304 Stainless Steel Price in India : $0.25 (0.25/ea) to $13.30 (13.30/ea) per piece

    Size Across Flats
    (Max-Min)    		 Thickness
    (Max-Min)    		 Square Shape
    #4 0.250-0.241 0.098-0.087 Flat
    #6 0.312-0.302 0.114-0.102 Flat & Beveled
    #8 0.344-0.310 0.130-0.117 Beveled
    #10 0.375-0.362 0.130-0.117 Beveled
    1/4" 0.438-0.423 0.193-0.178 Flat & Beveled
    5/16" 0.562-0.545 0.225-0.208 Beveled
    3/8" 0.625-0.607 0.257-0.239 Beveled
    1/2" 0.812-0.788 0.458-0.418 Beveled
    5/8" 1.000-0.969 0.569-0.525 Beveled
    3/4" 1.125-1.088 0.680-0.632 Beveled

    PRODUCT SPECIFICATIONS
    Color Silver
    Corrosion Resistant Yes
    Material 304 Stainless Steel
    Product Type Square Nut
    Thread Direction Right Hand
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    HOT DIP GALVANIZED SQUARE NUTS

    Four-Sided Square Nuts in Hot Dip Galvanized Steel

    • Four sided nut
    • Greater resistance to loosening
    • More contact with surface of fastener
    • Less likely to loose their shape from constant loosening/tightening
    • Use with a flat washer to avoid damage from sharp edges
    • Square Nuts up to #10 are flat on both sides
    • 1/4" and up are beveled on one side
    • Hot Dipped Galvanized products should only be used with fasteners of the same material
    • Sizes listed below as: Internal Diameter - Thread Pitch

    Square Nuts Hot Dipped Galvanized Grade 2 Dimensions & Price in India $0.25 (0.25/ea) to $5.18 (5.18/ea) per piece

    Nut Size Width Across Flats Thickness
    1/4"-20 Max 0.438-Min 0.423 Max 0.235-Min 0.203
    5/16"-18 Max 0.562-Min 0.545 Max 0.283-Min 0.249
    3/8"-16 Max 0.625-Min 0.607 Max 0.346- Min 0.310
    7/16"-14 Max 0.750-Min 0.728 Max 0.394- Min 0.356
    1/2"-13 Max 0.812-Min 0.788 Max 0.458-Min 0.418
    5/8"-11 Max 1.000-Min 0.969 Max 0.569-Min 0.525
    3/4"-10 Max 1.125-Min 1.088 Max 0.680-Min 0.632
    7/8"-9 Max 1.312-Min 1.269 Max 0.792-Min 0.740
    1"-8 Max 1.500-Min 1.450 Max 0.903-Min 0.847
    1-1/8"-7 Max 1.688-Min 1.631 Max 1.030-Min 0.970
    1-1/2"-6 Max 2.250- Min 2.175 Max 1.348-Min 1.276

    PRODUCT SPECIFICATIONS
    Color Gray
    Corrosion Resistant Yes
    Finish Hot Dip Galvanized
    Material Grade 2 Steel
    Product Type Square Nut
    Thread Direction Right Hand
    Thread Standard UNC
    Thread Type Coarse
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    ZINC PLATED SQUARE NUTS

    Four-Sided Square Nuts in Zinc Plated Grade 2 Steel

    • Four sided nut
    • Greater resistance to loosening
    • More contact with surface of fastener
    • Less likely to loose their shape from constant loosening/tightening
    • Use with a flat washer to avoid damage from sharp edges
    • Square Nuts up to #10 are flat on both sides
    • 1/4" and up are beveled on one side
    • CR+3 Zinc Plated Steel
    • Sizes listed below as: Internal Diameter - Thread Pitch

    Square Nut Zinc Plated Dimensions & Square Nuts Zinc Plated Grade 2 Steel Price in India : $0.25 (0.25/ea) to $1.60 (1.60/ea) per piece

    Nut Size Width Across Flats Thickness
    1/4" Max 0.438-Min 0.423 Max 0.235-Min 0.203
    5/16" Max 0.562-Min 0.545 Max 0.283-Min 0.249
    3/8" Max 0.625-Min 0.607 Max 0.346-Min 0.310
    7/16" Max 0.750-Min 0.728 Max 0.394-Min 0.356
    1/2" Max 0.812-Min 0.788 Max 0.458-Min 0.418
    5/8" Max 1.000-Min 0.969 Max 0.569-Min 0.525
    3/4" Max 1.125-Min 1.088 Max 0.680-Min 0.632
    7/8" Max 1.312-Min 1.269 Max 0.792-Min 0.740
    1" Max 1.500-Min 1.450 Max 0.903-Min 0.847

    PRODUCT SPECIFICATIONS
    Color Silver
    Finish Case Hardened (CR+3) Zinc Plated
    Material Grade 2 Steel
    Product Type Square Nut
    Standards Met REACH, RoHS
    Thread Direction Right Hand
    Thread Standard UNC
    Thread Type Coarse
    Tolerance (IFI)Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

    Stainless Steel Prevailing Torque Lock Nut Suppliers in India

    Stainless Steel Prevailing Torque Lock Nut dimensions

    Prevailing torque lock nut size refers to its nominal thread diameter. Typically, sizes range from about 1/4" to about 2".

    All metal prevailing-torque locknut with six flex locking elements.

    Materials: Steel grade 2-5-8, 2H/DH, Monel, brass, bronze, and stainless steel
    Finish: Plain, zinc, and cadmium, as well as other platings and coatings

    If you don’t see what you’re looking for just call one of our team members at +91-22-6659 5285 Or Mail Us inquiry@raajsagarsteels.com. No inquiry is too large or too small, we specialize in locating hard to find items. If you do see what you are looking, we would love to assist you and give you a quote today!

    24 Hrs. Online Whatsapp Number   Contact Person: Mr. Milap Mehta - Cell: +91-9869 532 584

    Popular Searches



    Quick Enquiry
